ISMP.915.35.6.A.02 ISM 915MHz Patch Antenna (35x35x6mm)

ISMP.915.35.6.A.02

ISM 915MHz band
2.51 peak gain on 70x70mm ground plane
35x35x6mm Ceramic patch
Pin Mount
RoHS Compliant

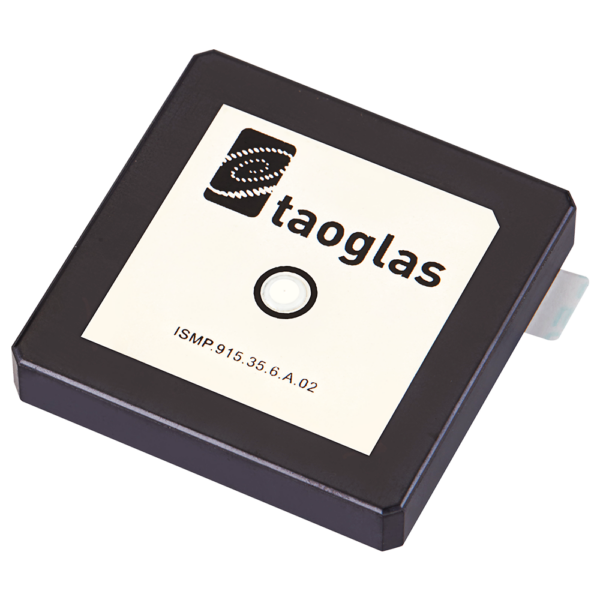

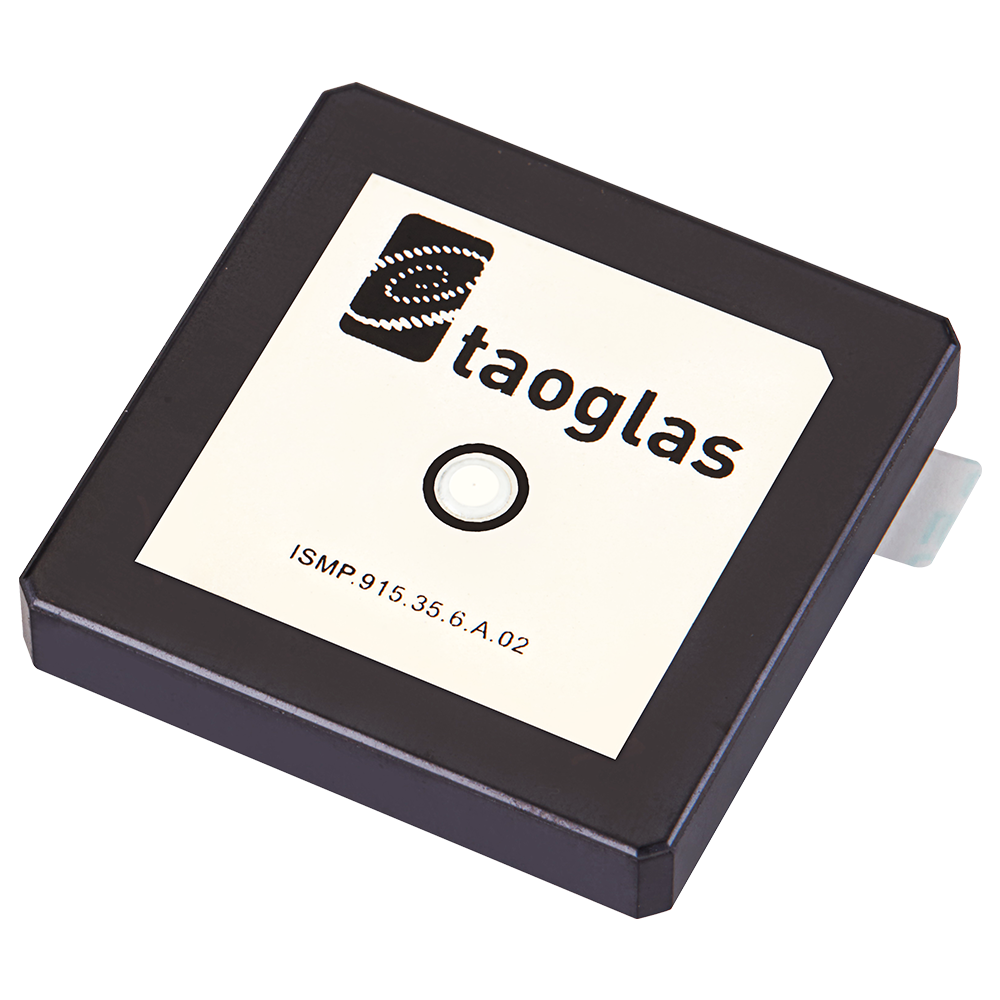

Image ISMP.915.35.6.A.02

ISMP.915.35.6.A.02

ISMP.915.35.6.A.02 ISM 915MHz Patch Antenna (35x35x6mm)

Overview
915 ISM Low-Profile Pin-Mount Ceramic Patch Antenna

ISMP.915 is a low-profile pin-mount ceramic patch antenna operating at 915 MHz. At just 35x35mm, it provides a high-performing antenna solution using minimum board space.

When mounted on a 70x70mm ground plane, ISMP.915 provides an efficiency of over 75% and a peak gain of 2.5 dBi. It is also right-hand circularly polarized, with an excellent axial ratio of less than 3 dB, providing maximum link reliability. These characteristics make it a perfect choice for compact fixed wireless applications operating on the 915 MHz ISM band, including remote instrumentation and RFID applications. It also provides excellent performance on Low-Power Wide-Area Networks (LPWAN) operating at 915 MHz, such as LoRa and Sigfox, allowing users to take advantage of the low-power, long-range communications offered by these networks.

ISMP.915 can be custom-tuned for specific device environments, subject to NRE and MOQ. Contact your regional Taoglas sales office for these services as well as additional support with device integration.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, ISM/LoRA
Mechanical Style Patch
Gain (Max) 2
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Pin
Polarity RHCP
Frequency Range 915MHz
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
Length (mm) 35
Width (mm) 35
Height (mm) 6
Weight (g) 34.3
