MA910 Guardian 2-in-1 Adhesive Mount Wi-Fi MIMO(1&2) with Wi-Fi 6 Capability

MA910.A.CG.001

Low-Profile Adhesive Mount Housing – Mounts Flush to Wall
2* Wi-Fi (including Wi-Fi 6) MIMO 2.4GHz/5.8/7.1GHz
IP67 Waterproof Resistant Enclosure
Cable: 3m TGC-200
Connectors: RP SMA(M)ST
Dimensions: 146 * 134 * 20 mm
RoHS & Reach Compliant
Also available in White

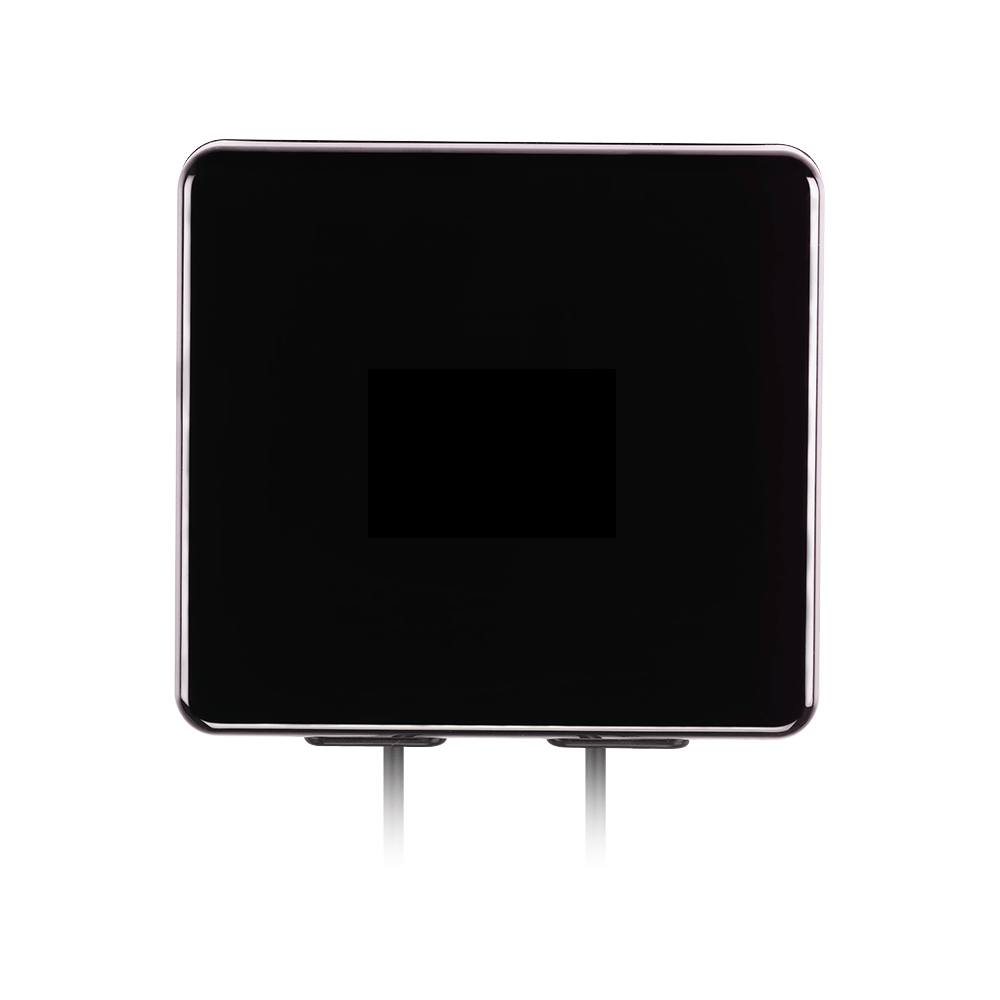

Image MA910.A.CG.001

MA910.A.CG.001

MA910 Guardian 2-in-1 Adhesive Mount Wi-Fi MIMO(1&2) with Wi-Fi 6 Capability

Overview

MA910 Guardian 2-in-1 Adhesive Mount Wi-Fi MIMO(1&2) with Wi-Fi 6 Capability

The MA910 Guardian is a low-profile 2-in-1 adhesive mount Wi-Fi (with Wi-Fi 6 included) MIMO external antenna. As part of the first series of panel antenna worldwide designed for IoT gateway and router devices, it belongs to a new generation of combination antenna. The antenna functions at all Wi-Fi frequencies (2.4-2.5GHz, 5-7.125GHz) meaning it is a future-proof solution for any devices

The MA910 Guardian is ideal for Wi-Fi applications requiring the increased data throughput and range provided by MIMO technology, all in a convenient and compact form factor. It is designed with high efficiency and gain as well as high isolation between the antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. With its heavy-duty, fully IP67 casing, the MA910 Guardian can withstand a range of environments.

All these factors make the MA910 Guardian antenna an excellent choice for use by RF professionals in:
– IoT Gateway and Routers
– HD Video Streaming
– Transportation
– Remote monitoring applications

The standard MA910 Guardian antenna comes with 3 meter, low loss TGC-200 coaxial cable. Customized cables and connector versions are also available. Also available in white, contact your regional Taoglas customer support team for further information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type RP-SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 2.4 / 5.8GHz
Connector Polarity Reverse
Cable Length (mm) 3000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 2.99
Length (mm) 146
Width (mm) 134
Height (mm) 20
Weight (g) 455
