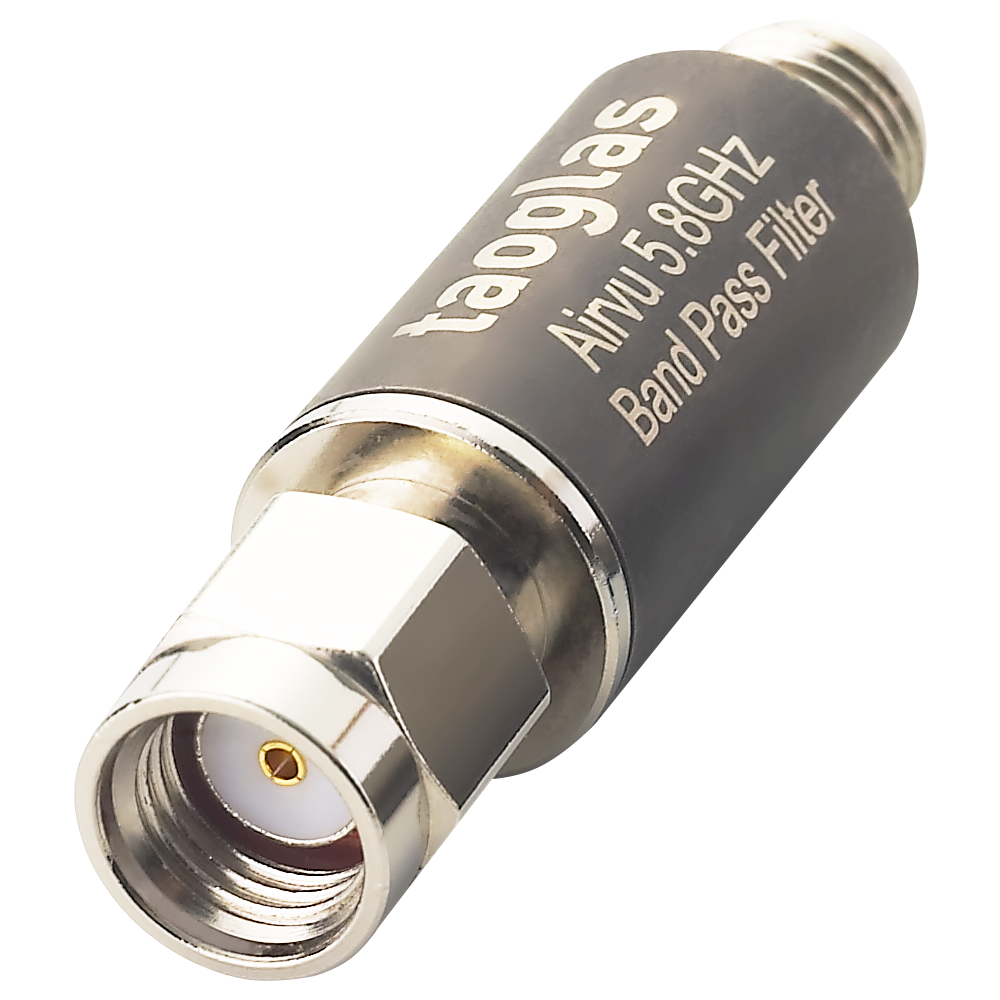

Airvu BPF.58 5.8GHz Band Pass Filter

BPF.58.01

Airvu 5.8GHz Band Pass Filter
Frequency Range: 5480-5850MHz
Insertion Loss: RP-SMA(M) Plug to RP-SMA(F) Jack Interface
Dimensions: 35*10mm

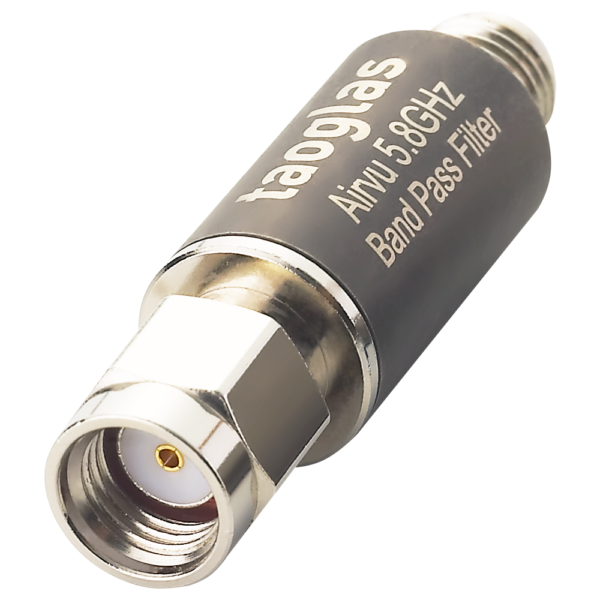

Image BPF.58.01

BPF.58.01

Airvu BPF.58 5.8GHz Band Pass Filter

Overview

The Airvu BPF.58 5.8GHz Band Pass Filter is placed on the end of the antenna port to eliminate or reduce radio interference problems on UAVs.

It does this in two ways
  1. It reduces out of band noise entering the receiver and causing effects such as reduction of control range
  2. It reduces the antenna transmissions of out of band noise affecting other circuitry on your UAV (such as disrupting the GPS receiver leading to loss of fix, or the control signal at 2.4GHz)

The ceramic filter inside the BPF.58 has better insertion loss and stop band performance than competing LTCC or lumped element filters, while also having good rejection at band edges. It uses a standard RP SMA(M) Plug to RP SMA(F) Jack interface, as most antennas at 5.8GHz have a RP SMA(M) connector as standard. This filter is designed to be easily screwed onto this standard antenna SMA connector.

Contact your regional Taoglas office for support (Note There can still be noise issues that a filter cannot solve). Such as noise that can be radiated directly from the transmitter board and any wiring. Also, no filter can protect from in-band noise within the assigned operating frequency of the receiver. Always try to place noisy components as far away from a receiver and antenna as possible.

Technical Specification
Name Value
Series Airvu
Frequency 5150-5900MHz
Bandwidth 370MHz
Filter Type Band Pass
Impedance 50
Insertion Loss <1.3
Mounting Type Connector
Length (mm) 35
Width (mm) 10
Height (mm) 10
Weight (g) n/a
