Anam PA.25A 35*6*5mm 3G/2G SMD PIFA Antenna

PA.25A

Compact High Efficiency Antenna
Surface Mount Device
Dimensions: 35*5*6mm
Manufactured in an IATF16949 Approved Facility
RoHS & REACH Compliant

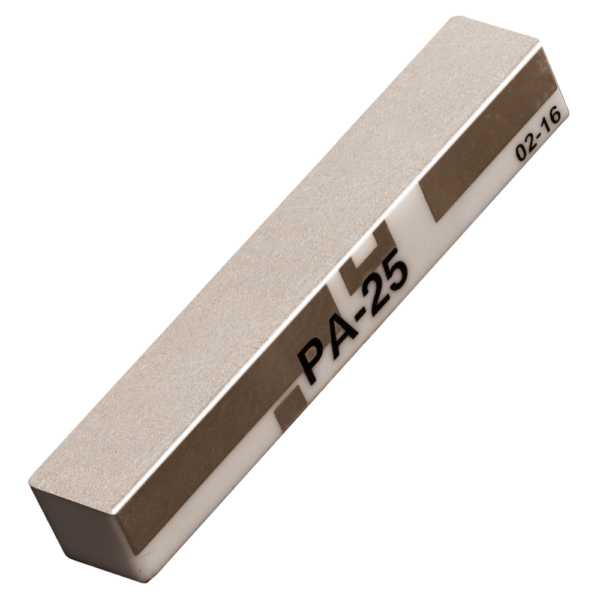

Image PA.25A

PA.25A

Anam PA.25A 35*6*5mm 3G/2G SMD PIFA Antenna

Overview

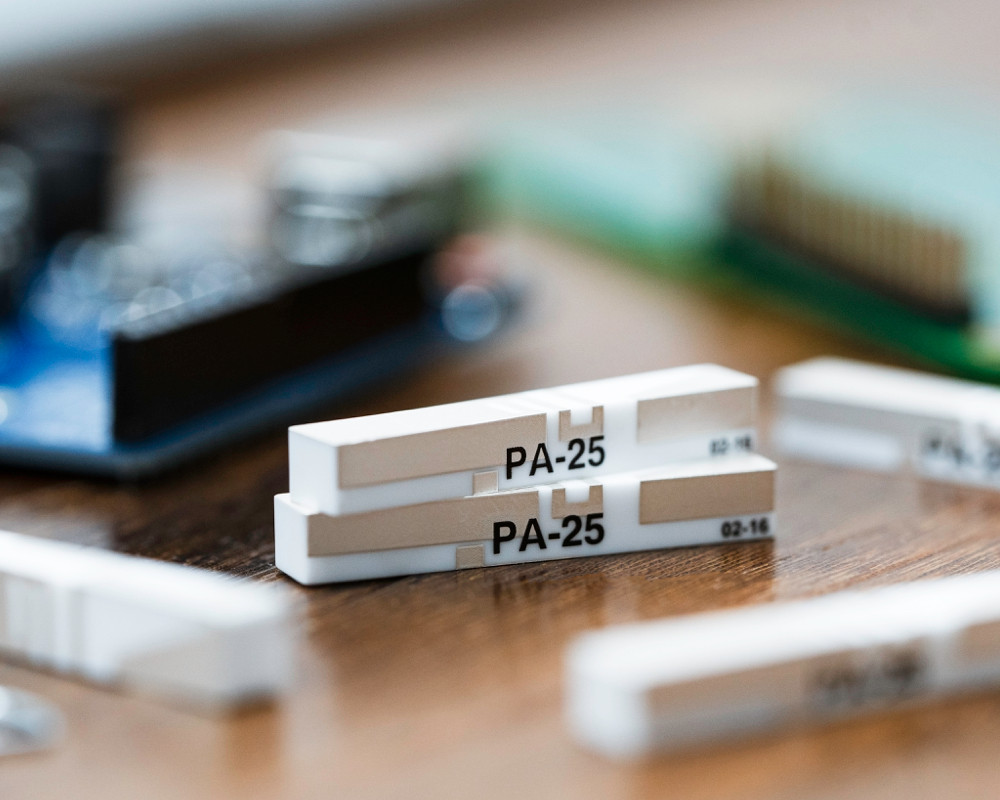

The PA.25A is ceramic cellular antenna designed for in-device mounting. The PA.25A is mounted through SMT process and can be used in varying applications based on it’s small form factor of just 35*6*5mm.

Typical Applications Include:
– Body Worn Devices
– Hand-held IoT Devices
– Remote Monitoring

This ceramic multiband cellular antenna uses high grade ceramics which have been developed in Taoglas through years of expertise in delivering the right materials for high performance antennas. Taoglas, through constant research and development have designed a small form factor high efficiency antenna for use across cellular bands from 800MHz to 2170MHz.

The PA.25A is manufactured and tested in our IATF16949 approved facility.

The PA.25 is a unique SMT solution which is delivered on tape and reel. For very detailed integration information additional to this specification please download our comprehensive PA.25 integration application note from our website. For further information, please contact your regional Taoglas customer support team.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Cellular
Mechanical Style PCB
Gain (Max) 3.51
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Connector Body Style Straight
Polarity Linear
Frequency Range 824 - 2170MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tape & Reel
VSWR 0
Length (mm) 35
Width (mm) 6
Height (mm) 5
Weight (g) 3
