Apex TG.30 5G/4G Terminal Antenna, SMA (M)

TG.30.8111

Apex – Wideband 5G/4G LTE Antenna for Cellular modules with Assisted GPS
698~960/1575.42/1710~2700MHz
Typical 70%+ Efficiency and 3dBi+ Peak Gain
NO GROUND PLANE REQUIRED
Straight termination with SMA(M) Connector
Dimensions: 171*49mm
FirstNet Ready
CE Certified

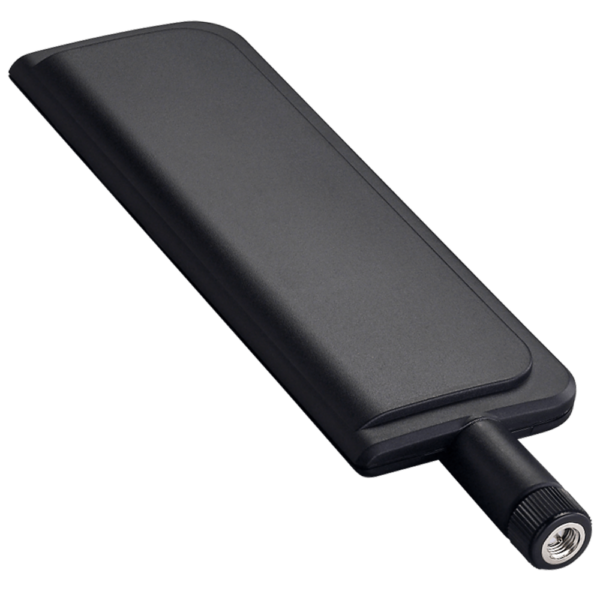

Image TG.30.8111

TG.30.8111

Apex TG.30 5G/4G Terminal Antenna, SMA (M)

Overview
Wideband 5G LTE Antenna for Cellular Modules with Assisted GPS

The Apex Black Straight TG.30 Dipole LTE Antenna – is primarily designed for use with 5G/4G modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (5G/4G/3G/2G) bands worldwide for access points, terminals and routers.

This antenna is a ground plane independent antenna with an SMA (M) connector. The Apex exhibits high efficiency across the ultra-wideband and is backward compatible with 2G and 3G cellular applications such as GSM, LTE, UMTS, Wi-Fi and even has GPS included for Assisted GPS and/or E911 applications. With very high efficiency on every cellular band globally it is an ideal solution for any device requiring high, reliable performance. It is also guaranteed to meet any type of approval or carrier certification requirements from an RF standpoint. It is an omnidirectional antenna and the radiation patterns display this and are stable across all bands.

It has a quality robust IP67 UV resistant housing (SMA connector is IP65) for use with wireless terminals.

This patented antenna is available in white and black versions, with hinged and right-angled connectors.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain (Max) 3
Length (mm) 49
Width (mm) 10
Height (mm) 171
Weight (g) 45.5
