Barracuda OMB.450.B06F21 450-470MHz 6dBi Omnidirectional Outdoor Antenna

OMB.450.B06F21

Omni-Directional Radiation Pattern
Collinear
6dBi peak gain
Robust design for all-weather operation
IP65 waterproof
Length: 1474mm, Weight: 1010g
N Type Female connector
Wall mount bracket included
RoHS compliant

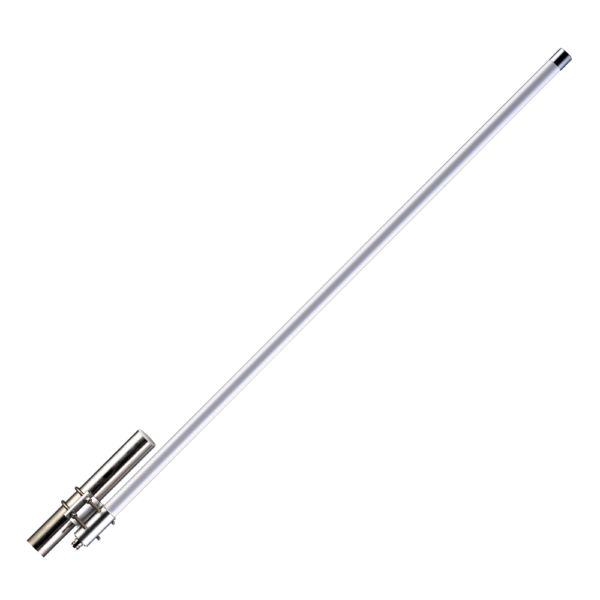

Image OMB.450.B06F21

OMB.450.B06F21

Barracuda OMB.450.B06F21 450-470MHz 6dBi Omnidirectional Outdoor Antenna

Overview

The OMB.450.B06F21 is a 6dBi LTE BAND 31 / CDMA / ISM 450MHz to 470MHz fiberglass omnidirectional outdoor antenna. The antenna is designed for applications such as metering, industrial/environmental monitoring, remote asset monitoring, and mesh network applications. The omnidirectional antenna radiates uniformly in the azimuth. The high peak gain collinear dipole array design provides the best performance because the antenna gives maximum coverage range in the horizontal plane over 360 degrees, thus minimizing the number of routers, base stations or nodes needed for a network.

The UV resistant fiberglass housing enables the OMB antenna to be weathered in all kinds of harsh environments, making it more robust and safer than traditional whip antennas. It can be connected directly to the access point or telemetry unit or can be mounted on the wall/device surface via the N-type connector. The connector is customizable subject to MOQ. A smaller 3dBi model is also available, the OMB.450.B03F21.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Vertical
Frequency Range 450-470MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tube, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 10
Length (mm) 26
Width (mm) 26
Height (mm) 1473
Weight (g) 1010
