Barracuda OMB.6912.03F21 4G/3G/2G 4dBi Omnidirectional Outdoor Antenna

OMB.6912.03F21

Omni-Directional Radiation Pattern
4dBi Peak gain
Covers all 4G/3G/2G bands
Robust design for all weather operation
IP65 waterproof
320mm in length, 150g weight
N Type Female connector
Mounting bracket Included
RoHS compliant

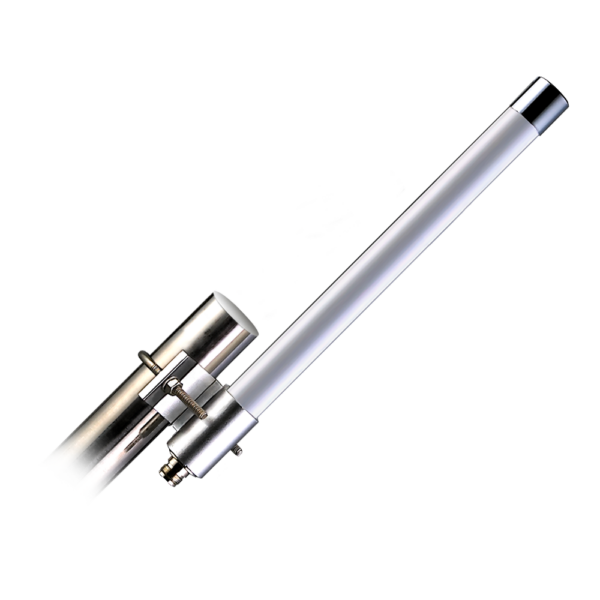

Image OMB.6912.03F21

OMB.6912.03F21

Barracuda OMB.6912.03F21 4G/3G/2G 4dBi Omnidirectional Outdoor Antenna

Overview
Indoor/Outdoor Omnidirectional Antenna

The OMB.6912.03F21 is a 4G fiberglass omnidirectional outdoor antenna, operating in the worldwide 4G 698-960 and 1710-2700MHz bands and has 4dBi maximum gain. The collinear dipole array antenna is designed especially for outdoor applications connecting via 4G routers and modules. Its compact dimensions of 320mm in length and 70mm diameter allow it to be mounted conveniently and unobtrusively in any location, compared to traditional fiberglass omni antennas which are twice the size.

The omnidirectional antenna radiates uniformly in the azimuth providing long-distance coverage, thus minimizing the number of nodes needed for a radio network.
The UV resistant fiberglass housing enables this OMB series antenna to be used in harsh weather environments, making it more robust and safer than traditional whip antennas. The main band of operation is between 698MHz to 2170MHz; however, it can also be used for shorter range of 2600MHz applications.

The antenna can be mounted on a wall via the convenient pre-installed mounting bracket or on a pole with the additional supplied U-bolt.

An industry-standard N-type Female connector is used. The connector can be customized upon request subject to MOQ. Contact your regional Taoglas sales office for details.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Vertical
Frequency Range 824 - 2170MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tube, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 8
Length (mm) 26
Width (mm) 26
Height (mm) 319
Weight (g) 150
