Barracuda OMB.8912.03F21 3G/2G 3dBi Omnidirectional Outdoor Antenna

OMB.8912.03F21

GSM850/GSM900/DCS/PCS/WCDMA I 850/900/1800/1900/2100 MHz
Omni-Directional Radiation Pattern
Collinear
4.89 dBi Peak Gain
Robust Design for all Weather operation IP65
Waterproof
Length: 298mm, Weight: 350g
Connector: N-type Female Wall/Pole Mount
Bracket Included
RoHS compliant

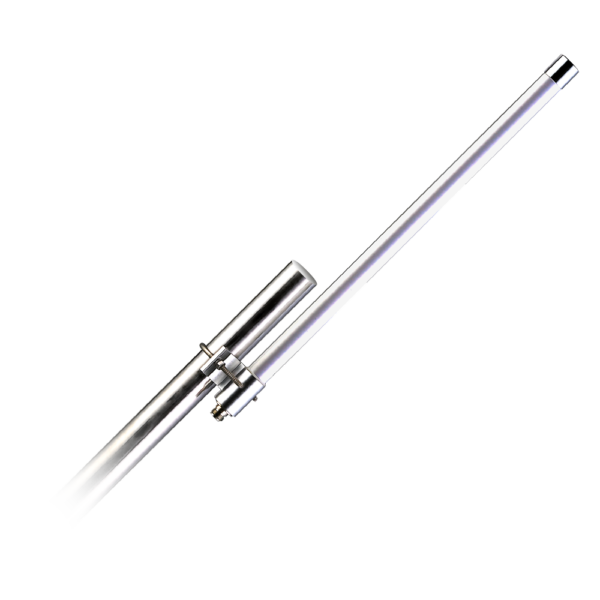

Image OMB.8912.03F21

OMB.8912.03F21

Barracuda OMB.8912.03F21 3G/2G 3dBi Omnidirectional Outdoor Antenna

Overview

The Penta-band cellular Barracuda Outdoor antenna is designed to have long-distance coverage. Omni-directional high gain across all bands ensures constant reception and transmission. The UV resistant coating with fiberglass housing makes this antenna suitable to be mounted in a robust outdoor environment, pole-mounting and the wall-mounting bracket is included. The antenna finds its usage in boosting cellular coverage in remote areas or difficult environments indoors and outdoors.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Vertical
Frequency Range 824 - 2170MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tube, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 8
Length (mm) 26
Width (mm) 26
Height (mm) 289
Weight (g) 350
