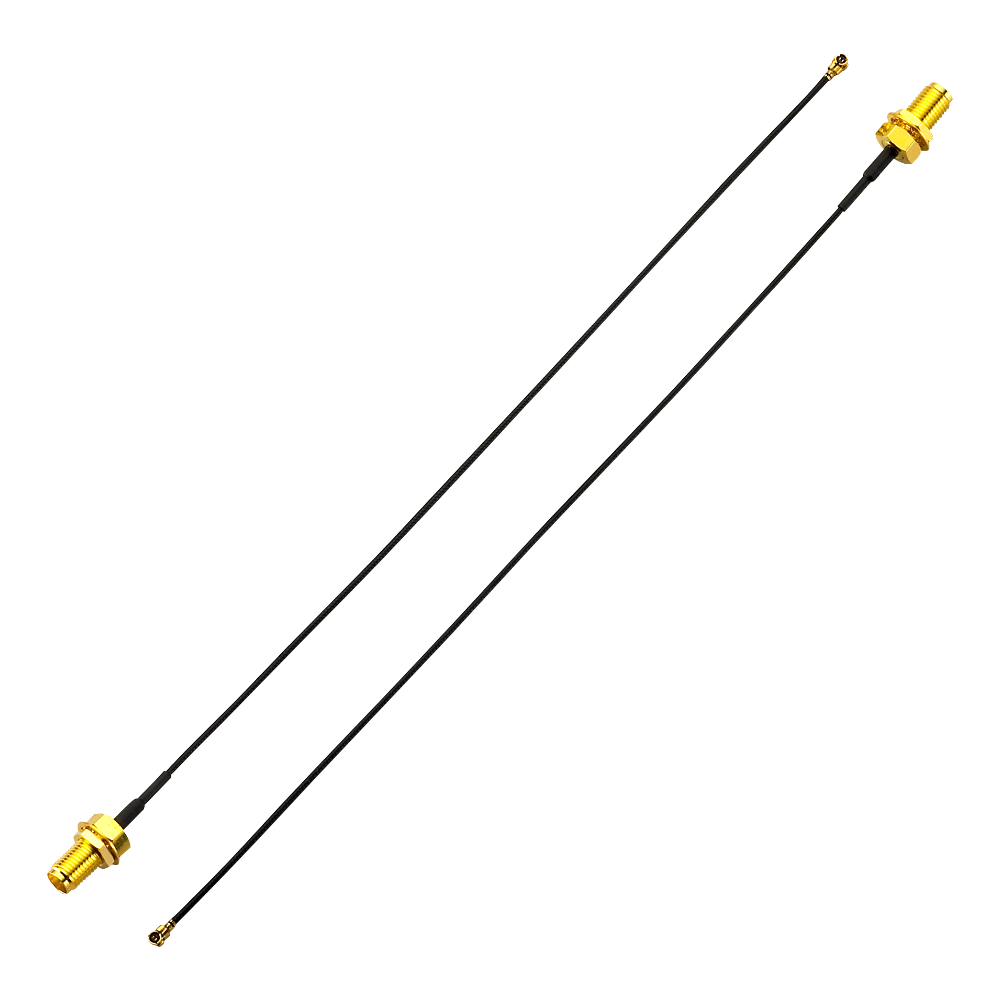

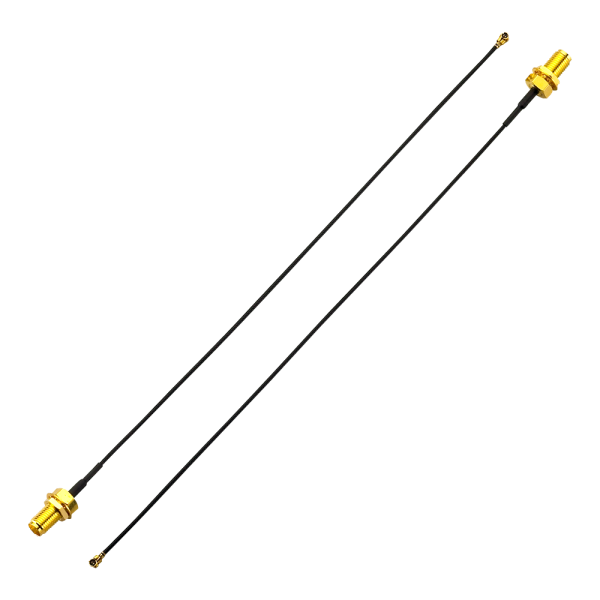

CAB.720 Hirose U.FL to 200mm 1.32 to SMA(F)BKST
CAB.720SMA(F) Bulkhead Straight to
Hirose U.FL
Ø1.32 Cable – 200mm
Orientation: Straight-R/A
CAB.720
CAB.720 Hirose U.FL to 200mm 1.32 to SMA(F)BKST
Technical Specification
| Name | Value |
|---|---|
| Cable | 1.32 Coax |
| Connector 1 | Hirose U.FL |
| Connector 1 Orientation | Right Angle |
| Connector 1 Polarity | Normal |
| Connector 1 Gender | M |
| Connector 1 Material | Gold |
| Connector 2 | SMA BK |
| Connector 2 Gender | F |
| Connector 2 Orientation | Straight |
| Connector 2 Polarity | Normal |
| Connector 2 Material | Gold |
| Length (mm) | 200 |
| Width (mm) | n/a |
| Height (mm) | n/a |
| Weight (g) | n/a |
