CBD02.07.0100C 5.8GHz Cable Dipole Antenna, 100mm Ø1.37, I-PEX MHF® I (U.FL)

CBD02.07.0100C

5.15-5.85 GHz Wi-Fi Antenna
Lightweight and Thin for UAV Applications
Impressive efficiency (>70%) and Peak Gain (3.9dBi)
100mm Ø1.37mm Micro-Coaxial Cable with I-PEX MHF® I (U.FL comp) Connector
Dims: 25mm (Maximum Diameter: 4.7mm)
RoHS Compliant

Image CBD02.07.0100C

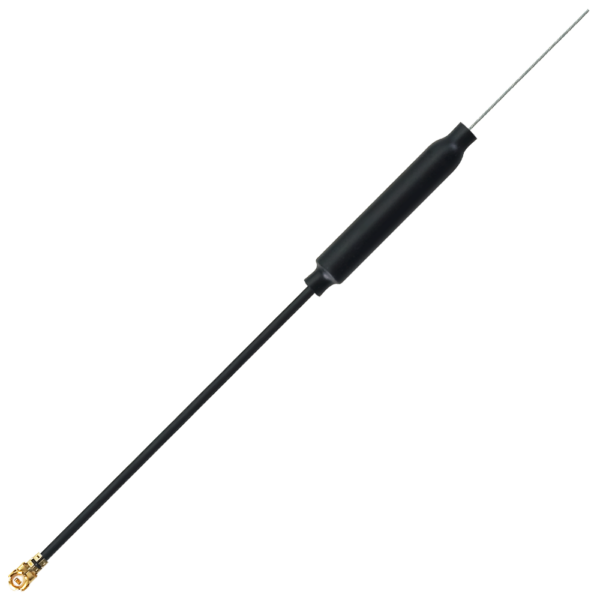

CBD02.07.0100C

CBD02.07.0100C 5.8GHz Cable Dipole Antenna, 100mm Ø1.37, I-PEX MHF® I (U.FL)

Overview

The CBD.02 5.8 GHz antenna is a coax cable dipole antenna with omnidirectional radiation pattern which has high efficiency of over 70% from 5150 to 5850 MHz. These attributes make it ideal for use on 5.8GHz UAV applications for FPV (First-Person View) and contribute to a more reliable link. The CBD02 antenna comes in a small form factor which is very lightweight and easy to attach. The standard product comes with 100mm low loss 1.37mm coaxial cable and IPEX MHFI® (U.FL) connector. The cable routes conveniently directly out of the bottom of the antenna, reducing the volume the antenna takes up in the device to an absolute minimum compared to other designs.

The Cable Dipole Antenna is the ideal antenna solution for fitting into narrow spaces and still maintaining high performance. Due to the potential for detuning or nearby interference in a device environment, Taoglas recommends that you contact us at our regional sales office for integration support, testing, and optimization of the antenna in your device before going to production. Customized cable and connector versions available, subject to minimum order quantities.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Wi-Fi/Bluetooth
Mechanical Style Cable Dipole
Gain (Max) 2
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Cable Mount
Termination Style Connector
Antenna Connector Type I-PEX MHFI
Cable Type 1.37 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 5000-5800MHz
Connector Polarity Normal
Cable Length (mm) 100
Packaging Tray, Carton
VSWR 0
Wi-Fi Bands 5.8GHz
Length (mm) 4.7
Width (mm) 4.7
Height (mm) 157
Weight (g) 1.01
