This convenient “peel and stick” flexible polymer antenna is designed for applications that require high positioning accuracy using GPS, GLONASS, Galileo and even BeiDou functions on modern-day GNSS systems. The antenna is designed to be mounted directly to plastic (e.g. ABS enclosure of a wireless device) and has been designed in a way that makes it extremely resistant to detuning effects caused by the device environment.

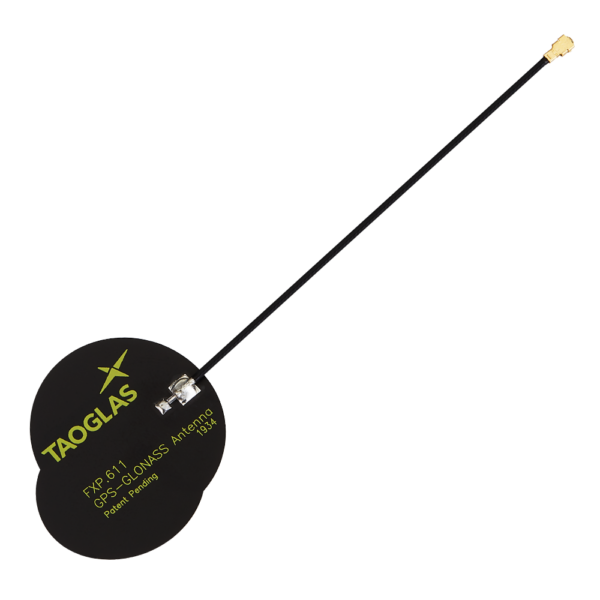

Cloud FXP611 GPS/GLONASS/Galileo/BeiDou Flexible PCB 38*37*0.15mm, 92mm Ø1.37, I-PEX MHF® I (U.FL)
FXP611.07.0092CThe Cloud GNSS Flexible Loop Antenna
GPS/GLONASS/GALILEO/BeiDou
1559-1610MHz
3dBi Peak Gain – 80% Efficiency
Peel and Stick
92mm 1.37OD Cable and I-PEX MHF® I (U.FL comp)
Dimensions: 38*37*0.15mm
*Patent Pending*
FXP611.07.0092C
Cloud FXP611 GPS/GLONASS/Galileo/BeiDou Flexible PCB 38*37*0.15mm, 92mm Ø1.37, I-PEX MHF® I (U.FL)
Overview
Technical Specification
| Name | Value |
|---|---|
| RoHS | Yes |
| Antenna Type | Embedded Antennas, GNSS |
| Mechanical Style | Flex PCB |
| Gain (Max) | 3 |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | I-PEX MHFI |
| Cable Type | 1.37 Coax |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 1559MHz - 1610MHz |
| Connector Polarity | None |
| Cable Length (mm) | 92 |
| Packaging | Carton |
| VSWR | 0 |
| GNSS Type | Passive GNSS |
| GNSS Bands | L1 |
| Length (mm) | 38 |
| Width (mm) | 37 |
| Height (mm) | 0.15 |
| Weight (g) | 0.9 |
