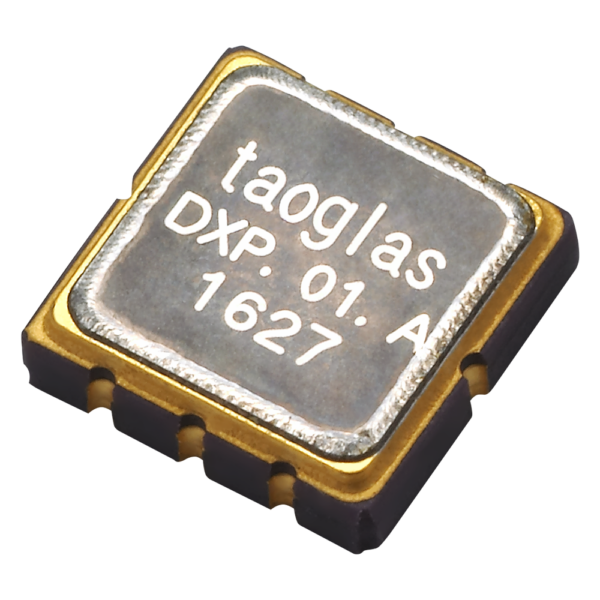

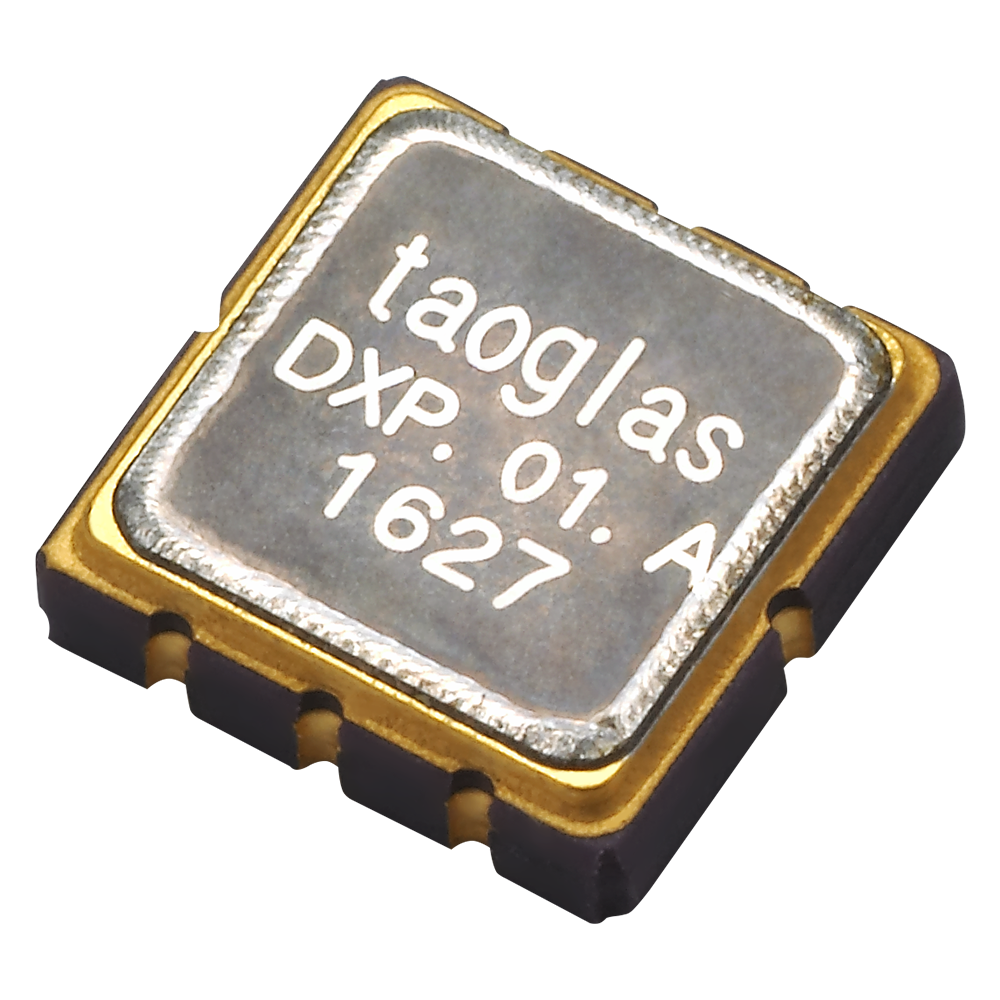

DXP.01.A – SMD L1/L2 SAW Diplexer for GPS L1/GALILEO, GLONASS L2 & BeiDou B2 5*5*1.7mm

DXP.01.A

L2 1227 / L1 1575.42MHz SAW Diplexer
SMD Surface Mount
Compact Size 5*5*1.7mm
Low Insertion Loss In band
High Isolation Port to Port
RoHS and REACH Compliant

Image DXP.01.A

DXP.01.A

DXP.01.A – SMD L1/L2 SAW Diplexer for GPS L1/GALILEO, GLONASS L2 & BeiDou B2 5*5*1.7mm

Overview

The Taoglas DXP.01.A is a diplexer for GNSS L1, L2. This advanced compact SAW diplexer is for use in any navigation system application using the GPS/GALILEO L1, GLONASS L2 and BeiDou B2 bands. The diplexer is designed to function as both a bandpass filter for each band and to either split one path into two or to combine both bands back into one RF feed.

For example, a customer who wanted to use passive dual-band antenna elements would need to implement a diplexer in some cases to split both bands out into separate paths. It is also designed to isolate and reject any unwanted GPS/GALILEO signals from getting to the application port. It is housed in a compact 5*5*1.7mm over-molded laminate package and is easy to integrate using SMT process mounting directly onto the target PCB. Contact your regional Taoglas sales office for more information or support.

Technical Specification
Name Value
Series DXP
Frequency 1166-1610MHz
Bandwidth None
Filter Type Diplexer
Impedance 50
Insertion Loss 3.7
Mounting Type SMD
Length (mm) 5
Width (mm) 5
Height (mm) 1.7
Weight (g) n/a
