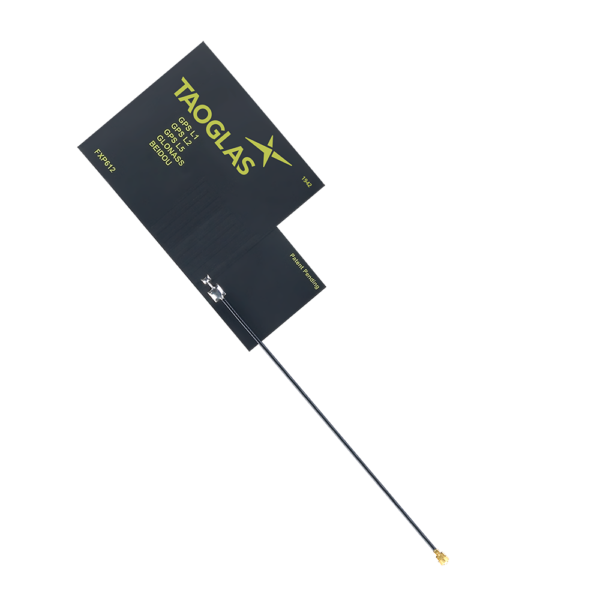

FXP612 Flexible Polymer Multi-band GNSS GPS L1, L2, L5/ Galileo / GLONASS/ BeiDou Antenna 76*47*0.15mm, 95mm 1.13, I-PEX MHF® I (U.FL)

FXP612.07.0095A

GPS L1: 1563-1587 MHz
GPS L2: 1215-1240 MHz
GPS L5: 1164-1189 MHz
GALILEO: 1563-1587 MHz
GLONASS G1: 1593-1610 MHz
BeiDou: 1559-1591 MHz
Dimensions: 76*47*0.15mm
I-PEX MHF® I (U.FL comp)
*Patent Pending*
RoHS and REACH Compliant

Image FXP612.07.0095A

FXP612.07.0095A

FXP612 Flexible Polymer Multi-band GNSS GPS L1, L2, L5/ Galileo / GLONASS/ BeiDou Antenna 76*47*0.15mm, 95mm 1.13, I-PEX MHF® I (U.FL)

Overview

This antenna features the highest efficiency L1,L2,L5 band GNSS Antenna on the market today. Not only does it have an incredible efficiency of 90% in GPS/GALILEO/GLONASS/BeiDou L1 bands, but also 70% efficiency in the GPS L2 and L5 bands.

Typical applications can include Telematics, Fleet Management, Positioning, Healthcare, Transportation, Agriculture, Automotive. Less obvious uses are in cases where an IoT device may move but doesn’t move often, adding movement sensors can let you shut-off that receiver to save power once you have acquired a fix on the signal. GNSS can also be for use cases that need to record the time stamp of the movement and ensure that the device is reporting time accurately. With this antenna, you could also report altitude as well as location and time and can include sensor data like barometric pressure for weather systems.

The FXP612 is an ideal choice for any device maker that needs a solution that can work on L1 and L2 today, but also for years to come with the new L2 and L5 GPS civilian signal bands coming on stream in 2020 and beyond, and which would like to keep manufacturing costs down over the lifetime of a product.

Connectors and cables are customizable. For more information download the datasheet.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Flex PCB
Gain (Max) 3
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 1559MHz - 1610MHz
Connector Polarity Normal
Cable Length (mm) 95
Packaging Carton
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1/L2/L5
Length (mm) 76
Width (mm) 47
Height (mm) 0.15
Weight (g) 3
