AccuraUWB FXUWB10.01 3-10GHz Ultra Wideband (UWB) Flex Antenna with 100mm 1.37mm & SMA(M)

FXUWB10.01.0100C

Flexible UWB (Ultra Wideband) Antenna
For European and USA UWB Applications
Covers All Channels 1-15
Frequency: 3.0 – 10.3GHz
Cable: 100mm 1.37mm Coaxial
Connector: SMA(M)
Dims: 35*24.5*0.2mm

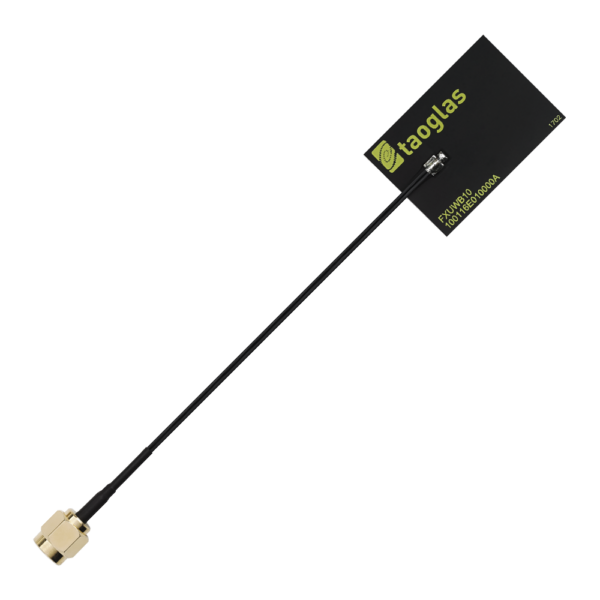

Image FXUWB10.01.0100C

FXUWB10.01.0100C

AccuraUWB FXUWB10.01 3-10GHz Ultra Wideband (UWB) Flex Antenna with 100mm 1.37mm & SMA(M)

Overview
FXUWB10.01 3-10GHz Ultra Wideband (UWB) Flex Antenna

The AccuraUWB FXUWB10 flexible polymer antenna, at 35*24.5*0.2 mm, is a small form factor, ultra-thin ultra-wideband (UWB) antenna with high efficiencies across the pulsed UWB communications operational bands. It is assembled by a simple “peel and stick” process, attaching securely to non-metal surfaces via 3M adhesive. It enables designers to use only one antenna that covers all available UWB commercial bands, namely bands 1 through 15 simultaneously.

The AccuraUWB FXUWB10 antenna is a durable flexible polymer antenna that has an average peak gain of 5dBi, an efficiency of more than 75% across the bands and is designed to be mounted directly onto a plastic or glass cover. It is an ideal choice for any device maker that needs to keep manufacturing costs down over the lifetime of a product. It is ground plane independent and delivered with a cable and connector for easy connecting to the wireless module or customer PCB. Cables and Connectors are customizable, however, the maximum micro coax cable length is 100 mm. Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency.

Ultra-Wideband (also known as UWB) is a low power digital wireless technology for transmitting large amounts of digital data over a wide spectrum of frequency bands typically spanning more than 500MHz with very low power for short distances. Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency. Ultra-wideband (also known as UWB) is a low power digital wireless technology for transmitting large amounts of digital data over a wide spectrum of frequency bands typically spanning more than 500MHz with very low power for short distances.

Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency. Ultra-wideband (also known as UWB) is a low power digital wireless technology for transmitting large amounts of digital data over a wide spectrum of frequency bands typically spanning more than 500MHz with very low power for short distances.

While the cable type and length are customizable, as is the connector, do note that a custom-designed antenna may be needed in those circumstances. Also tuning of the antenna may be needed in specific customer device environments. Taoglas offers this testing and tuning service subject to NRE and MOQ. Contact your regional Taoglas office for support. The low power requirements of UWB mean increased battery life of sensors and tags leading to a reduction in overall operational costs. Taoglas has developed various innovative and new-to-market flexible embedded UWB antennas designed for seamless integration on plastics and using highly flexible micro-coaxial cable mounting while achieving high performance where space is limited. Taoglas UWB antennas have been designed for use with the recently launched Decawave ScenSor DW1000 module and are also compatible with any other UWB sensor modules on the market.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, UWB
Mechanical Style Flex PCB
Gain (Max) 4
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type 1.37 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 3100MHz - 10300MHz
Connector Polarity Normal
Cable Length (mm) 90
Packaging PE Bag, Carton
VSWR 0
Length (mm) 34.9
Width (mm) 24.5
Height (mm) 0.24
Weight (g) 3.6
