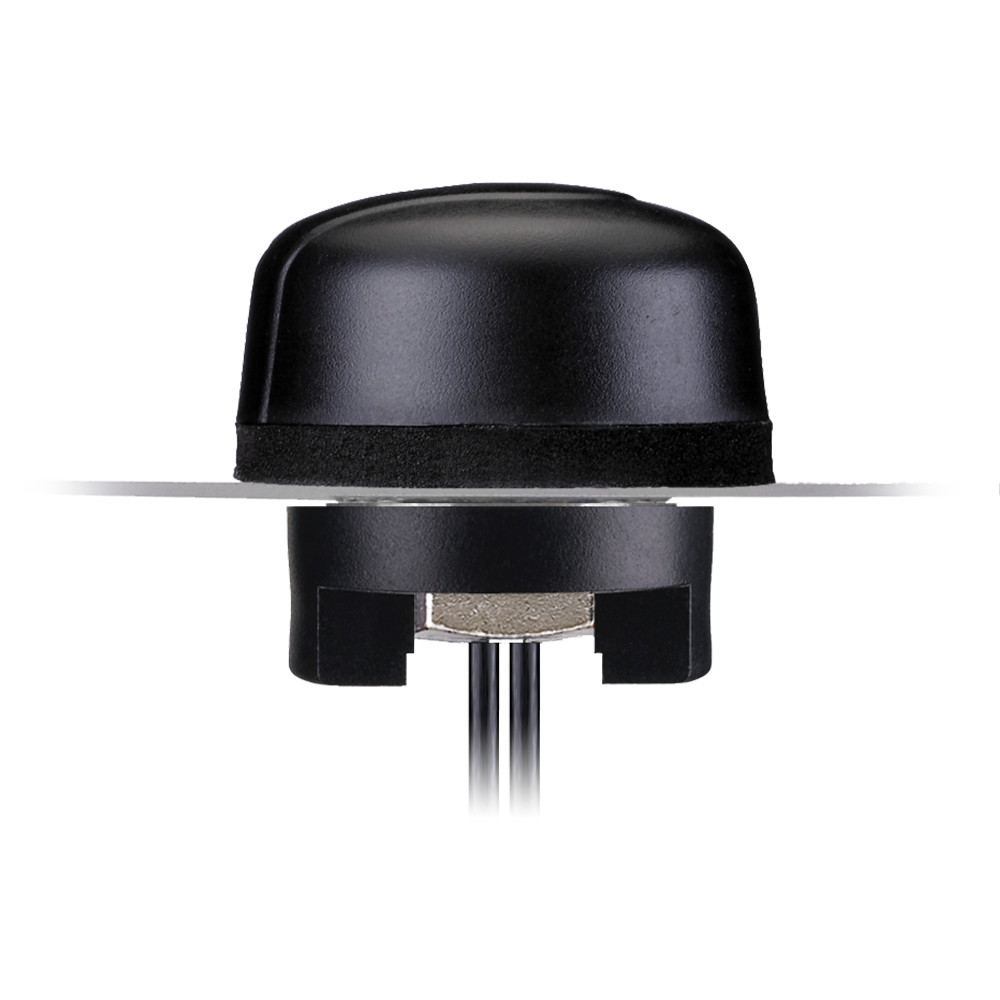

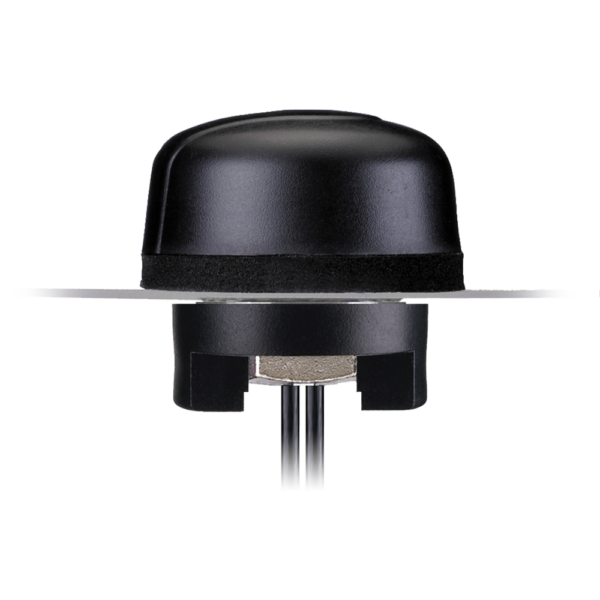

The MA.104.C GPS/GALILEO/Cellular Combination Hercules Antenna is a combination high-performance GPS/GALILEO and penta-band cellular antenna solution for reliable asset tracking and remote monitoring. Durable UV and robust PC housing is IP65 rated, resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 49 mm. It is designed to not catch on tree-branches. The Hercules can be mounted on metal or non-metal structures as it has a metal ground-plane base integrated inside.
Hercules MA104 2in1 GPS/GALILEO & 3G/2G Permanent Mount Antenna Ø48*29mm
MA104.C.AB.015Hercules 2 in 1 GPS/Galileo & Penta-band Cellular
3M RG174 – GPS/GALILEO-SMA(M), GSM-SMA(M)
No Ground Plane Required
Dimensions: 49mm*49mm*29mm
IP65 Rated Enclosure
RoHS and REACH Compliant
MA104.C.AB.015
Hercules MA104 2in1 GPS/GALILEO & 3G/2G Permanent Mount Antenna Ø48*29mm
Overview
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | External Antennas, Combination |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824 - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| Packaging | PE Bag, Carton |
| VSWR | 0 |
| IP Rating | IP65 |
| RoHS | Yes |
| Gain (Max) | 2 |
| Length (mm) | 48 |
| Width (mm) | 48 |
| Height (mm) | 29 |
| Weight (g) | 200 |
