I-Bar ISA.01 400~470MHz 1.5dBi Adhesive Glass Mount Antenna, 3M RG-174

ISA.01.A.301111

400-470MHz Wide-band Omnidirectional Low Profile Adhesive Glass Mount Antenna
ISM/TETRA/CDMA 450/SCADA
Family Radio Service/General Mobile Radio Service/Bio-Medical/Telemetry
1.5dBi gain, 35%+ Efficiency
Semi-Flexible, Low profile
Outside Casing IP65 – Internal PCB IP67
Standard: 3 meters RG174 cable SMA(M)
Automotive Approved 3M Adhesive
Dims: 239*42*11mm

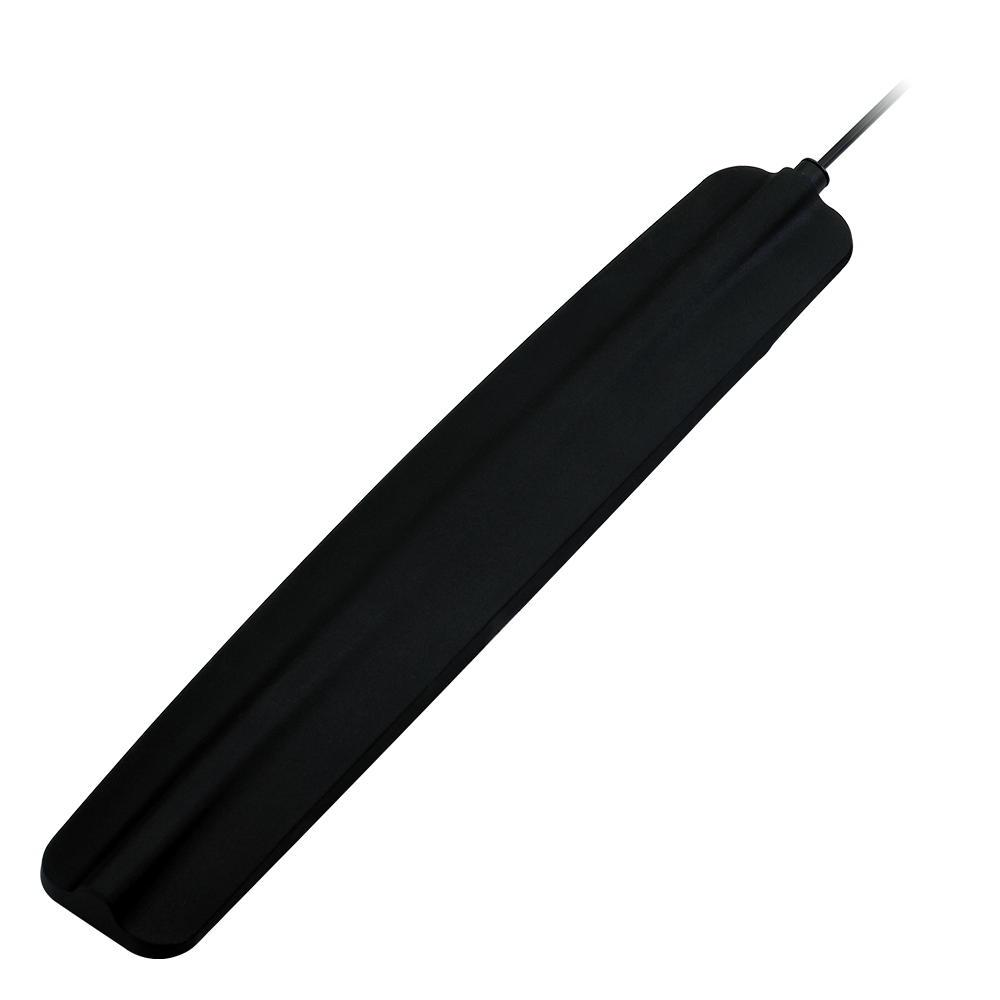

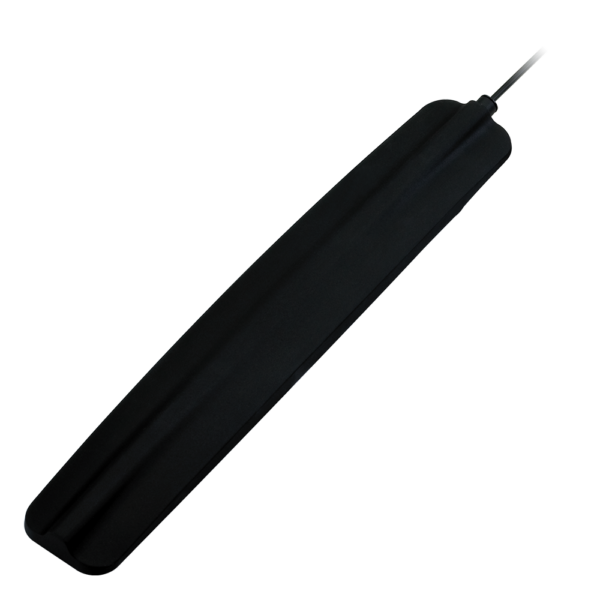

Image ISA.01.A.301111

ISA.01.A.301111

I-Bar ISA.01 400~470MHz 1.5dBi Adhesive Glass Mount Antenna, 3M RG-174

Overview

The ISA.01 is an Omni-directional wide-band low profile 400MHz to 470MHz antenna for internal or external applications adhesive mounted on glass. Its applications are in the automotive industry and telematics. At only 10.5mm thick and 42mm in width, its semi-flexible properties, and strong 3M automotive approved double-sided adhesive allow for convenient glass installation. ISA.01 antenna offers exceptionally stable peak gain and efficiency across a very wide bandwidth, tuned to operate optimally on glass, which makes it a unique low-frequency solution in low profile form. Unlike our competitors, Taoglas shows full performance data for our antennas.

The ISA.01 shows real gain figures and radiation patterns INCLUDING cable losses, tested in state of the art low-frequency anechoic chambers. We have invested heavily in research to create a uniquely wide-band UHF antenna with a minimum of 70MHz bandwidth that can replace expensive externally mounted antenna solutions. The wide-band compared to other narrow-band 20MHz antennas delivers more stable performance in a range of diverse on-glass environments with more resistance to detuning. All low-frequency UHF antennas need to be tuned to suit their mounting conditions. For this reason, this antenna is tuned to be mounted on glass. (i.e. excluding plastic or metal mounting), so is ideal for vehicles or building windows.

The standard cable is the RG174. Cable length and connector type are fully customizable The antenna can be customized for other low-frequency bands for a minimum order quantity. Please contact your local sales office. For mounting applications on plastic please use ISA.06. For mounting directly on metal please use our FW series whip antennas.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 450-470MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 2
Length (mm) 238.9
Width (mm) 41.8
Height (mm) 10.5
Weight (g) 103
