ILA.01 915MHz 1dBi 10*3.2*0.5mm Ceramic Loop Antenna

ILA.01

1dBi 915MHz Miniature Ceramic Loop Antenna
Efficiency 50%
Low Profile
Dimensions: 10*3.2*0.5mm

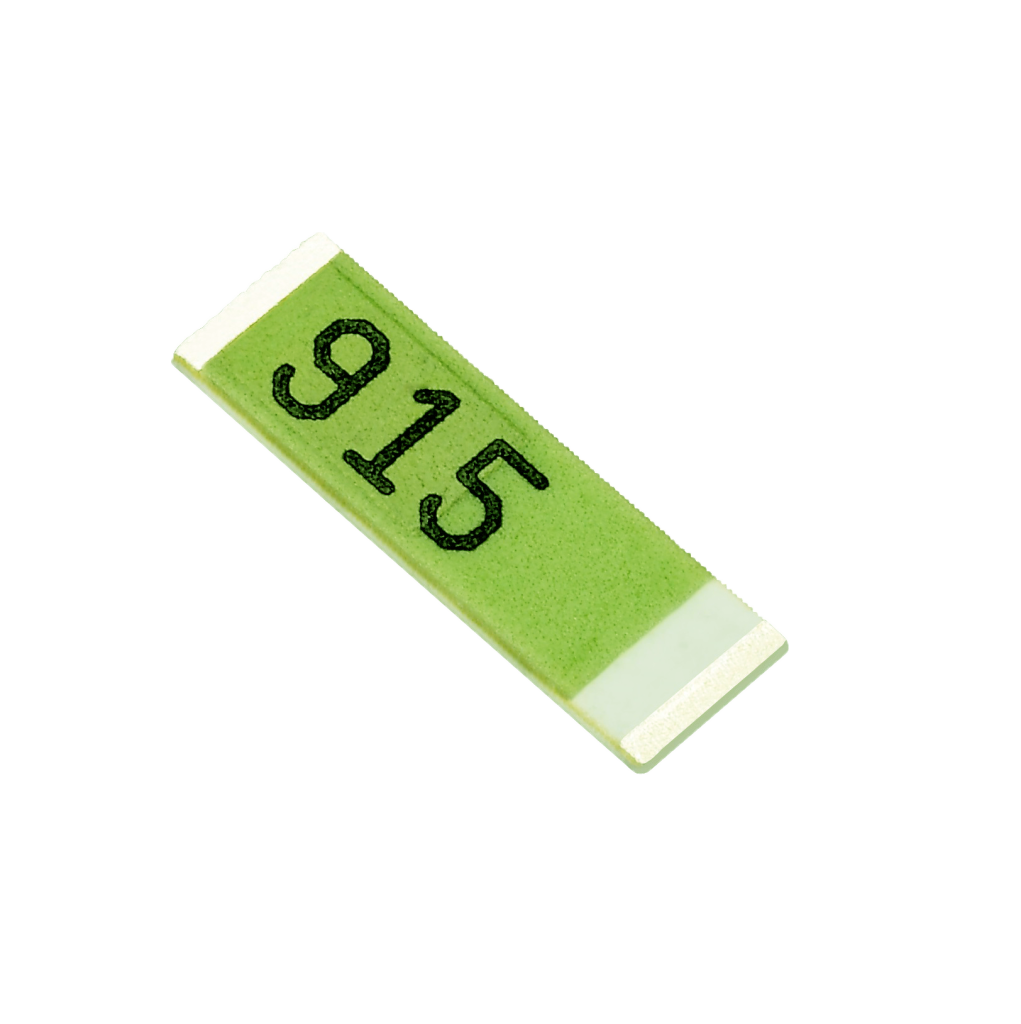

Image ILA.01

ILA.01

ILA.01 915MHz 1dBi 10*3.2*0.5mm Ceramic Loop Antenna

Overview
Automotive 915 ISM Antenna (USA)

The ILA.01 is an automotive 915 MHz ISM band antenna (USA) with excellent efficiency, 60% at the center frequency and 45% at the band edges. This antenna works the best when placed at the center of the board edge. The antenna, at 10 x 3.2 x 0.5 mm, is low profile and would be suitable for devices with space constraints. The ILA.01 is delivered on tape and reel and now allows M2M customers to use an omnidirectional SMT antenna. The omnidirectional radiation characteristics allow for excellent performance regardless of device orientation. This is especially useful for devices that are not fixed in one particular spot during use. When there is little PCB space available for antenna placement, but high performance is required, the ILA.01 is the ideal choice. The ILA.01 Loop antenna can be used in automated meter reading (AMR), radio frequency identification (RFID), remote monitoring, healthcare, sensing, and other 915 MHz applications.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, ISM/LoRA
Mechanical Style Chip
Gain (Max) 2
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Connector Body Style Straight
Polarity Linear
Frequency Range 902MHz - 928MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Box, Carton
VSWR 0
Length (mm) 10
Width (mm) 3.2
Height (mm) 0.5
Weight (g) 2
