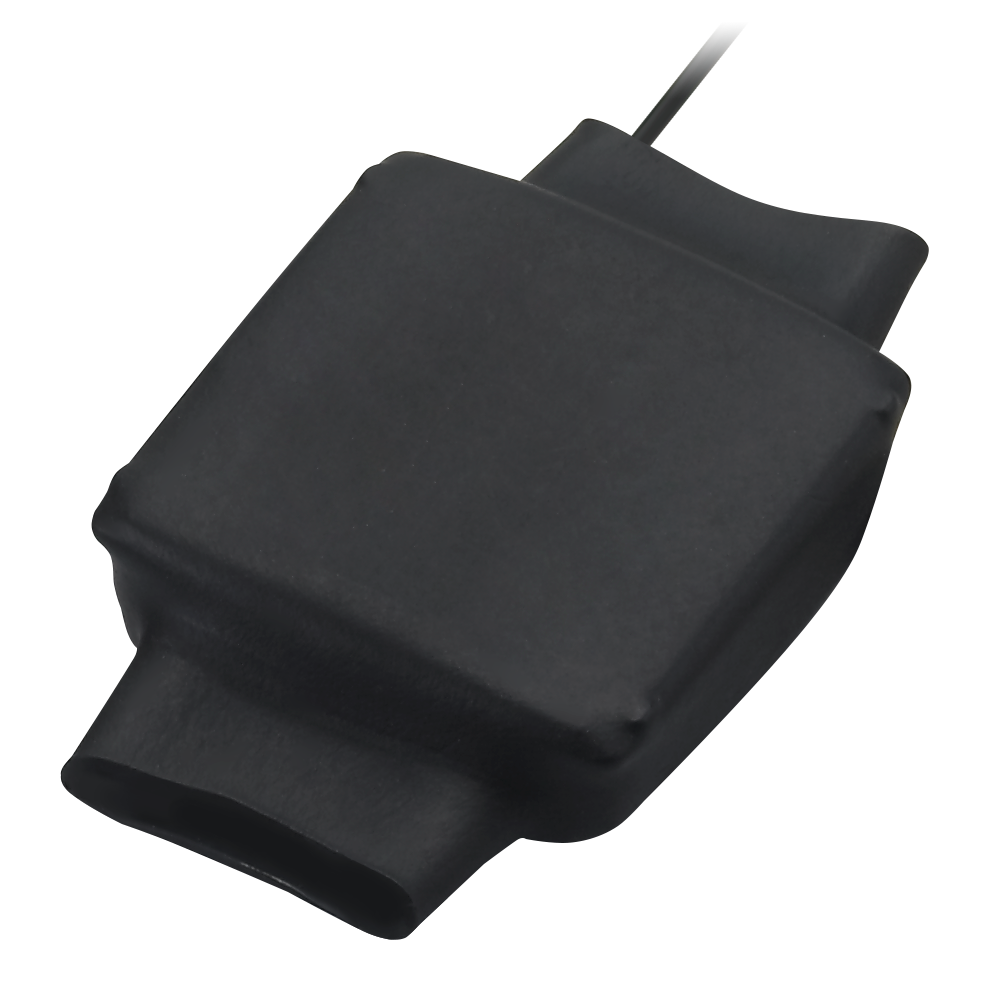

ISA.05 915MHz 5.12dBi ISM Band Adhesive Antenna, 300mm Ø1.37mm coax cable, I-PEX MHF® I (U.FL)

ISA.05.A.033822

915MHz ISM Band Adhesive Antenna for Internal Applications
Peak Gain 5.12dBi (on 30*30cm Ground Plane)*
Efficiency 68.94% (on 30*30cm Ground Plane)*
Outside Casing IP65
Automotive Approved 3M Adhesive
300mm Ø1.37 cable I-PEX MHF® I (U.FL comp)
Dims: 80*50.5*11mm

Image ISA.05.A.033822

ISA.05.A.033822

ISA.05 915MHz 5.12dBi ISM Band Adhesive Antenna, 300mm Ø1.37mm coax cable, I-PEX MHF® I (U.FL)

Overview

The Taoglas ISA.05 adhesive mounted antenna is designed primarily for 915 MHz ISM Band compact wireless applications where it may or may not be attached to metal. When placed on a reference 30cm square ground-plane, the antenna has an excellent directional hemispherical radiation pattern, high peak gain of 5dBi at zenith, and an efficiency of 68%. Even without a ground-plane underneath, the antenna achieves 0dBi and an efficiency of 45%. The antenna is IP65 water-resistant and comes standard with a Micro-Coaxial cable with 1.37mm diameter and IPEX MHFHT® connector.

The Taoglas ISA.05 is an excellent solution for the following applications:
  • Environments where there are lots of metal objects that it may be mounted to (such as near a car engine)
  • RFID Readers
  • Short range 915MHz mesh networks Cable type, length, and connector can be customized

Mechanical customization of the antenna can also be done for a minimum order quantity. Please contact your regional Taoglas office for more details.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHF-HT (U.FL)
Cable Type 1.37 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 902-928MHz
Connector Polarity None
Cable Length (mm) 300
Packaging Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 1
Length (mm) 80
Width (mm) 50.5
Height (mm) 11
Weight (g) 32
