Monsoon MA170 2*5G/4G MIMO Permanent Mount Antenna

MA170.A.BI.001

2*5G/4G MIMO Antenna
600-6000MHz
Permanent Mount [Screw Mount]
Worldwide 4G Bands including 3G/2G Fallback
IP69K Enclosure
Dimensions: 204*69*31 mm
Cable: 3 Meters TGC-200
Connector: SMA(M)ST
Custom Cables and Connectors Available
CE Certified
RoHS & Reach Compliant

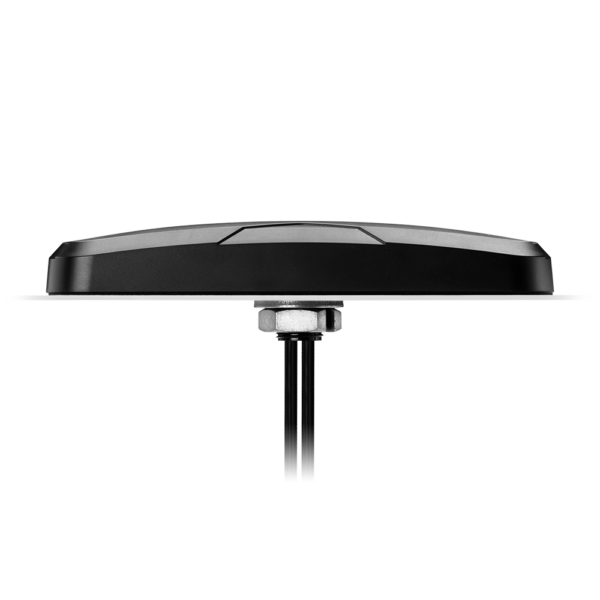

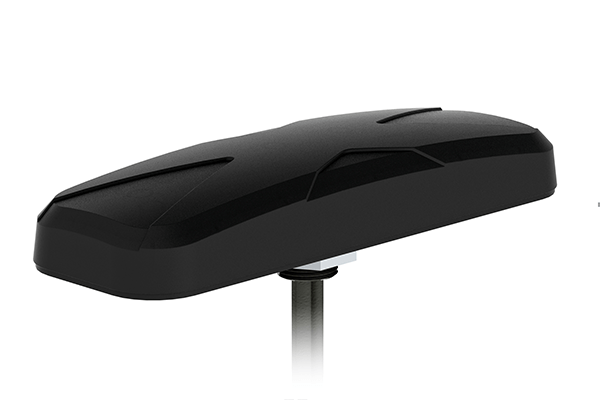

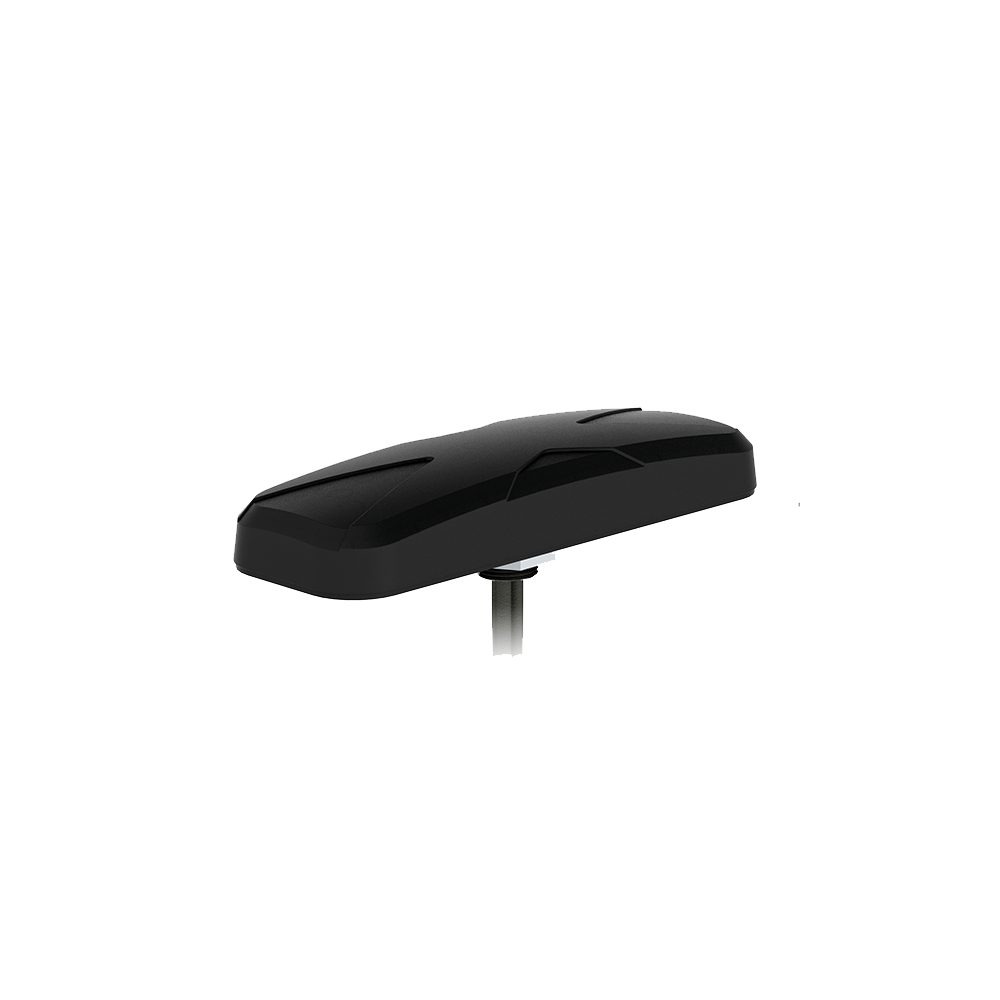

Image MA170.A.BI.001

MA170.A.BI.001

Monsoon MA170 2*5G/4G MIMO Permanent Mount Antenna

Overview

Monsoon MA170 2*5G/4G MIMO Permanent Mount Antenna

The MA170 antenna is a custom profile, fully IP69K Waterproof external M2M antenna for use on containers for global telematics services. The Taoglas Monsoon MA170 antenna is a custom profile, fully IP69K Waterproof external M2M antenna for use on containers for global telematics services. The MA170 delivers best in class 5G/4G antenna performance.

Typical applications include:
-HD Video over LTE
-First Responder and Emergency Services
-Intelligent Transport Systems
-Internet of Things (IoT market)
-High Definition Video Broadcast Systems
-Wireless LTE MIMO M2M Devices
-Digital Signage

LTE 4G applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.

Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. The MA170 does not require a ground plane. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and
may indeed not make a system connection at all.

The antenna cable length and connector type can be customizable, please contact your regional Taoglas customer support team for further information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP69k
RoHS Yes
Gain (Max) 2
Length (mm) 204
Width (mm) 69
Height (mm) 31
Weight (g) 550
