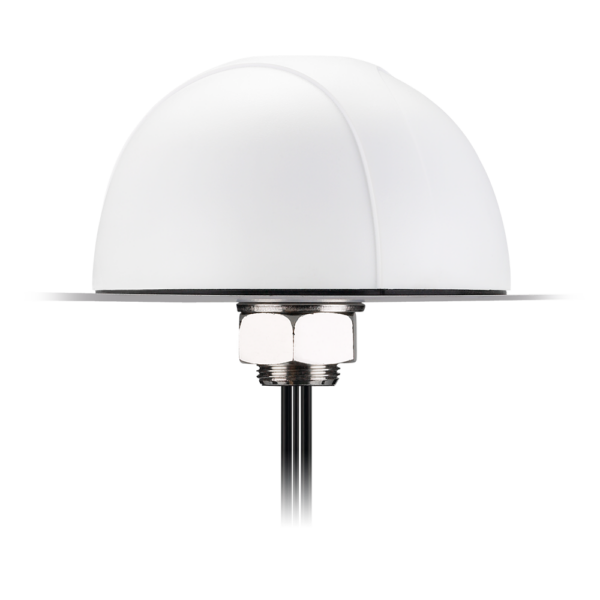

Pantheon MA700 3-in-1 White Permanent Mount GPS/GLONASS/Galileo, 5G/4G and Wi-Fi Antenna Ø145*82mm

MA700.W.A.ABC.001

Pantheon – GPS/GLONASS/GALILEO, Wi-Fi, LTE/Cellular/GSM – White Version
GPS/GLONASS/GALILEO – 1575-1602MHz -3M RG-174 SMA(M) 50% Efficiency Gain 4.0dBic @ Zenith
Cellular 600-6000MHz – 3M CFD-200 SMA(M) 50%+ Efficiency
Wi-Fi/Public Safety/Zigbee 2.4/4.9~6GHz – 3M CFD-200 SMA(M) 54%+ Efficiency
No Ground Plane Required
Diameter 145.19mm * Height(profile) 82.4mm
Waterproof IP67 Rated

Image MA700.W.A.ABC.001

MA700.W.A.ABC.001

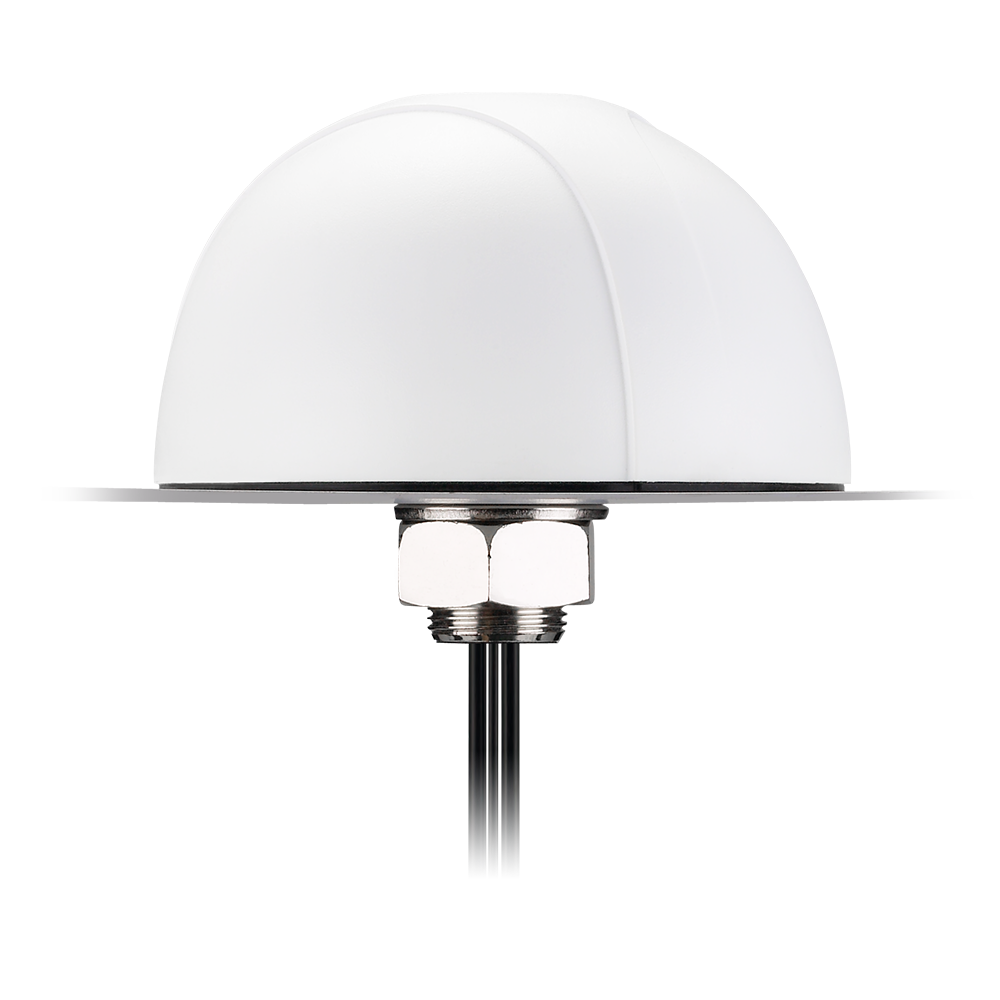

Pantheon MA700 3-in-1 White Permanent Mount GPS/GLONASS/Galileo, 5G/4G and Wi-Fi Antenna Ø145*82mm

Overview

The Pantheon MA700.W antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. The Pantheon series is designed for RF professionals who accept no performance compromises whatsoever. The MA700.W combines a 3in1 GPS/GLONASS/GALILEO, Cellular 700MHz to 2200MHz (4G/3G/2G) and 2.4GHz/5GHz antenna with the highest efficiency and peak gain possible. Unlike our competitors who don’t measure cable loss the specification is measured at 3 meters (10ft) to show real performance in the field. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted. The white housing is ideal for mounting on white truck roofs or cabs or industrial equipment.

All while still maintaining 20dB isolation between antennas. It uses high-shielded PTFE dielectric ultra low-loss cables that maintain low attenuation at all frequency bands, and high noise rejection, with an average loss of only 0.3dB per meter (0.1dB per foot), compared to 0.7dB for RG58 and 1.2dB for RG174. Because of this, the Pantheon maximizes chances of passing PTCRB and network approvals first time. The Pantheon also has excellent performance without need to attach to an external ground-plane due to its internal antennas coupling to its unique super strong integrated metal base. The antenna comes with a 3M adhesive waterproof layer to prevent water leaking under the antenna into the mounting hole. The Pantheon can also be supplied in single GPS/GLONASS/GALILEO, Cellular, Wi-Fi only versions, or at other frequencies.

Custom designed integrated wall-mounted and pole-mounted brackets are available for the Pantheon antennas. These patent-pending mounts allow for 180 degrees freedom of movement of the antennas for ease of positioning while also preventing access to the cables so they cannot be cut by vandals or thieves and also protecting the cables from long term weather exposure. The removal of unsightly cables also leads to a cleaner more professional installation and look, and makes the antenna less identifiable and more unobtrusive. Customized cable sleeves can be supplied for extra protection where required.

Note: for ground-isolation antennas use the MA705.W version with Isolation Gaskets. Also available in black.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 4
Length (mm) 145.19
Width (mm) 143.19
Height (mm) 82.4
Weight (g) 1308
