SMD Mount Receptacle Compatible with I-PEX MHF®III, Hirose W.FL, Hirose W.FL2

RECE.20369.001E.01

Compatible with I-PEX MHF®III, Hirose W.FL, Hirose W.FL2
Mating Height: 1.6mm Max
5000pcs per reel
Dimensions: 2 x 2 x 0.85 mm
Diameter: 1.4mm
RoHS & Reach Compliant

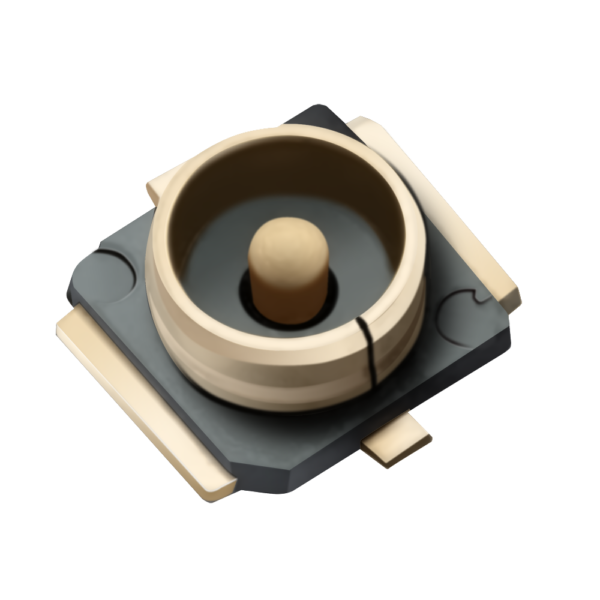

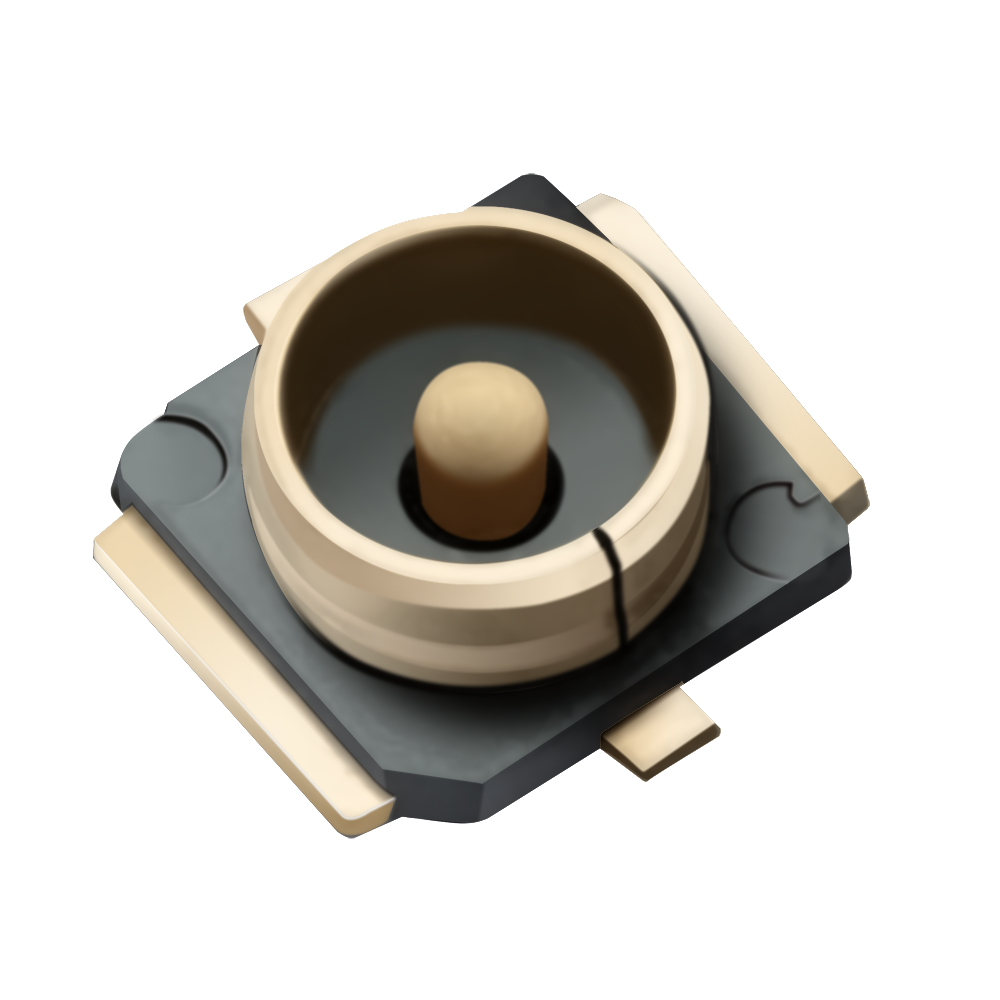

Image RECE.20369.001E.01

RECE.20369.001E.01

SMD Mount Receptacle Compatible with I-PEX MHF®III, Hirose W.FL, Hirose W.FL2

Overview

SMD Mount Receptacle Compatible with I-PEX MHF®III, Hirose W.FL, Hirose W.FL2

Part of the Taoglas SMD Mount Receptacle the RECE.20369.001E.01 is a 3-pad type wire-to-board SMD Receptacle solution that is ultra-small, lightweight and low profile (1.6mm MAX.) with an operational frequency range of DC to 6 GHz the RECE.20369.001E.01 is gold plated to have superior performance and allow easy mounting of the male RF connector.

Packaged on tape and reel, this receptacle is designed to be placed with automatic “pick and place” equipment for ease of installation.

The SMD Mount Receptacle RECE.20369.001E.01 acts as a 50 Ohm transmission line to connect the micro-miniature RF connector to the printed circuit board. It is fully compatible with I-PEX MHF®III, Hirose W.FL and all other available W.FL compatible connectors.

Applicable Technologies:
The RECE.20369.001E.01 receptacles are commonly integrated into GSM module, GPS module, Wireless LAN modules.

For further information, please contact your regional Taoglas customer support team.

Technical Specification
Name Value
Connector Style Straight
Connector Type I-PEX MHFIII
Contact Termination PCB
Shield Termination F
Impedance 50
Mounting Type SMD/SMT
Frequency - Max (GHz) 6
Number of Ports 1
Housing Color Gold
Center Contact Material Copper Alloy
Length (mm) n/a
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
