Shockwave TLS.01 5G/4G Wideband Terminal Antenna, N Type (M)

TLS.01.1F11

Applicable for 5G/4G Cat M & NB-IoT cellular bands
600-6000MHz Wideband Operational
Over 45% efficiency and 2.3 dBi gain
Mechanically robust for indoor/outdoor applications
Height: 79.45mm (3.13″)
Diameter: 42mm(1.65″)
IP67 Waterproof
N-Type(M) connector
RoHS & Reach Compliant

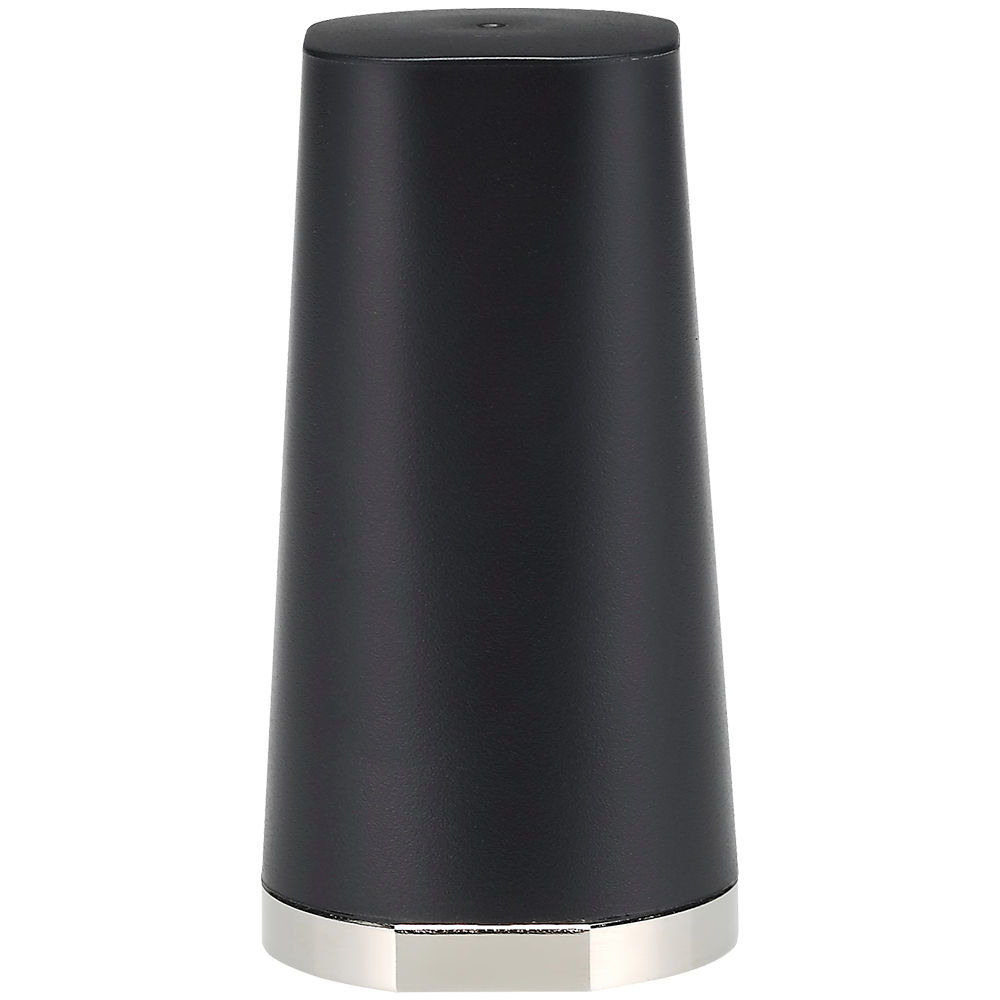

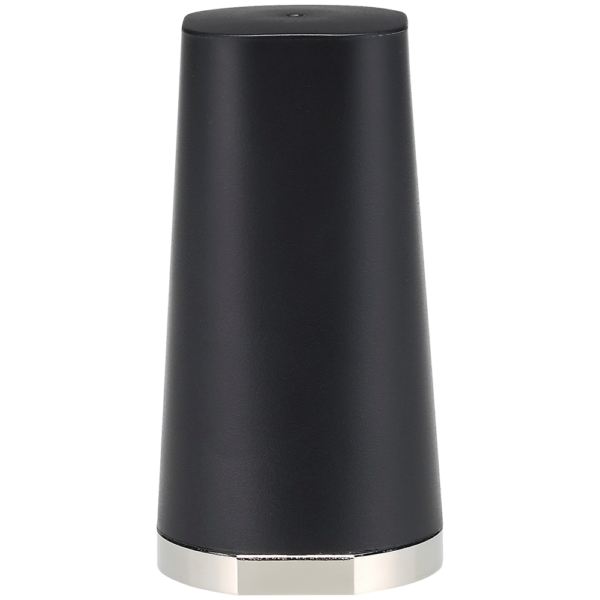

Image TLS.01.1F11

TLS.01.1F11

Shockwave TLS.01 5G/4G Wideband Terminal Antenna, N Type (M)

Overview
Wideband Permanent Mount Antenna for Smart City

The Shockwave TLS.01.1F11 is a permanent mount, waterproof, external 5G/4G cellular operating at the wideband 600- 6000MHz frequency with an N type male direct mount connector. It has been designed to be used on a Ground Plane.

It can be used in mobile and fixed applications for 5G/4G wireless such as:
• Public safety
• HD Video Streaming
• Utilities and Smart Cities
• Fleet Management
• Agricultural
• Industrial

This antenna has superior performance over wide-bands compared to traditional whip antennas. Up to 90% efficiency and with a minimum 2.3dBi peak gain over all cellular bands result when mounted on a 30x30cm ground plane. Stable radiation patterns over low angles provides consistent gain in the horizontal plane, meaning that it is especially suitable for cellular applications.

A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location, where an N type female connector juts out from a metal panel. Waterproof Orings around the bottom base prevent water from leaking under the antenna.

The TLS.01 antenna is IP67 waterproof resistant against high pressure water jets in commercial cleaning environments, which makes the antenna ideal for 5G/4G/3G/Cat M/NB-IoT applications either in indoor or in harsh outdoor environments. For more information contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Direct
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Vertical
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) -0.71
Length (mm) 41.06
Width (mm) 42
Height (mm) 79.45
Weight (g) 130
