Shockwave TLS.30 ISM 433MHz -1.19dBi Permanent Mount Antenna, N Type(M)

TLS.30.1F11

Shockwave ISM Permanent Mount Antenna
433MHz
Efficiency 52%
N type(M) connector
IP67 Waterproof
Height: 79.45mm; Diameter: 42mm
FirstNet Ready

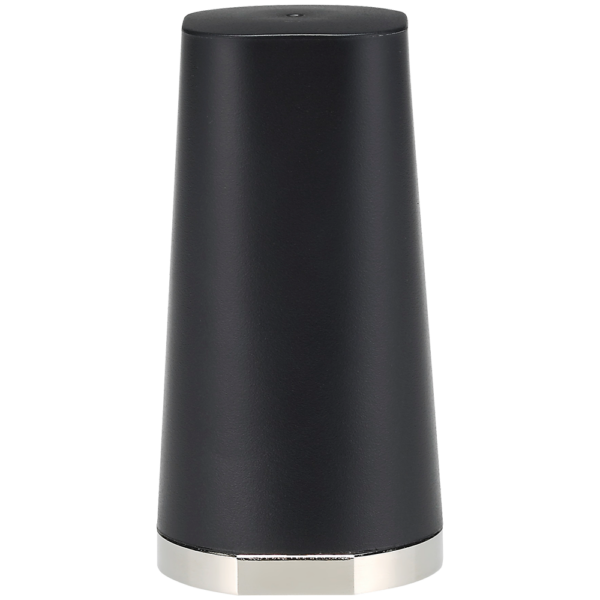

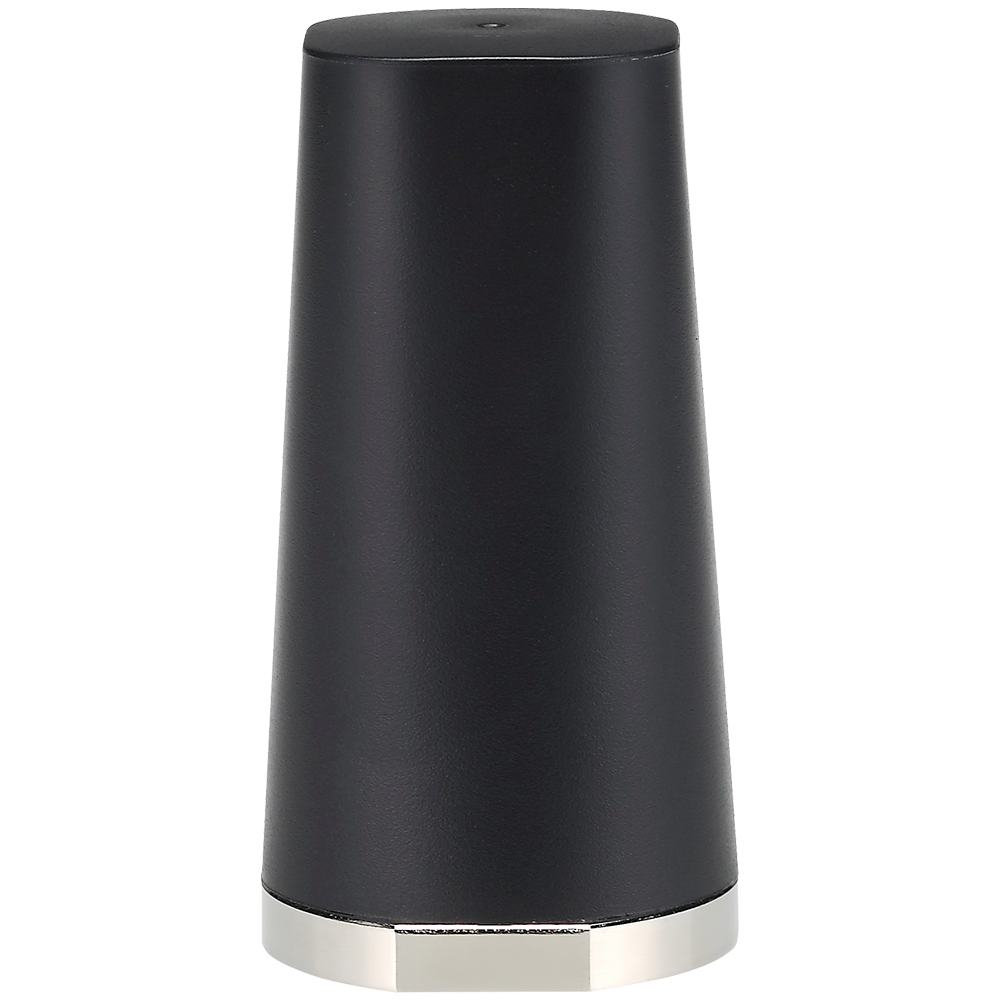

Image TLS.30.1F11

TLS.30.1F11

Shockwave TLS.30 ISM 433MHz -1.19dBi Permanent Mount Antenna, N Type(M)

Overview

The Shockwave TLS.30.1F11 is a mechanically robust, waterproof, external antenna operating at the 433MHz band with an N type female connector. It has been designed to be used on a Ground Plane.

Common applications are, for example:
  • Mesh networks
  • Indoor/outdoor asset monitoring
  • Security systems
  • Remote control systems
  • Heavy-duty equipment/vehicle communication in harsh environments

The antenna has 51% efficiency and -1.1 dBi peak gain at ISM 433MHz on a 30×30 cm ground plane. Stable radiation patterns over low angles provides consistent gain in the horizontal plane, meaning that it is especially suitable for mesh networks or hot spots. A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location, where an N type female connector juts out from a metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna. The TLS.30 antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes the antenna ideal for ISM 433MHz applications in harsh outdoor environments.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Direct
Termination Style Connector
Antenna Connector Type FAKRA CODE C Blue
Connector Body Style Straight
Polarity Vertical
Frequency Range 433MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) -1.1
Length (mm) 41.06
Width (mm) 42
Height (mm) 79.45
Weight (g) 130
