Storm MA411 3-in-1 Permanent Mount GNSS 4G/3G/2G 2*MIMO Antenna 216*93*31mm

MA411.A.LBI.001

Storm 3in1 – GPS/GLONASS/GALILEO/BeiDou & 4G/3G/2G LTE MIMO Permanent Mount Antenna
BeiDou 1561MHz / GPS-GALILEO 1575MHz / GLONASS 1602MHz
GPS/GLONASS/GALILEO/BeiDou 0.3M RG-174 Fakra Code C Jack
2*4G/3G/2G LTE MIMO 0.3M CFD-200 Fakra Code D Jack
(698~960MHz,1710~2170MHz,2490~2700MHz)
IP67 Enclosure
Aerodynamic, Super Low-profile Vandal Resistant Housing
Dimensions: 216*93*31mm
RoHS & REACH Compliant

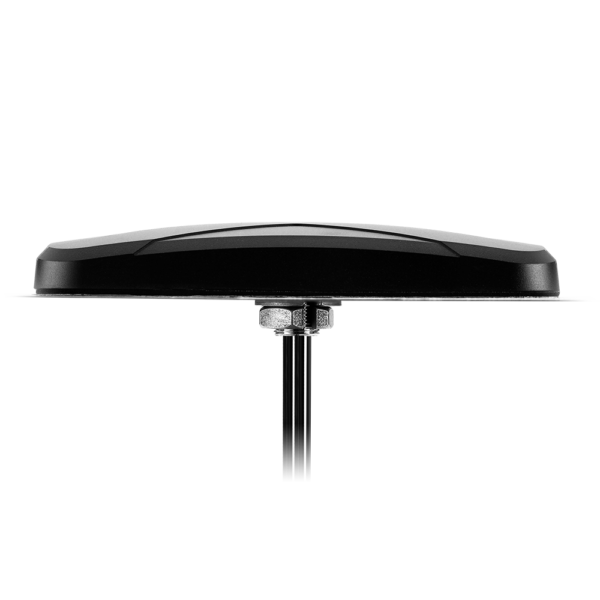

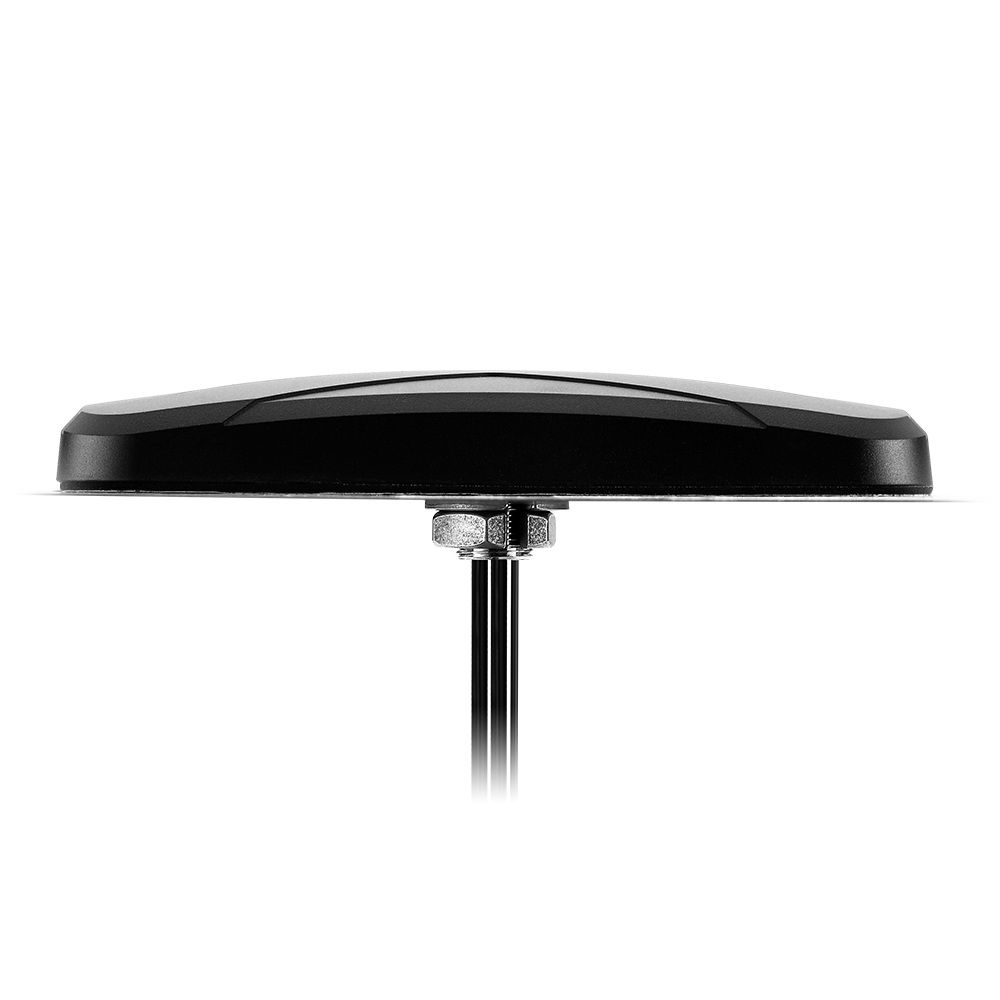

Image MA411.A.LBI.001

MA411.A.LBI.001

Storm MA411 3-in-1 Permanent Mount GNSS 4G/3G/2G 2*MIMO Antenna 216*93*31mm

Overview

The Storm MA411 antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use in worldwide telematics applications which require best in class LTE and GNSS performance. You will never be out of touch with this extremely robust antenna. At only 31mm high, the Storm is the world’s lowest profile global telematics antenna solution. It delivers powerful worldwide 4G LTE MIMO antenna technology while also covering the 3G and 2G bands, plus GPS-GLONASS-GALILEO-BeiDou for next-generation location accuracy.

Typical applications
  • Automotive and Heavy Equipment Vehicle Tracking and Telematics
  • Remote Asset and Pipeline Monitoring
  • HD Video over LTE
  • First Responder and Emergency Services

LTE 4G applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. The MA411 does not require a ground plane. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much-reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.

The GPS-GLONASS-GALILEO-BeiDou active antenna has been carefully designed to work well on GPS, GLONASS, GALILEO and BeiDou bands, leading to higher location accuracy and stability of tracking in urban environments. SPE-15-8-031/E/WY Page 3 of 52 Cable length and connector types are customizable. Contact your regional Taoglas sales office for support. Conformity is declared under the following standard: Conformity is declared under the following standard: EN55022 Class B This is to declare that the product listed above conform to the EMC directive 2014/30/EU.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type FAKRA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 300
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 7
Length (mm) 216.24
Width (mm) 93.25
Height (mm) 30.95
Weight (g) 415
