SXP.18 – 18mm Satellite Digital Audio Radio System (SDARS) Patch Antenna, 2320 ~ 2345 MHz

SXP.18.4.A.02

18*18*4mm Ceramic Patch
Excellent Efficiency: 83%
High Gain – Up to 9.5 at Zenith
Optimized LHCP Radiation Pattern
Pin & Adhesive Mounting
Manufactured in our IATF16949 approved production facility
RoHS and REACH Compliant

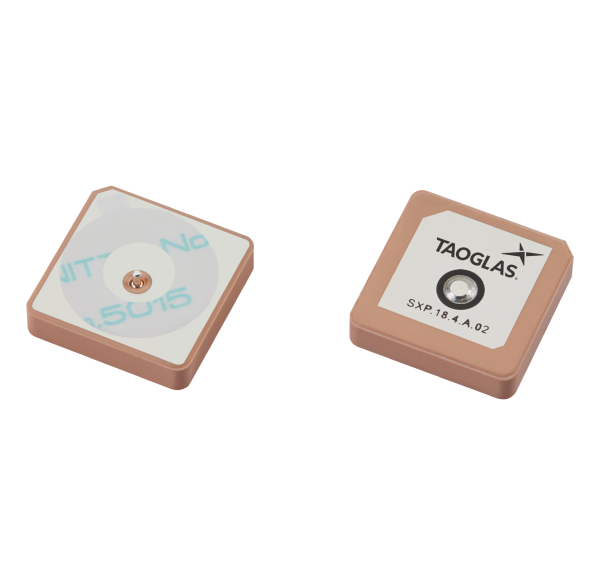

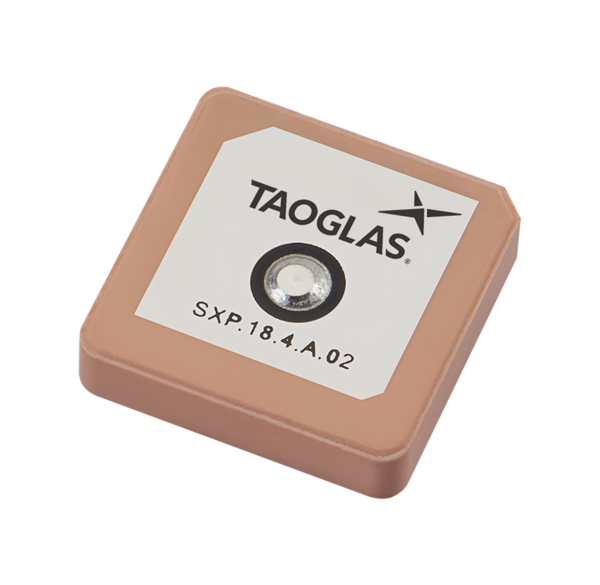

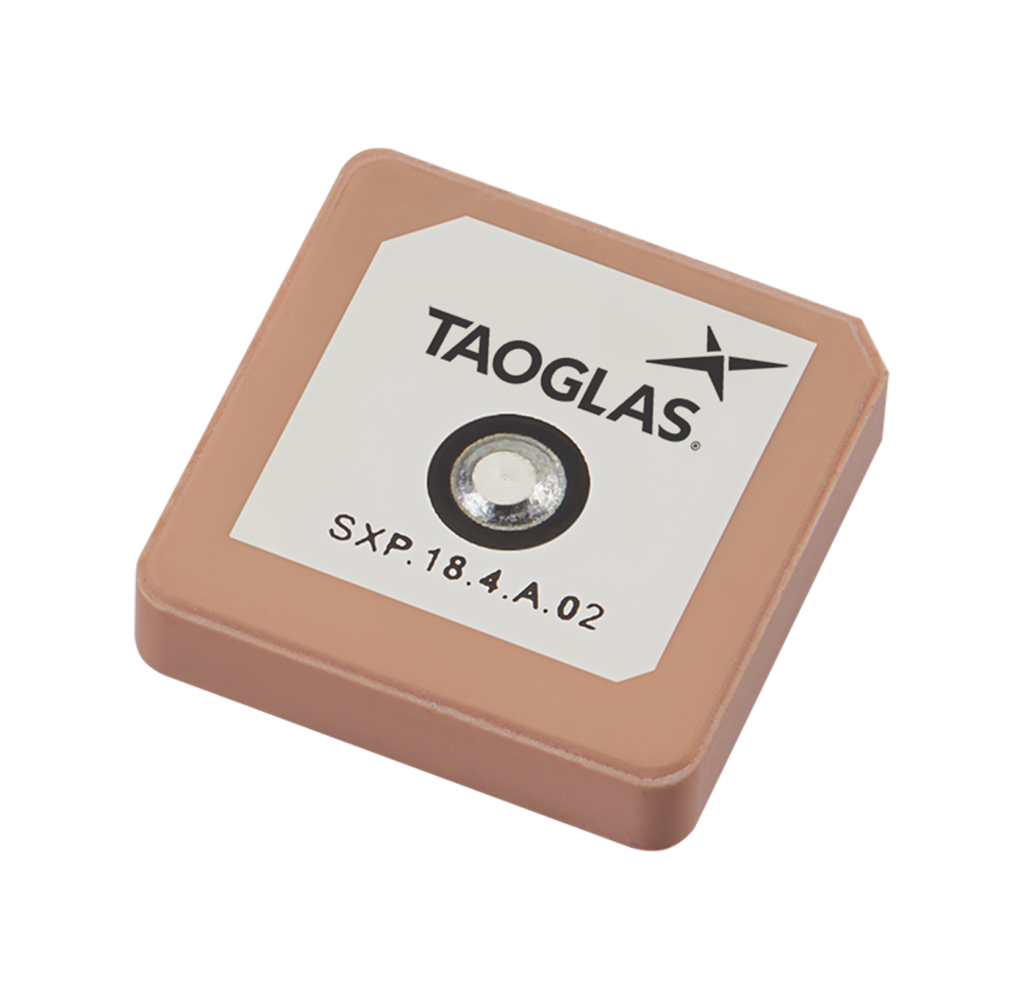

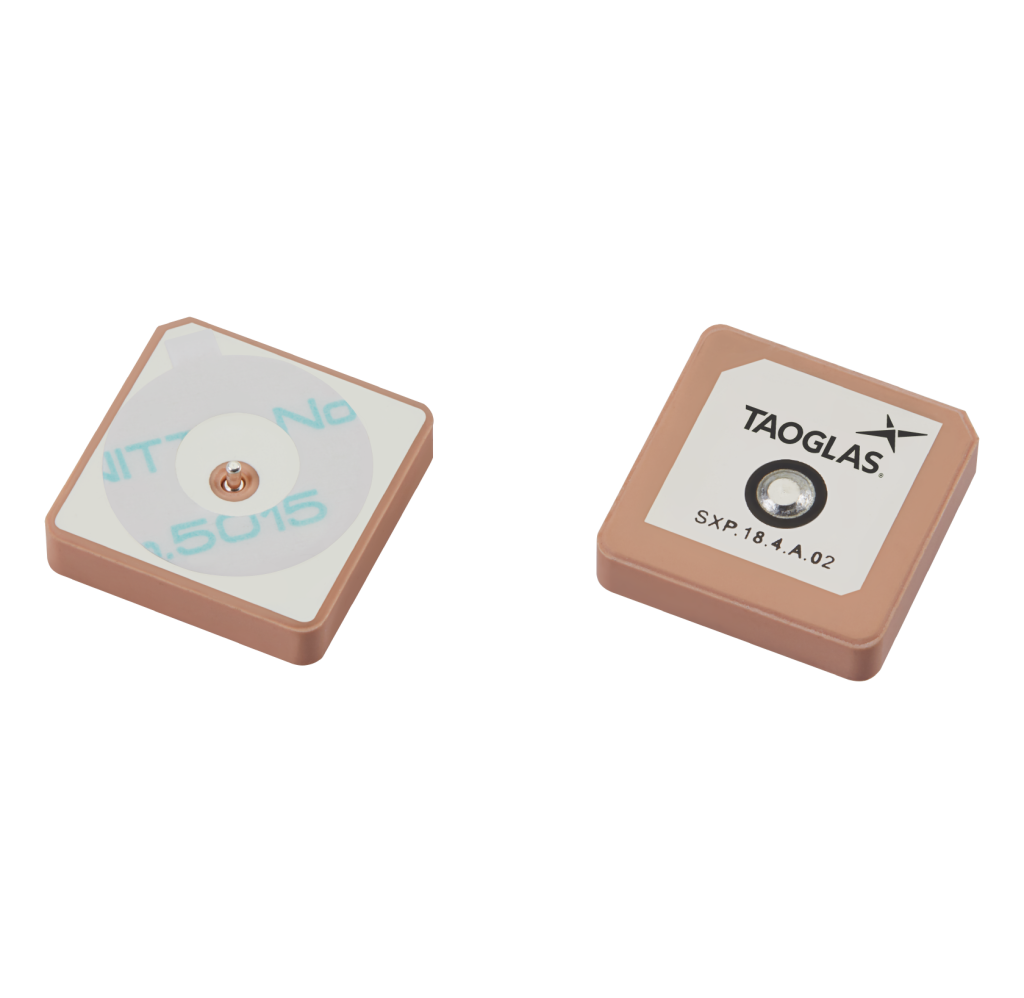

Image SXP.18.4.A.02

SXP.18.4.A.02

SXP.18 – 18mm Satellite Digital Audio Radio System (SDARS) Patch Antenna, 2320 ~ 2345 MHz

Overview

Smallest SDARS Patch Antenna 18*18*4mm

The Taoglas SXP.18.4.A.02 is the smallest SDARS Patch Antenna 18*18*4mm, which is part of a series of patch antennas designed for use with Satellite Digital Audio Radio Services (SDARS). It features left-hand circular polarization and excellent gain characteristics in the 2320 to 2345 MHz band, making it compatible with the most popular satellite radio services available in many new vehicles.

The SXP.18 comes in a convenient, compact form factor, with dimensions of just 18mm x 18mm x 4mm, and is manufactured with high-quality ceramic. It is mounted via pin and 3M adhesive tape. The SXP series of patches are manufactured in our IATF16949 approved production facility.

For further optimization to customer-specific device environments, custom tuned patch antennas can be supplied. Your regional Taoglas sales office can help you identify the best patch antenna for your specific SDARS application.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, SiriusXM
Mechanical Style Patch
Gain (Max) 8
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Pin
Connector Body Style Straight
Polarity LHCP
Frequency Range 2320MHz - 2345MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
Length (mm) 18
Width (mm) 18
Height (mm) 4
Weight (g) 4.9
