TI.18 868MHz 3.2dBi Terminal Antenna SMA(M) Hinged

TI.18.3113



868MHz 3.2dBi ISM Band Dipole Terminal Antenna
Hinged SMA(M) Connector
High Efficiency 92%
Hinged SMA(M) Connector
Dimensions: Straight 389mm Ø13mm~R/A 362mm*36.2mm Ø13mm

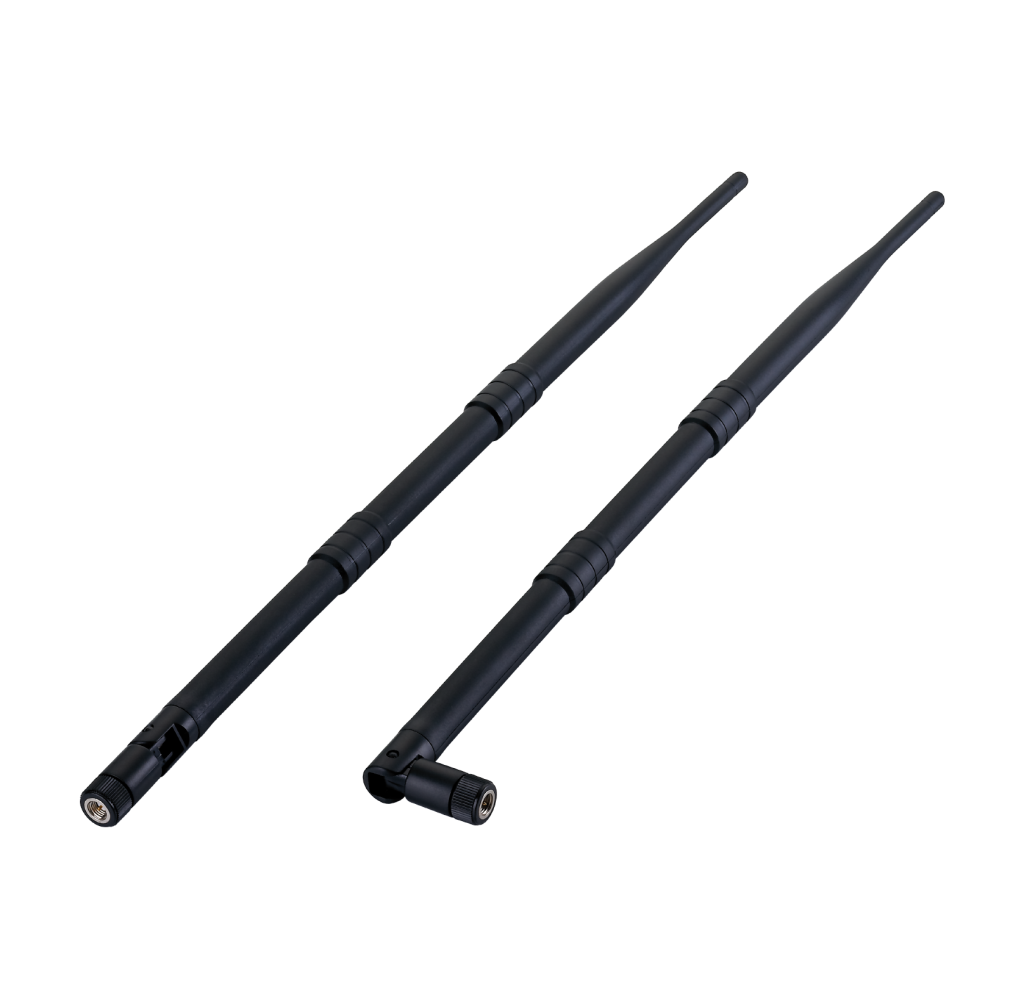

Image TI.18.3113

TI.18.3113

TI.18 868MHz 3.2dBi Terminal Antenna SMA(M) Hinged

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Hinged
Polarity Vertical
Frequency Range 860-880MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Box, Carton
VSWR 0
RoHS Yes
Gain (Max) 2.9
Length (mm) 13
Width (mm) 13
Height (mm) 389
Weight (g) 48
