Venti FXP524 Wi-Fi Including Wi-Fi 6 Flex PCB 4xMIMO, 100mm Ø1.37mm, I-PEX MHF® I (U.FL)

FXP524.D.07.C.001

Venti 2.4/5.8-7.125GHz Flexible PCB 4 Port MIMO Antenna
2400-2500MHz/5150-5850MHz
Connectors: I-PEX MHF® I (U.FL comp)
Cable: 100mm of Ø1.37mm
Dims: 80*20*1mm

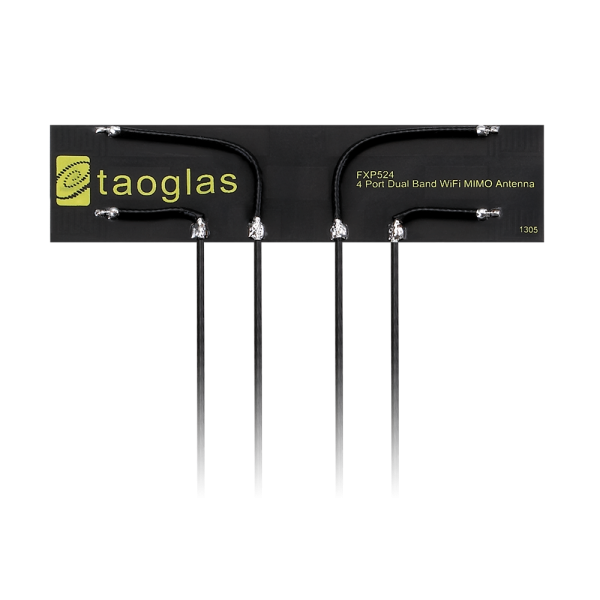

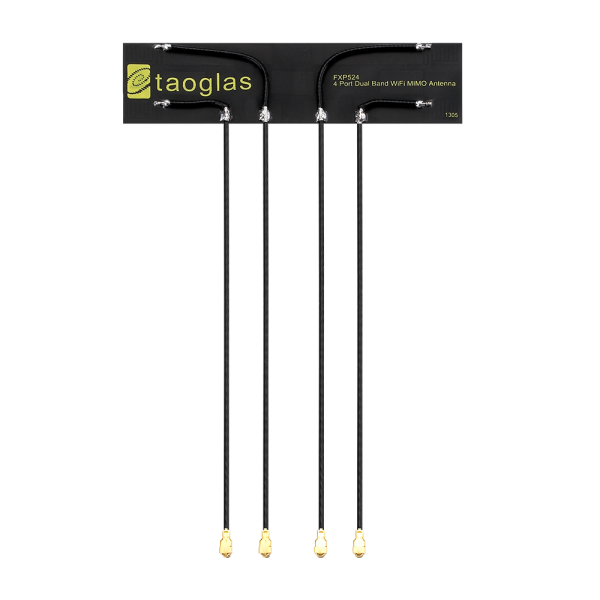

Image FXP524.D.07.C.001

FXP524.D.07.C.001

Venti FXP524 Wi-Fi Including Wi-Fi 6 Flex PCB 4xMIMO, 100mm Ø1.37mm, I-PEX MHF® I (U.FL)

Overview

The FXP524 Venti antenna is a 4-in-1 MIMO, flexible PCB monopole type antenna designed to operate at widely used Wi-Fi frequencies. The FXP524 is a future proof antenna as it has been proven to cover the frequencies required for Wi-Fi 6 applications. The antenna has excellent efficiency and isolation performance for all Wi-Fi applications. Featuring a low profile height of only 0.15mm, the FXP.524 is an ideal solution for maintaining high performance while fitting into narrow spaces such as plastic enclosures for laptops, tablets, routers, and other Wi-Fi applications.

The antenna has been designed in a flexible material with a rectangular form-factor and cable connection for easy installation. The antenna comes with double-sided 3M tape for easy and robust “peel and stick” mounting. The antenna cables feature IPEX connectors for easy installation.

Typical applications include:
– Smart Home
– Routers and Gateways
– Smart Devices
– HD Video Streaming

Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna
tested in free-space can degrade by at least 1 or 2dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.

Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be below the peak gain limits.
Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Wi-Fi/Bluetooth, Combination
Mechanical Style Flex PCB
Gain (Max) 4.4
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI
Cable Type 1.37 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 2400-2500/4900-7125MHz
Connector Polarity Normal
Cable Length (mm) 100
Packaging Carton
VSWR 0
Wi-Fi Bands 2.4/5.8/7.125GHz
Length (mm) 80
Width (mm) 20
Height (mm) 1
Weight (g) 8
