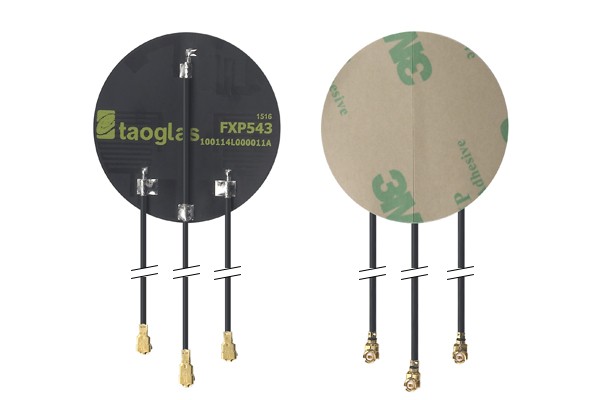

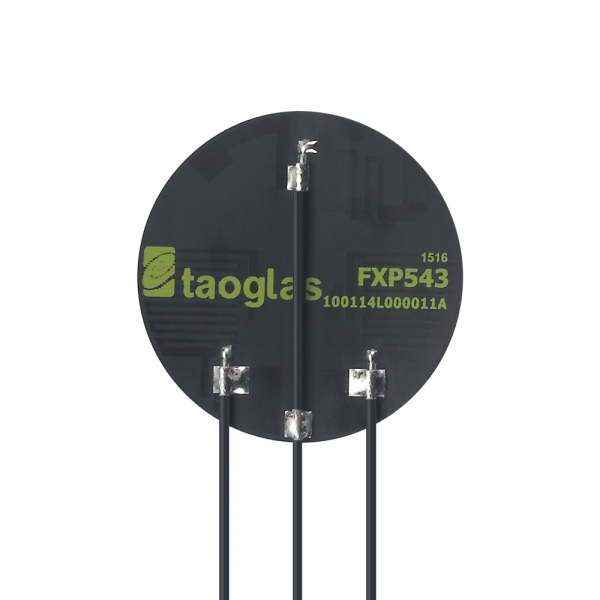

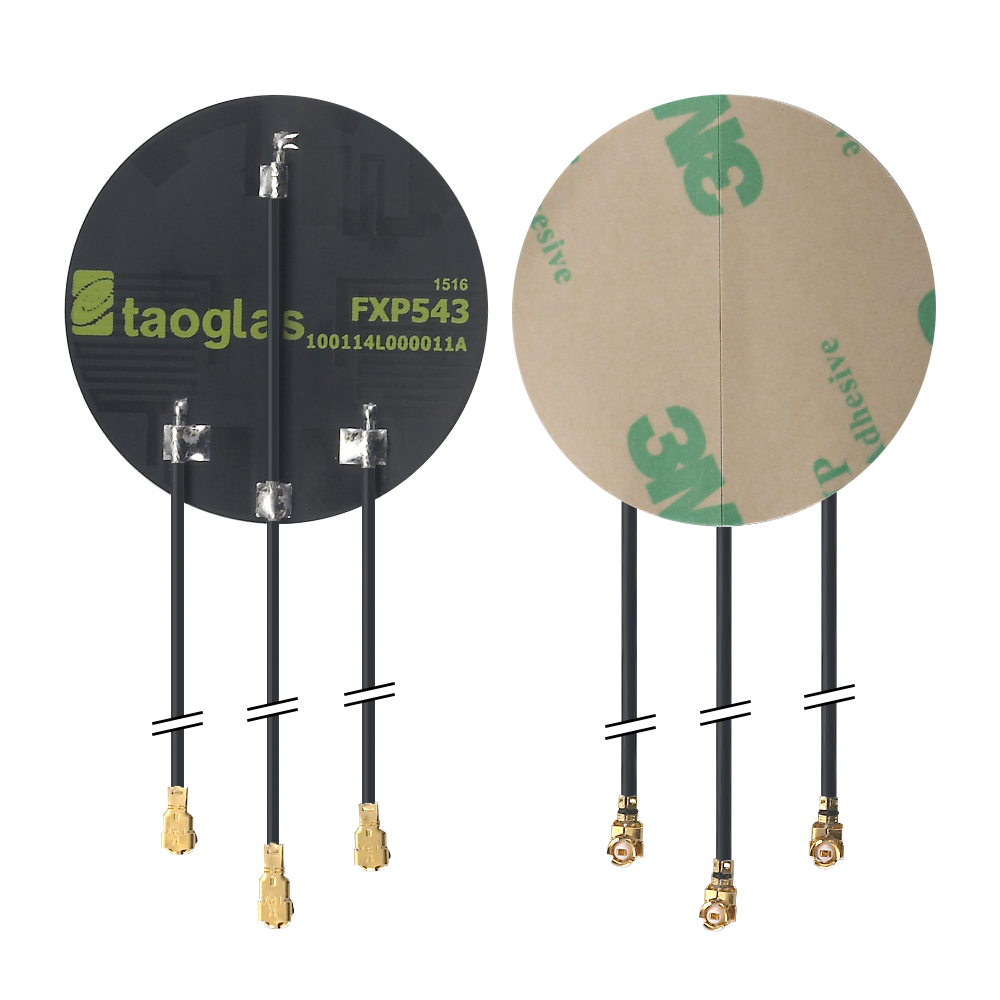

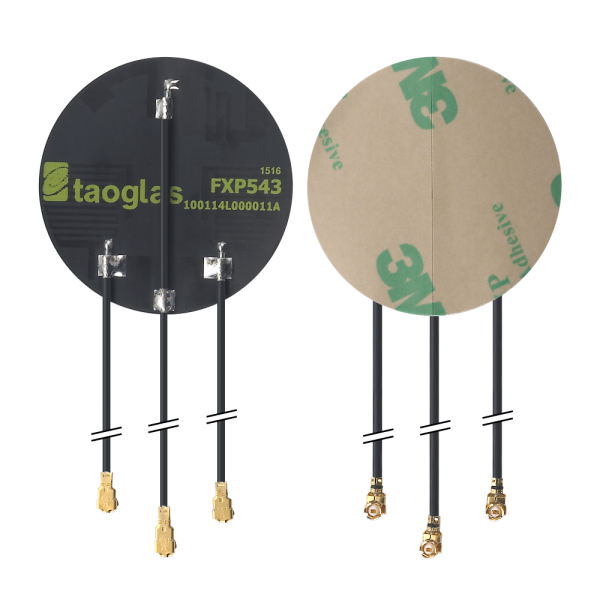

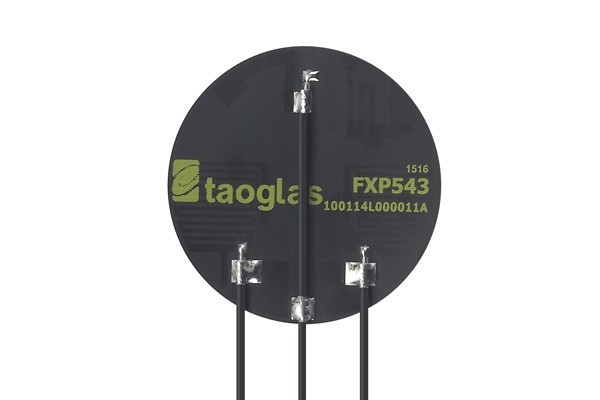

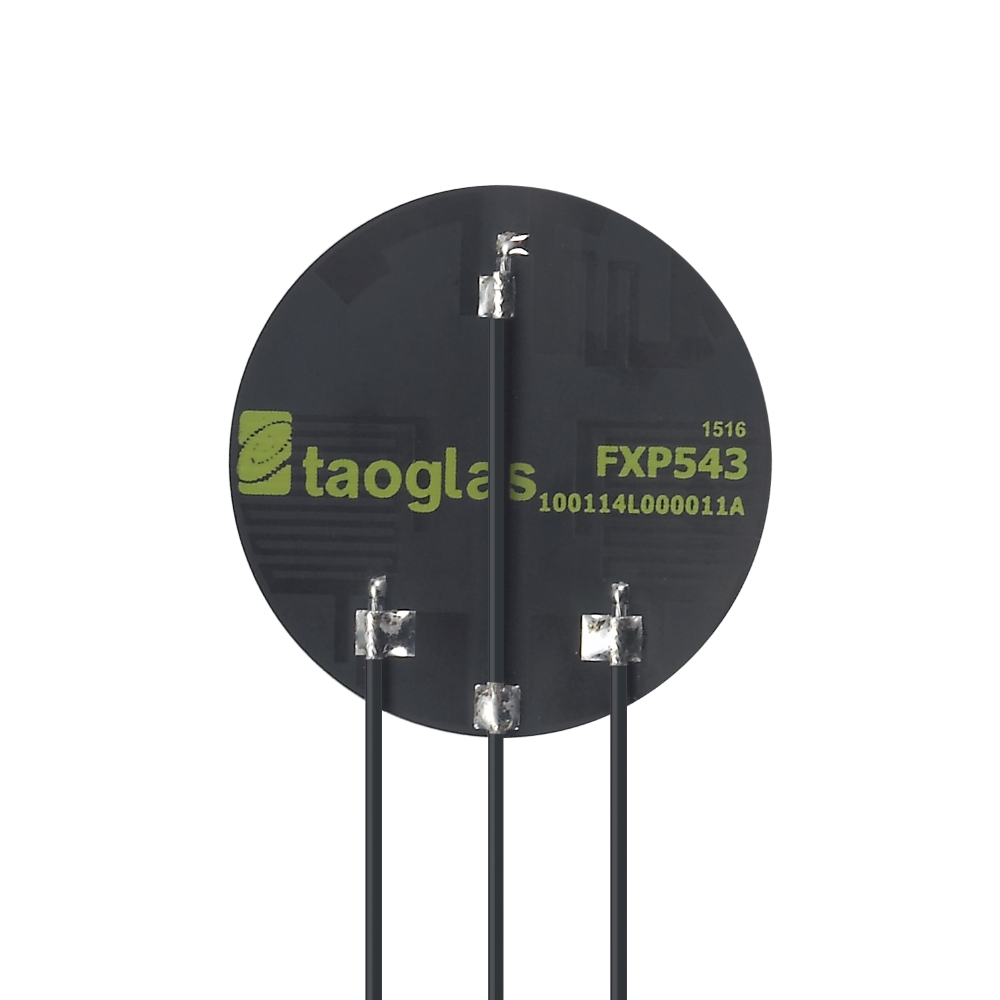

Venti FXP543 2.4/5.8GHz Circular Flexible Antenna, 100mm Ø1.37mm, I-PEX MHF® I (U.FL)
FXP543.A.07.A.001Venti Circular 2.4/5.8GHz Flexible PCB 3 x MIMO Antenna
2400-2500MHz/5150-5850MHz
I-PEX MHF® I (U.FL comp) – 100mm Ø1.37mm
Ø37mm*0.15mm
FXP543.A.07.A.001
Venti FXP543 2.4/5.8GHz Circular Flexible Antenna, 100mm Ø1.37mm, I-PEX MHF® I (U.FL)
Technical Specification
| Name | Value |
|---|---|
| RoHS | Yes |
| Antenna Type | Embedded Antennas, Wi-Fi/Bluetooth, Combination |
| Mechanical Style | Flex PCB |
| Gain (Max) | 5 |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | I-PEX MHFI |
| Cable Type | 1.37 Coax |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 2400-2500/4900-5800MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 100 |
| Packaging | Carton |
| VSWR | 0 |
| Wi-Fi Bands | 2.4/5.8GHz |
| Length (mm) | 37 |
| Width (mm) | 37 |
| Height (mm) | 0.15 |
| Weight (g) | 2.4 |
