WCM.01.0151 2.4GHz Button Antenna with RP-SMA(M)

WCM.01.0151

2400MHz to 2500MHz Antenna
Wi-Fi / Bluetooth
60%+ Efficiency
RP SMA(M) Connector
IP67
Omnidirectional

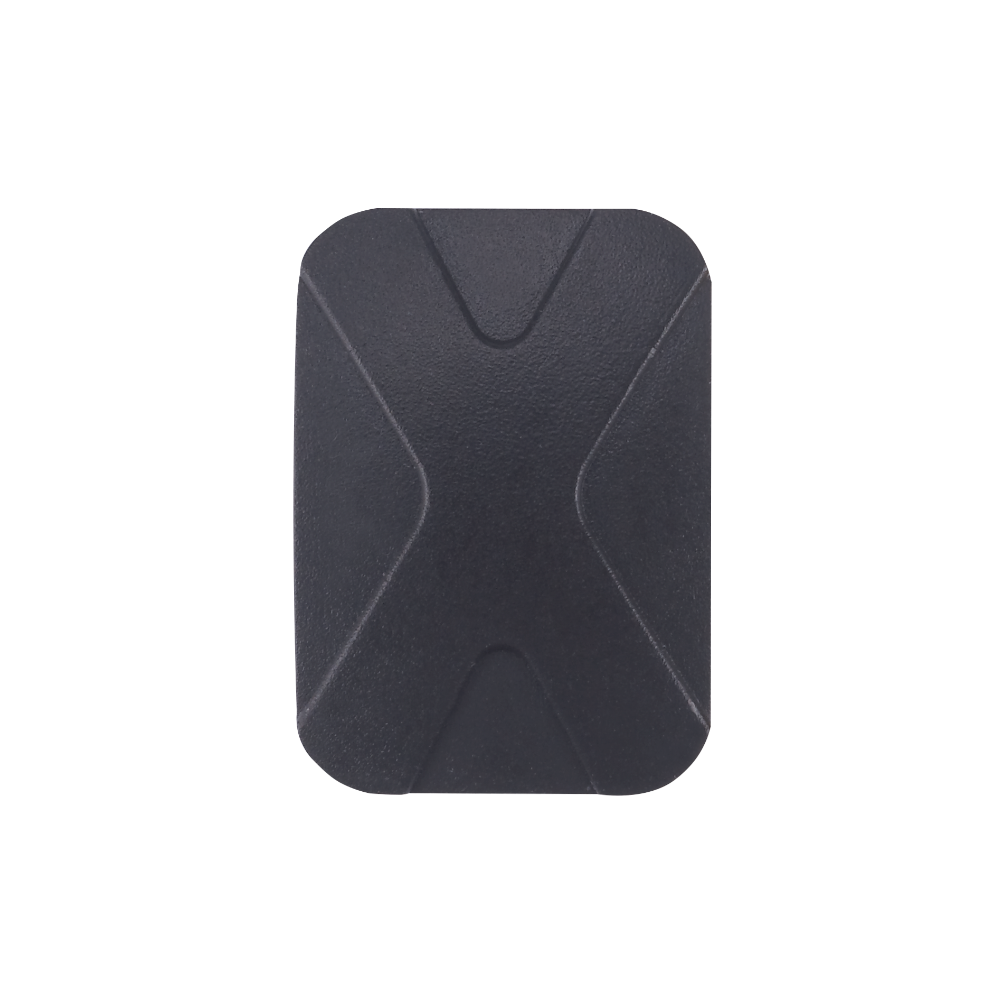

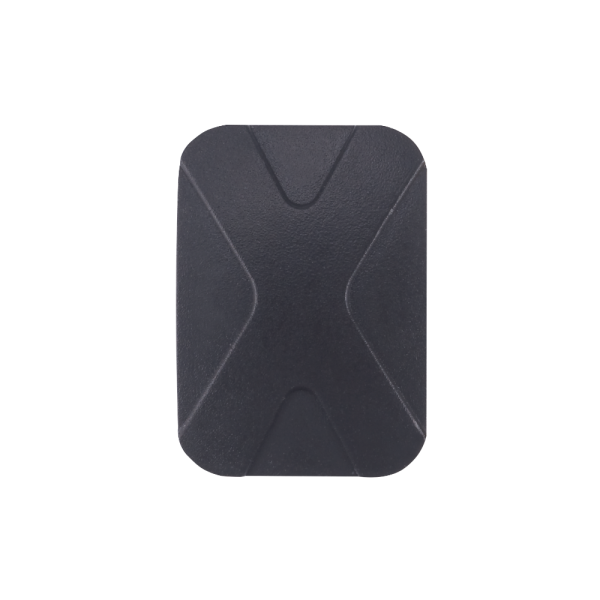

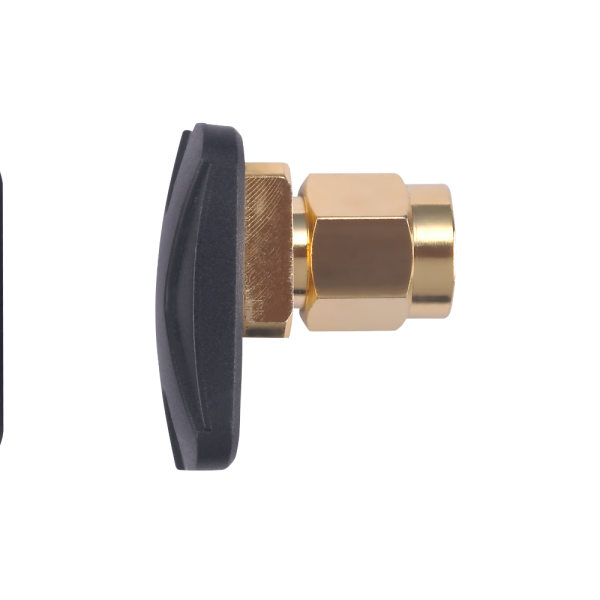

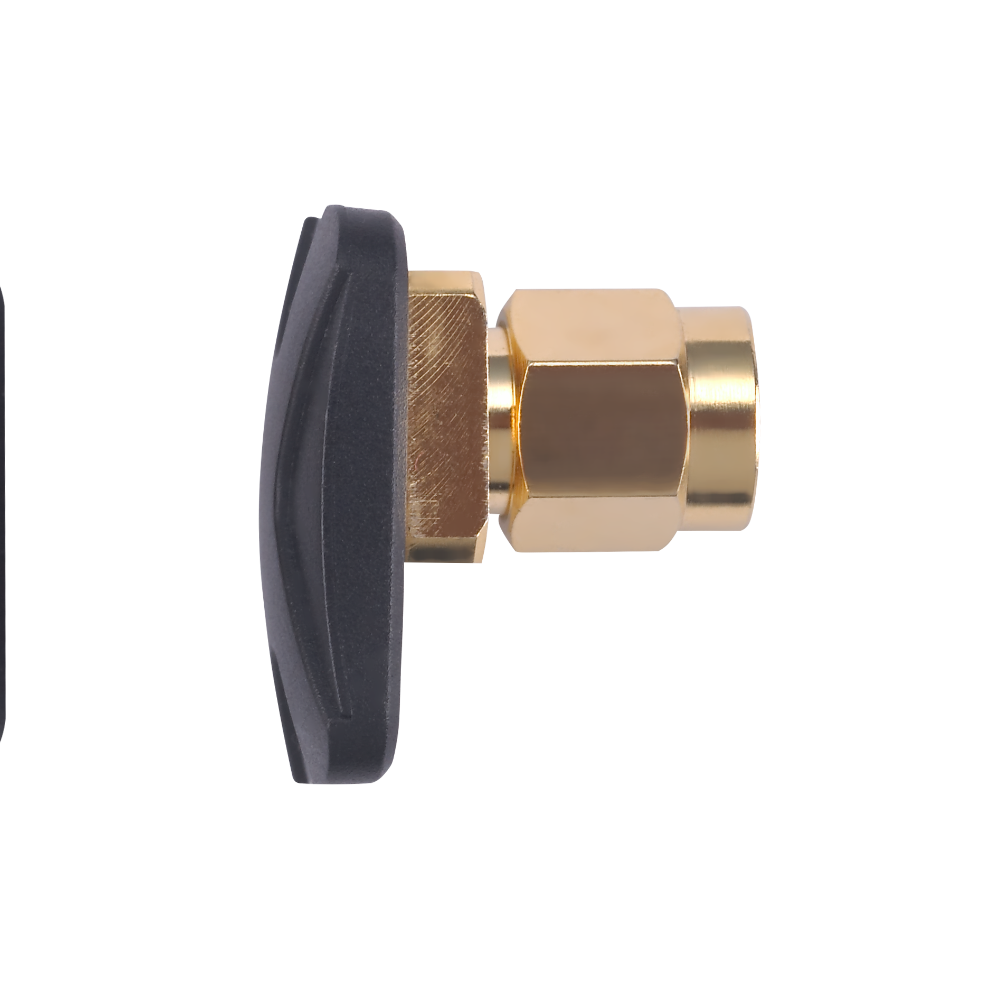

Image WCM.01.0151

WCM.01.0151

WCM.01.0151 2.4GHz Button Antenna with RP-SMA(M)

Overview

Smallest RP-SMA(M) External Antenna On the Market

The WCM.01 2.4GHz antenna is the smallest RP-SMA(M) external antenna on the market, fitting into spaces no other traditional monopole, dipole or rubber ducky antenna can go. A unique PIFA design ensures omnidirectional gain across 2.4GHz to 2.5GHz ensuring constant reception and transmission to make it a great Wi-Fi antenna for 2.4GHz Wi-Fi and Bluetooth applications. This antenna features greater than 60% efficiency when connected directly to the ground plane of the device.

Typical Applications include:

  • Application Points
  • Routers
  • IoT M2M devices
  • Smart home applications.

This antenna comes with an RP SMA(M) to be compatible with most Wi-Fi applications and routers in the market. The WCM.01 antenna is also IP67 water resistant. The ideal position for the antenna to radiate is mounted clear of metal. Connector is customizable. Contact us at your regional Taoglas sales office for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type RP-SMA
Connector Body Style Straight
Polarity RHCP, Linear
Frequency Range 2.4GHz
Connector Polarity Reverse
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 3.8
Wi-Fi Bands 2.4GHz
Length (mm) 19.8
Width (mm) 16.4
Height (mm) 14.3
Weight (g) 6
