25*25*4mm WDP.2458.25.4.B.02 2.4/5.8GHz Ceramic Patch Antenna

WDP.2458.25.4.B.02

Passive 2.4/5.8GHz Ceramic Patch Antenna
2400~2500MHz Peak Gain 6dBi
5150~5850MHz Peak Gain 8dBi
Mounted with pin and adhesive tape
Automotive TS16949 Production and Quality Approved
Dims: 25*25*4mm
Patent Pending

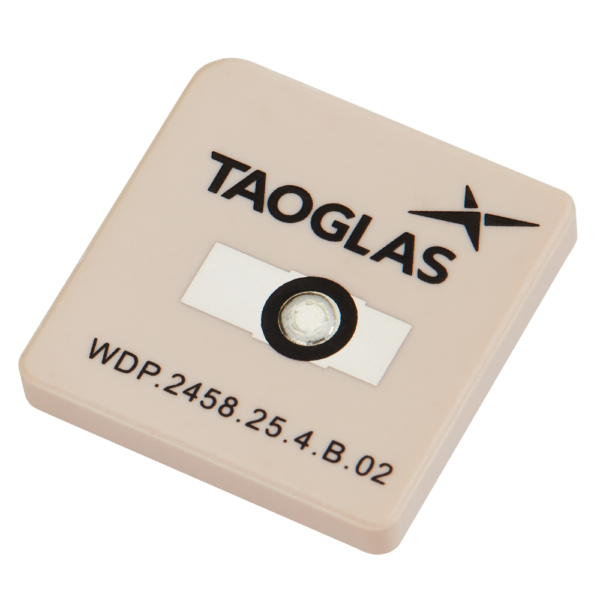

Image WDP.2458.25.4.B.02

WDP.2458.25.4.B.02

25*25*4mm WDP.2458.25.4.B.02 2.4/5.8GHz Ceramic Patch Antenna

Overview

This unique patent-pending high gain, high efficiency embedded ceramic patch antenna is designed for professional Wi-Fi dual-band IEEE 802.11 applications. It is mounted via pin and double-sided adhesive. The passive patch offers stable high gain response from 4 dBi to 6dBi on the 2.4GHz band and from 5dBi to 8dBi on the 5 ~6 GHz band. Efficiency values are impressive also across the bands with on average 60%+. The WDP.25’s high gain, high-efficiency performance is the perfect solution for directional dual-band WiFi application which need long-range but which want to use small compact embedded antennas. The much higher gain and efficiency of the WDP.25 over smaller less efficient more omni-directional chip antennas (these typically have no more than 2dBi gain, 30% efficiencies) means it can deliver a much longer range over a wide sector.

Typical applications are
  • Access Points
  • Tablets
  • High definition high throughput video streaming routers
  • High data MIMO bandwidth routers
  • Automotive
  • Home and industrial in-wall WiFi automation
  • Drones/Quad-copters
  • UAV
  • Long range
  • WiFi remote control applications

The WDP patch antenna has two distinct linear polarizations, on the 2.4 and 5GHz bands, increasing isolation between bands. Custom tuned versions for different ground-planes and housing environments can be made subject to a minimum order quantity. Contact your regional Taoglas office for support to integrate and test this antenna performance in your device.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Wi-Fi/Bluetooth
Mechanical Style Patch
Gain (Max) 8
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Pin
Connector Body Style Straight
Polarity Linear
Frequency Range 2400-2500/4900-5800MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tray
VSWR 0
Wi-Fi Bands 2.4/5.8GHz
Length (mm) 25
Width (mm) 25
Height (mm) 4
Weight (g) 9.5
