Taoglas EDGE™ EC55 System-on-Module

EC55

4G/3G/2G, NB-IoT, CatM, GNSS and Bluetooth Multi-Sensor SoM
Fully integrated, pre-certified, technology stack of hardware, firmware and cloud platform.
Cut time-to-market by up to 80%.

• Can help you build your IoT prototype in minutes
• Reduce the cost and complexity of introducing IoT strategies into enterprises avoiding lengthy design, development, integration, testing, and customization spend with fast time-to-value
• Provides real-time sensor and positioning data and can enable real-time intelligence from the IoT Edge instantly

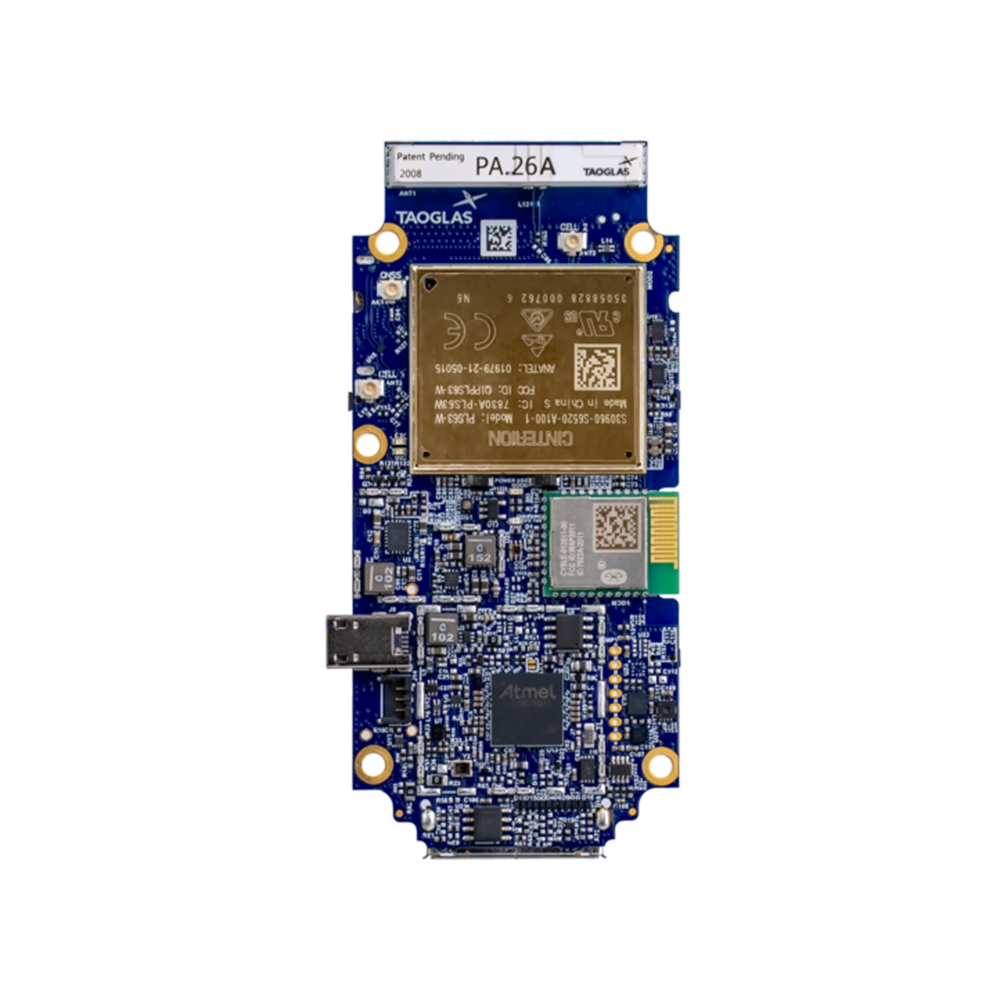

Image EC55

EC55

Taoglas EDGE™ EC55 System-on-Module

Overview

EDGE™ EC55, an award-winning, proven System-on-Module

The Taoglas EDGE™ EC55 is an award-winning proven System-on-Module (SoM), which offers the ultimate degree of flexibility and scalability while saving costs and time-to-market for OEMs and enterprises. Developed by industry experts and with proven commercial solutions across healthcare, industrial, transportation, agriculture, and smart city applications, you can be up and running with the Taoglas EDGE EC55 pre-certified SoM in minutes and the IoT design process can literally become as simple as activating a SIM card. The solution is supported by Taoglas Insights™ – a cloud management platform – which provides a scalable end-to-end solution for easy control and management of connected devices.

Key features

• Small Form Factor
• Ultra-low power consumption
• Highly secure architecture
• Cost-effective end-to-end System-on-Module with cellular 4G, GNSS, Bluetooth, and on-board environment and movement sensors
• Plug-and-play with fast-time-to value for a variety of IoT applications
• Device, data, SIM, and sensor management via Taoglas Insights™ platform
• Secure provisioning and certificate management
• Over-the-air (OTA) firmware updates and device diagnostics
• Deployment lifecycle control
• Easy 3rd party integration with AI and ML applications
• Pre-certified with Tier-1 mobile carriers

Technical Specification
Name Value
Connectivity Cellular CAT-1 / CAT-M / LoRa / SubGHz
Connectivity GNSS GPS/GLONASS/Galileo/BeiDou
Connectivity Wireless BLE 4.2
Connectivity Wired RS485, CAN, UART, I2C, SPI, GPIO
Sensors Mov Accelerometer / Gyroscope / Magnetometer
Sensors Env Temperature / Humidity / Light / Atmospheric Pressure /
Length (mm) 94
Width (mm) 50
Height (mm) 3.2

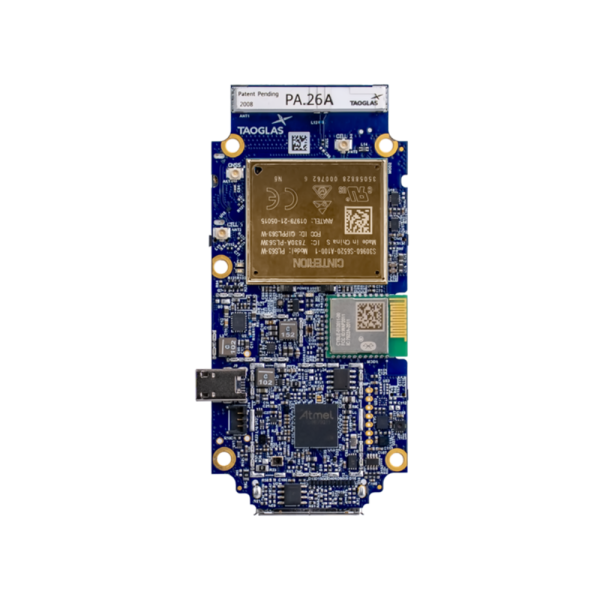

Image EC55
