Taoglas EDGE™ Connect with US 4G/3G Cellular Connectivity

EC40B

Instant IoT with the Taoglas EDGE Connect enables real-time insights
and intelligence to help your enterprise:

  • Save costs
  • Increase revenue
  • Enhance compliance

Comes preconfigured with a US 4G/3G cellular data plan and EDGE Insights™ platform

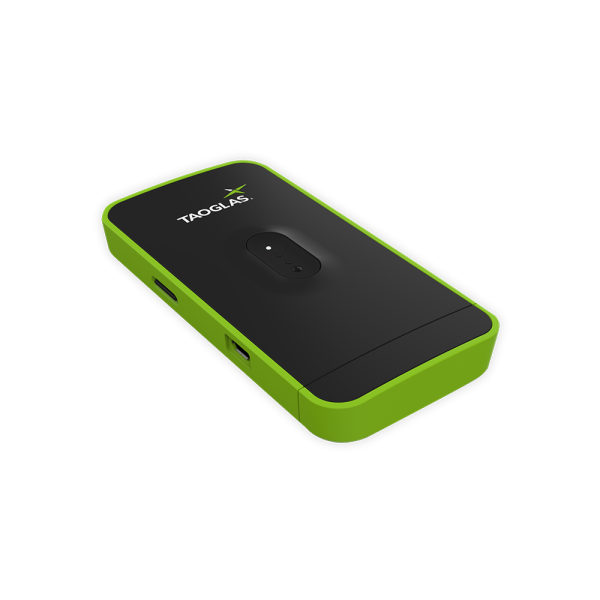

Image EC40B

EC40B

Taoglas EDGE™ Connect with US 4G/3G Cellular Connectivity

Overview

Taoglas EDGE™ Connect with US Cellular Connectivity

The Taoglas EDGE Connect solution is a next-generation IoT hardware and software platform that provides full cellular, Bluetooth and GPS capabilities with sensor integration – all from an ultra low-power device. Built with EDGE Insights cloud-based management platform, it provides a scalable out-of-the-box solution for easy control, maintenance and secure management for a vast variety of IoT applications.

Key Features:

  • One solution with secure IoT device architecture, Data-as-a-Service and connectivity all in one pre-certified, low-power, high-performance package.
  • Supports a vast variety of IoT deployment scenarios out-of-the-box.
  • Reduces the cost and complexity of introducing IoT strategies into enterprises – avoiding lengthy design, installation, activation, device management, services and customization spend with fast time-to-value.
  • Integrated onboard sensors such as temperature, humidity, accelerometer, gyroscope, magnetometer, light and air pressure.
  • Cellular support for LTE, 3G, 2G, Cat-M, NB-IoT to give a global coverage footprint.
  • Optional GNSS expansion board for high-precision location services.
  • Contains rechargeable battery with multi-year battery performance.
  • Predictive insights that drive optimization and new revenue opportunities.
  • Built with EDGE Insights cloud-based management platform, EDGE Connect provides real-time sensor and positioning data and can enable intelligence from the EDGE instantly.
Video
Technical Specification
Name Value
Connectivity Cellular LTE US with 3G fallback
Connectivity GNSS GPS/GLONASS/Galileo/BeiDou (use external antenna)
Connectivity Wireless No
Connectivity Wired RS485, CAN, UART, GPIO, PWM, ADC, I2C, SPI
Sensors Mov Accelerometer / Gyroscope / Magnetometer
Sensors Env Temperature / Humidity / Light / Atmospheric Pressure /
Length (mm) 110.5
Width (mm) 56
Height (mm) 20
Weight (g) 100

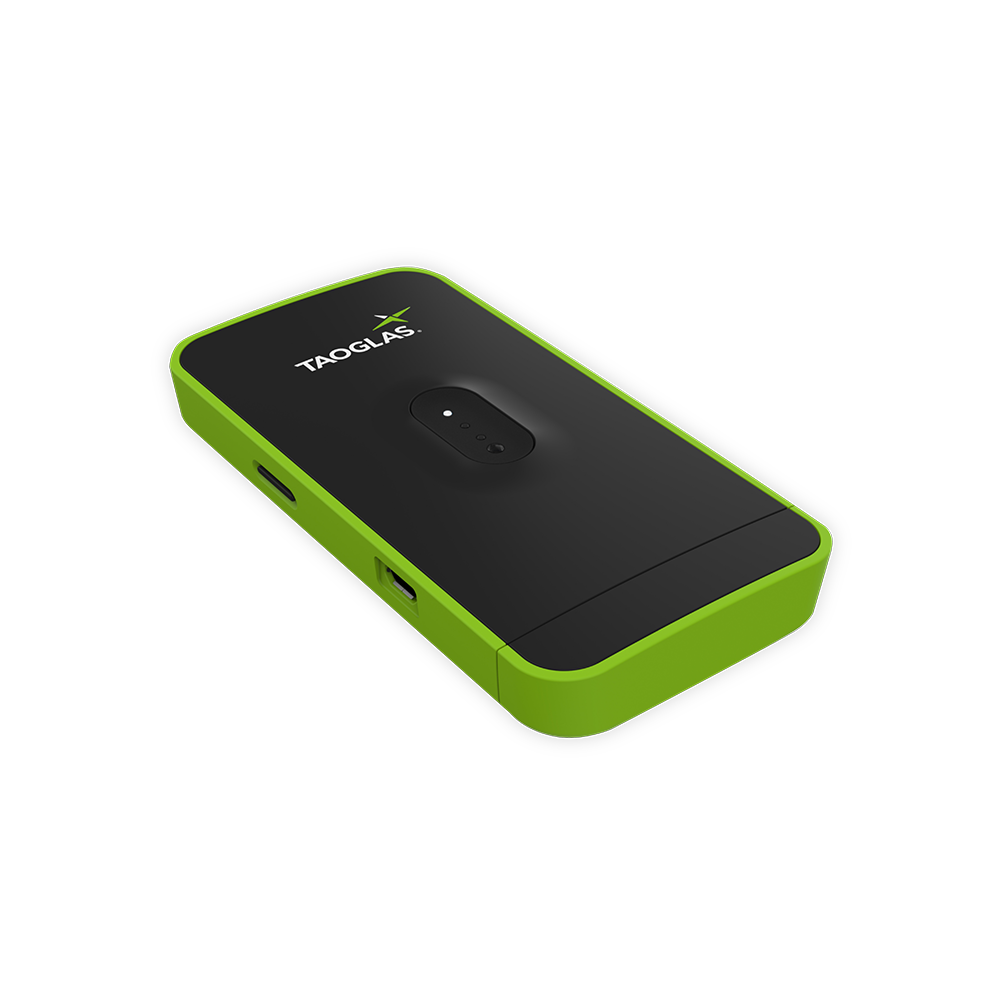

Image EC40B
