Hercules G20 3G/2G Cellular Wall Mount Antenna, 3M NFC-200

G20.B.305111.wmc

Covert Wall Mount 3G/2G Antenna
824~960/1710~2170MHz
Unique High Peak Gain on all Bands 2dBi with Bracket
Wide-band High Efficiency >37% with Bracket
No Ground Plane Required
3m, NFC-200 SMA(M)ST PLUG
Omnidirectional
Bracket length: 92mm
IP65 Rated Enclosure
RoHS & REACH Compliant

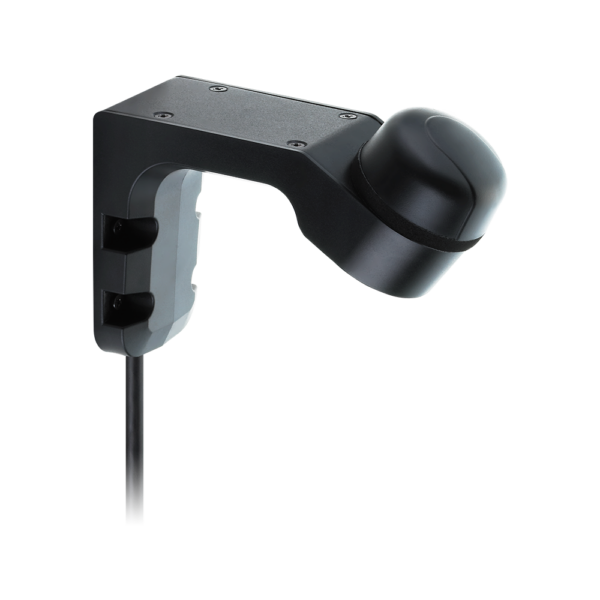

Image G20.B.305111.wmc

G20.B.305111.wmc

Hercules G20 3G/2G Cellular Wall Mount Antenna, 3M NFC-200

Overview

The Wall Mount G20 Hercules Gen II is a high-performance covert wall-mounted cellular antenna for 2G and 3G applications. This antenna can easily fix to a wall or metal surface. The Wall Mount G20 antenna has omnidirectional radiation patterns across all bands ensuring constant reception and transmission.

Applications
  • Smart City Outdoors Utility and Traffic Management
  • On Building Wall
  • On Street

Metal Cabinet PC housing is IP65 rated, resistant to vandalism and direct attack. The bracket allows complete concealment of the cable for a more secure integration and cleaner installation. The cable can also be routed out of the back wall of the bracket into the interior of the mounting wall for added security against vandalism. The standard version comes with 3 meters extremely low loss NFC200 (0.3dB against 0.7dB per meter for RG58) to allow for flexibility of placement. The cable and connector can be completely customized.

Technical Specification
Name Value
Antenna Type Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall Mount
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 824-896/880-960/1710-1880/1850-1990/1920-2170MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 2:1
IP Rating IP65
RoHS Yes
Gain 3.1
Length (mm) 49
Width (mm) 49
Height (mm) 29
Weight (g) 340

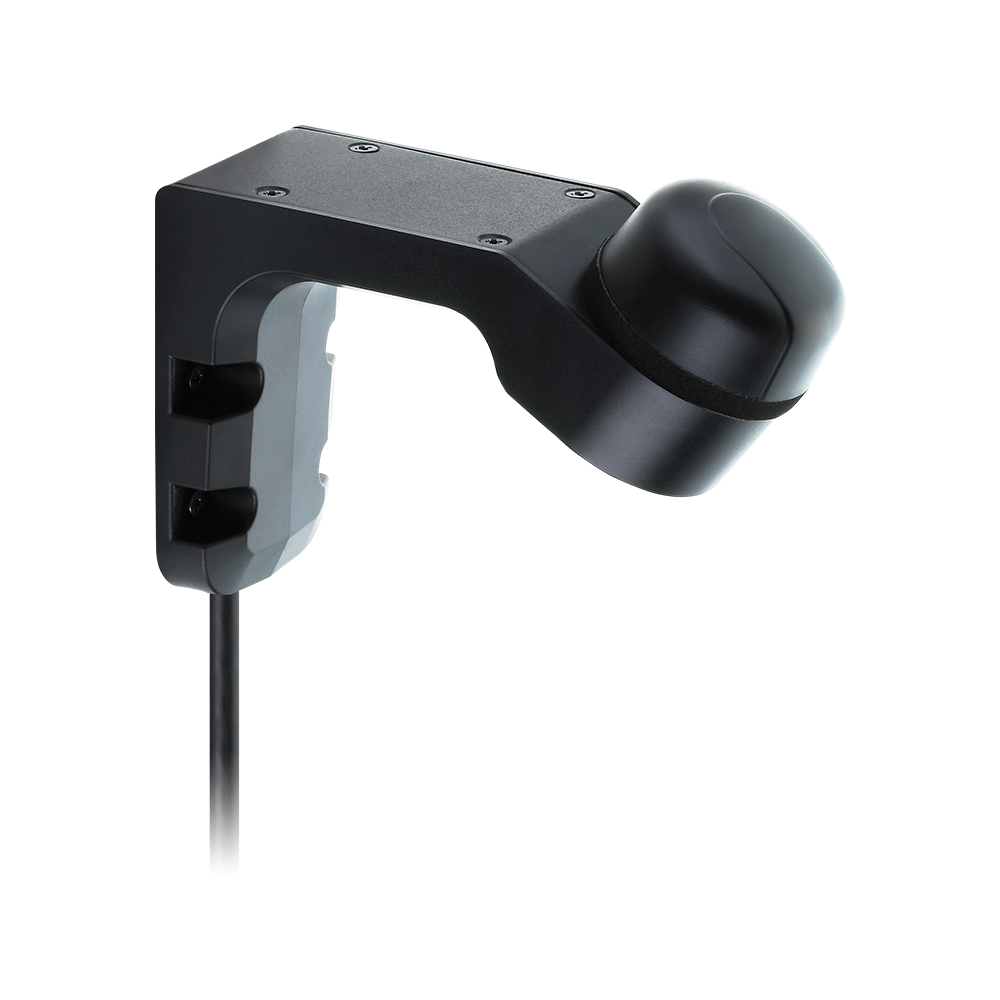

Image G20.B.305111.wmc
