Taoglas EDGE™ IG25 Industrial System-on-Module

IG25

Multi-Sensor Industrial SoM with 4G/3G/2G NB-IoT, CatM, GNSS, and Wi-Fi Connectivity

• Help build your industrial IoT application in minutes
• Reduce the cost and complexity of introducing IoT solutions for industrial applications. Avoid lengthy design, development, integration, and testing processes with fast time-to-value, even for complex custom solutions
• Industrial communication protocols with integrated digital and analog I/Os
• Provides real-time sensor and positioning data and can enable real-time intelligence from the IoT Edge Instantly
• Fully integrated, pre-certified, technology stack of hardware, firmware, and cloud platform

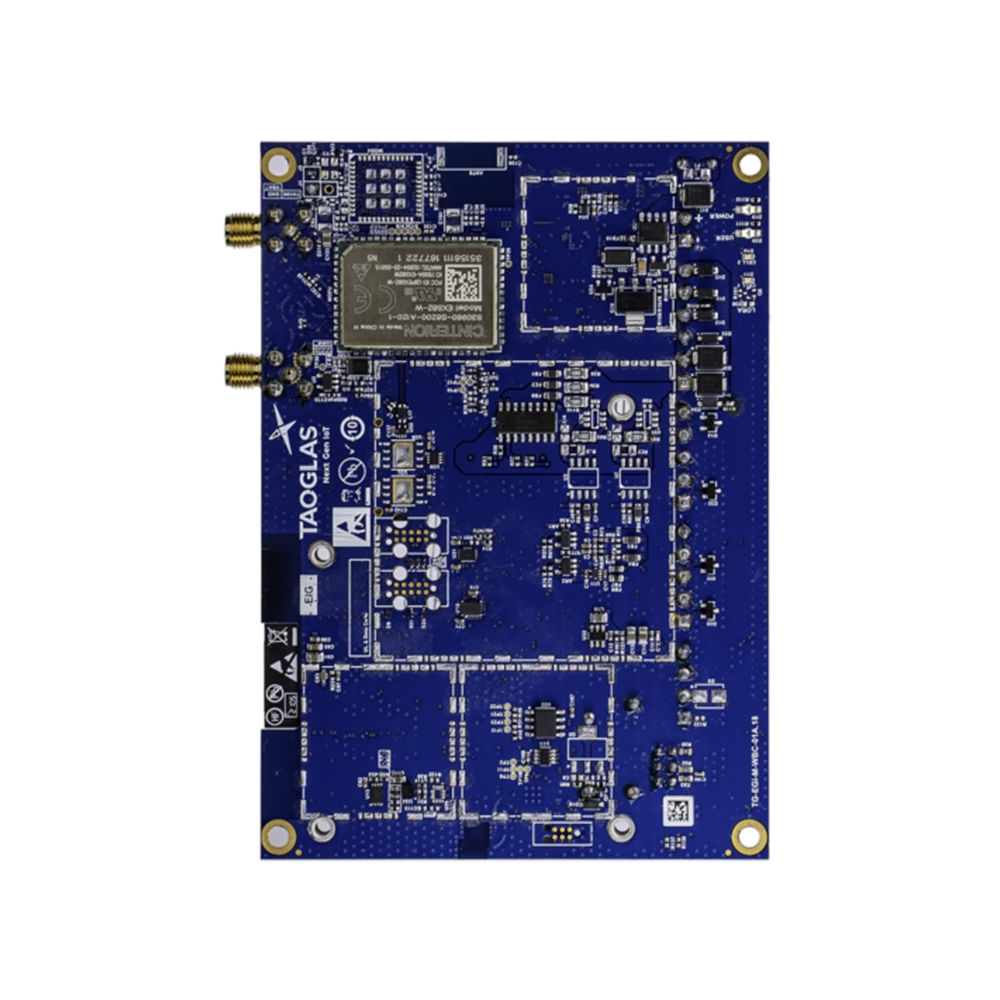

Image IG25

IG25

Taoglas EDGE™ IG25 Industrial System-on-Module

Overview

Taoglas EDGE™ IG25 Industrial System-on-Module Compact Multi Sensor SoM

The Taoglas EDGE™ IG25 is a compact multi-sensor SoM with cellular, Wi-Fi, and Bluetooth connectivity, providing ultra-low power consumption in a small form factor. It features an Extensa dual-core 240MHz processor, optimized firmware/OS RTOS, validated applications libraries (Real-Time Performance), and comes with an advanced onboard analytics engine. The Taoglas EDGE IG25 offers the ultimate degree of flexibility and scalability while saving costs and time to market for OEMs and enterprises. Developed by industry experts and with proven commercial solutions across healthcare, industrial, transportation, agriculture, and smart city applications, you can be up and running with the Taoglas EDGE IG25 pre certified SoM in minutes.

The IoT design process can literally become as simple as activating a SIM card. The solution is supported by Taoglas Insights™ – a cloud management platform – which provides a scalable end-to-end solution for easy control and management of connected devices.

Key features

• Industrial communication protocols
• Integrated digital and analog I/Os
• Industrial grade connectors
• Low power consumption
• Global cellular connectivity
• Highly secure architecture
• Integration to Taoglas Insights platform
• Small Form Factor
• Ultra-low power consumption
• Cost-effective end-to-end System-on-Module with cellular 4G, GNSS, Wi-Fi, Bluetooth, and on-board movement sensors
• Plug-and-play with fast-time-to value for a variety of IoT applications
• Device, data, SIM, and sensor management via Taoglas Insights™ platform
• Secure provisioning and certificate management
• Over The Air (OTA) firmware updates and device diagnostics
• Deployment lifecycle control
• Easy 3rd party integration with AI and ML applications
• Pre-certified with Tier-1 mobile carriers

Technical Specification
Name Value
Connectivity Cellular CAT-1 / CAT-M / LoRa / SubGHz
Connectivity GNSS GPS/GLONASS/Galileo/BeiDou
Connectivity Wireless BLE 4.2 / BLE 5.1
Connectivity Wired RS485, CAN, UART, GPIO, PWM, ADC, I2C, SPI
Sensors Mov Accelerometer / Gyroscope / Magnetometer
Sensors Env No
Length (mm) 125.2
Width (mm) 89.6
Height (mm) 41.5

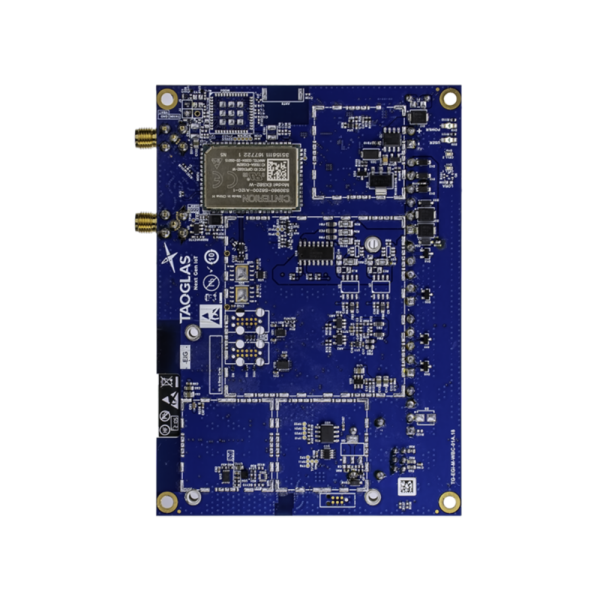

Image IG25
