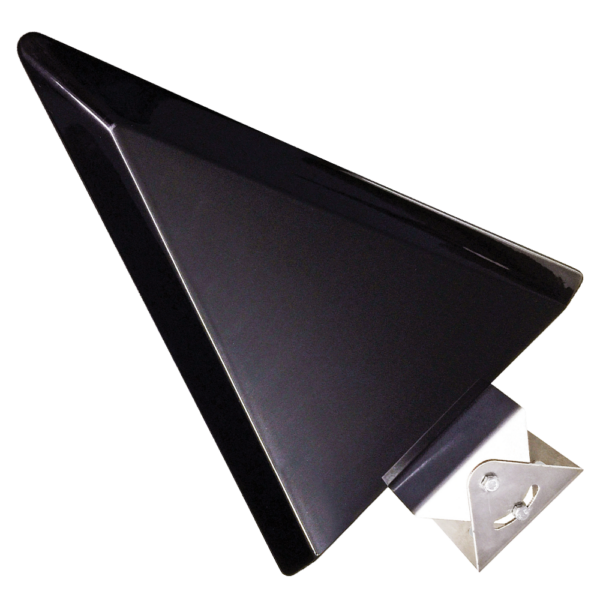

Image LPDA.02.032111


Engager LPDA.02 7dBi 698-3900MHz Wideband Directional LPDA Antenna

The LPDA.02.032111 Engager is a wide-band directional LPDA exterior antenna that operates within the 698-3900MHz frequency bands. It is an innovative and futureproof solution, ideal for LTE 4G and 2G/3G networks as well as 2.4GHz Wi-Fi. This wideband design eliminates the need to purchase different antennas for each frequency which simplifies installations since the same antenna can be used for a wide array of wireless applications where extensive coverage is desired. The LPDA.02 has a 70° beamwidth in both orthogonal planes.

The ABS external housing is robust, UV resistant and sealed to an IP65 rated standard. For various mounting options, it is supplied with a tilt and swivel wall and pole brackets. The LPDA.02 has been tested for wind resistance up200 km/LTE 4G and 2.4GHz Wi-Fi applications demand high-speed data uplink and downlink where required, two LPDA.02 antennas can be mounted in space at 90° to create a MIMO arrangement. Cable type, length, and connectors are customizable for large order volumes. Please contact your regional Taoglas sales office for support.
