Engager LPDA.03 7dBi 450-6000MHz Wideband Directional LPDA Antenna

LPDA.03.032111

Frequency: 450-6000MHz
Peak Gain: 7dBi
IP65 Rated ABS Enclosure
Dimensions: 520*630*42mm
Dimensions with Bracket: 520*770*95mm
Cable Length: 300mm
Connector: SMA(M)
RoHS and REACH Compliant

Image LPDA.03.032111

LPDA.03.032111

Engager LPDA.03 7dBi 450-6000MHz Wideband Directional LPDA Antenna

Datasheet
Overview

The LPDA.03.032111 Engager is a wideband directional LPDA exterior antenna that operates within the 450-6000MHz frequency bands. It is an innovative and futureproof solution ideal for 5G/4G and 2G/3G networks as well as 2.4GHz and 5.8GHzWi-Fi.This wideband design eliminates the need to purchase different antennas for each frequency which simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired. The LPDA.03 has a 70° beamwidth in both orthogonal planes.

The ABS external housing is robust, UV resistant and sealed to an IP65 rated standard. For various mounting options, it is supplied with a tilt and swivel wall and pole brackets. The LPDA.03 has been tested for wind resistance up 200 km/h.LTE 4G and 2.4GHz and 5.8GHz Wi-Fi applications demand high-speed data uplink and downlink and where required, two LPDA.03 antennas can be mounted in space at 90° to create a MIMO arrangement. Cable type, length, and connectors are customizable for large order volumes. Please contact your regional Taoglas sales office for support.

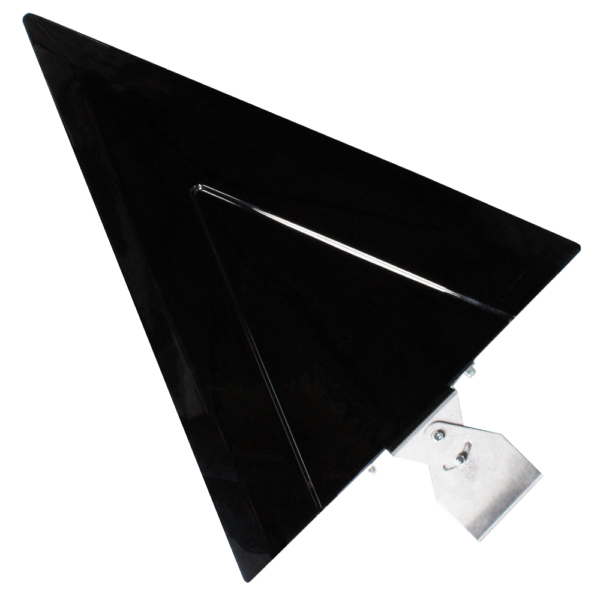

Image LPDA.03.032111
