Image LPDA.05.032111

LPDA.05.032111

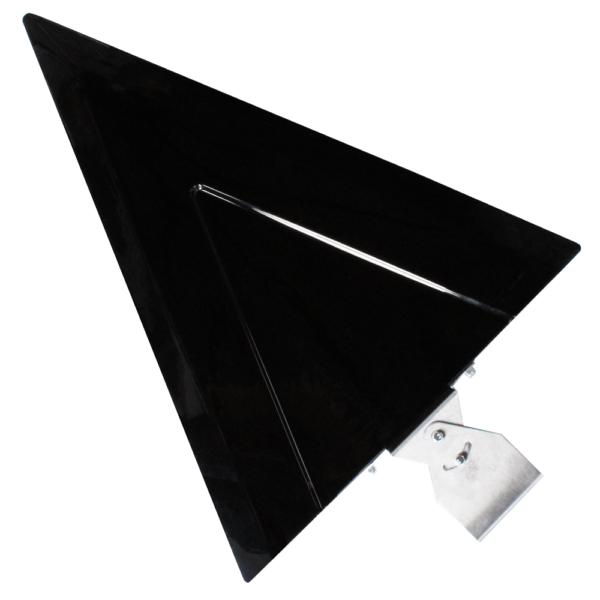

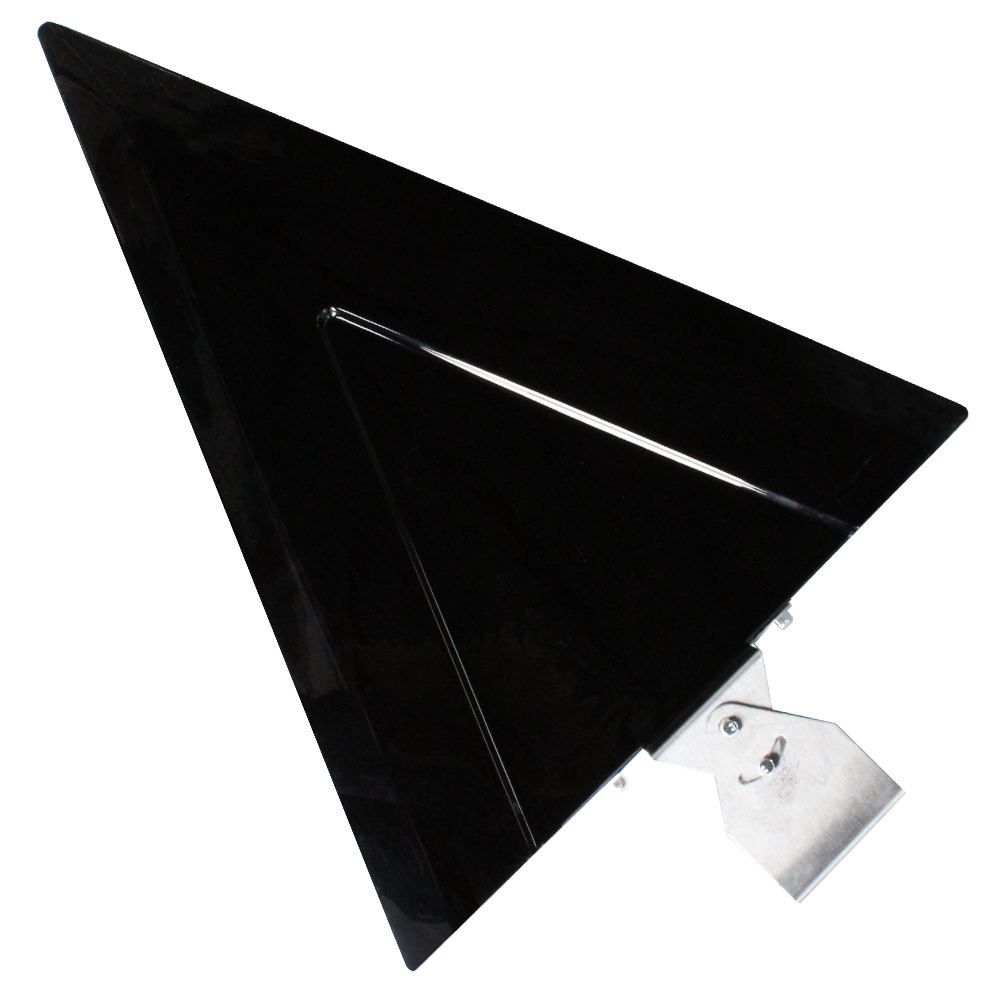

Engager LPDA.05 600-6000MHz Wideband Directional LPDA Antenna

The LPDA.05.032111 is a wideband directional LPDA exterior antenna that operates within the 600-6000MHz frequency bands. It is an innovative and future proof solution ideal for 4G/5G and also 2G/3G networks as well as 2.4GHz and 5.8GHz Wi-Fi. This wideband design eliminates the need to purchase different antennas for each frequency, in turn simplifying installations since the same antenna can be used for a wide array of wireless applications when wide coverage is desired. The LPDA.05 has a 70° beamwidth in both orthogonal planes.

The ABS external housing is robust, UV resistant and sealed to an IP65 rated standard. For various mounting options, it is supplied with a tilt and swivel wall and pole brackets. The LPDA.05 has been tested for wind resistance up 200 km/h. 4G/5G and 2.4GHz and 5.8GHz Wi-Fi applications demand high-speed data uplink and downlink and where required, two LPDA.05 antennas can be mounted in space at 90° to create a MIMO arrangement. Cable type, length, and connectors are customizable for large order volumes. Please contact your regional Taoglas Customer support Team for more information
