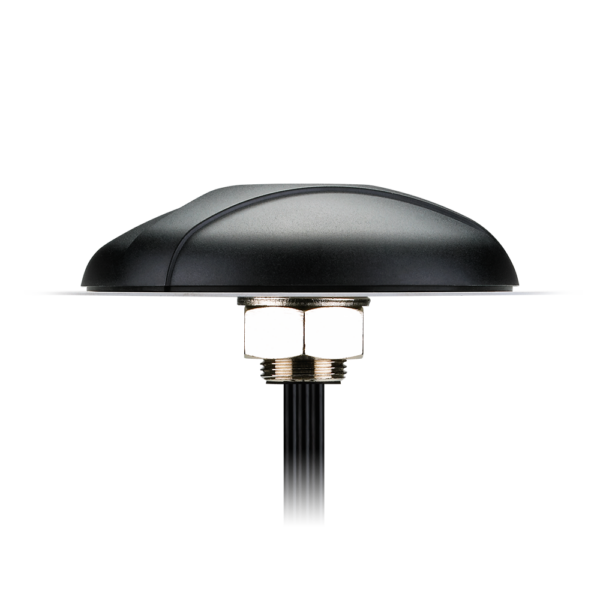

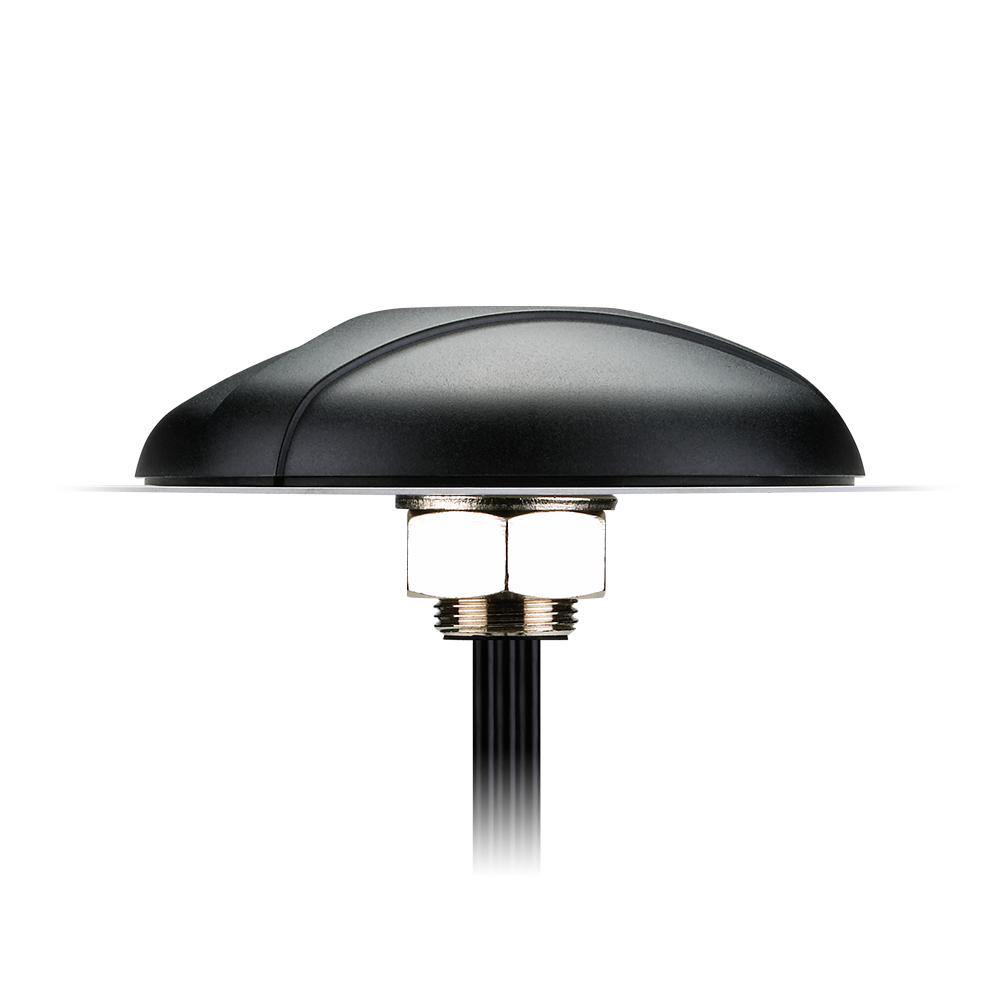

The Spartan MA671 Public Safety 3*MIMO antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use in remote monitoring and public safety applications. The Spartan 3 x MIMO antenna is unique in the market because it combines three 4.5~4.9GHz antenna elements in a heavy-duty structure with high efficiency in a low profile compact format. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted. Two of the antenna elements are vertically polarized and one is horizontally polarized to maximize diversity gain and MIMO throughput. For industries such as remote monitoring, smart meter systems, construction equipment, public safety at only 40mm high, the Spartan provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments.
Spartan MA671 3in1 Permanent Mount 4.5-4.9GHz 3xMIMO, 3M CFD-200
MA671.A.CGH.003Spartan Antenna 3in1 Low Profile Permanent Mount
Public Safety
3 * MIMO 4.5 ~ 4.9GHz antenna
2 x vertically polarized elements
1 x horizontally polarized element
Diameter 145.6mm * Height(profile) 35.1mm
Standard Version 3M CFD-200 RP-SMA(M)
No Ground Plane Required
IP67 Waterproof
MA671.A.CGH.003
Spartan MA671 3in1 Permanent Mount 4.5-4.9GHz 3xMIMO, 3M CFD-200
Overview
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | Combination |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 80°C |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | RP-SMA |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 4500MHz To 4900MHz |
| Connector Polarity | Reverse |
| Cable Length (mm) | 3000 |
| Packaging | Box, Carton |
| VSWR | 2 |
| IP Rating | IP67 |
| RoHS | Yes |
| Gain | 3.4 |
| Length (mm) | 147.5 |
| Width (mm) | 145.6 |
| Height (mm) | 35.1 |
| Weight (g) | 1246 |
