Taoglas EDGE™ RTK Starter Kit with High Precision GNSS, RTK with US 4G/3G Cellular Connectivity

ES10

Build a cloud-powered IoT application quicker with the Taoglas EDGE pre-certified RTK Starter Kit

  • The industry’s most comprehensive RTK Starter Kit
  • Includes cellular, Bluetooth, onboard sensors, multi-band GNSS and RTK and cloud-based management platform
  • Comes preconfigured with an active cellular data plan
Image ES10

ES10

Taoglas EDGE™ RTK Starter Kit with High Precision GNSS, RTK with US 4G/3G Cellular Connectivity

Overview

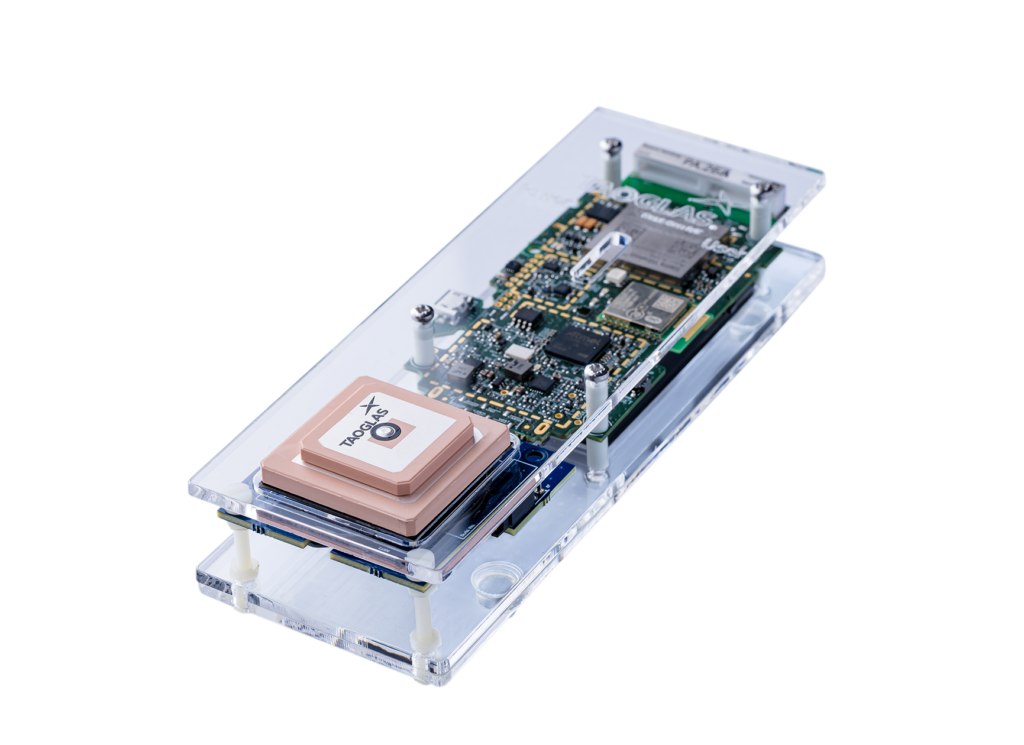

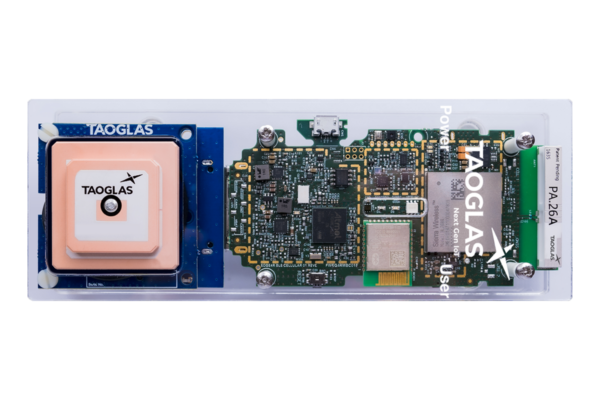

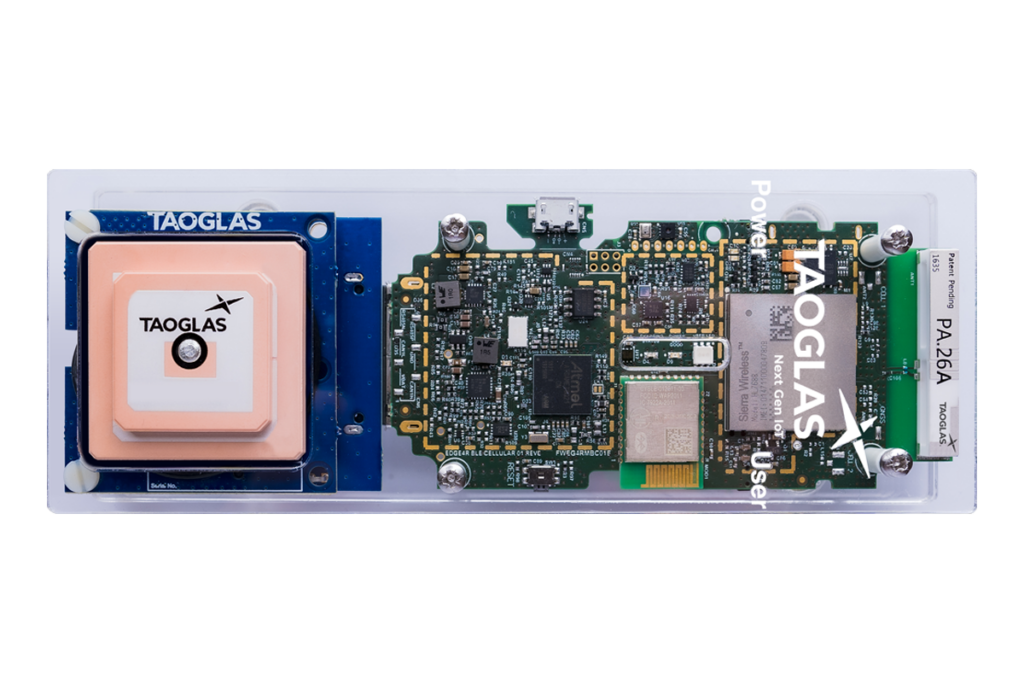

Taoglas EDGE™ RTK Starter Kit

The industry’s most comprehensive IoT Starter Kit including cellular, Bluetooth, onboard sensors, multi-band GNSS and RTK, and cloud-based management platform – pre-configured with an active cellular data plan.

Features:

  • Integrated onboard sensors such as temperature, humidity, accelerometer, gyroscope, magnetometer, light and air pressure
  • Cellular support for LTE, 3G, 2G, Cat-M, NB-IoT to give a global coverage footprint
  • Contains rechargeable battery with multi-year battery performance
  • Predictive insights that drive optimization and new revenue opportunities
  • Built with EDGE Insights™ cloud-based enterprise-level software platform with network, sensor, security and data management
  • Completely cloud configurable EDGE hardware (no need to change device firmware)
  • Easy third-party sensor and machine interfacing and integration through server-side sensor management system
  • Over-the-Air (OTA) updates and device diagnostics
  • Supported by a full IoT security stack, power and device management and Data-as-a-Service out of the box
  • High precision GNSS with RTK capabilities allows for gathering of high precision positioning data quicker
  • Includes one month of EDGE Insights and cellular data subscriptions

To learn more, view our introduction video:





Technical Specification
Name Value
Connectivity Cellular LTE US with 3G fallback
Connectivity GNSS GPS/GLONASS/Galileo/BeiDou/RTK
Connectivity Wireless No
Connectivity Wired RS485, CAN, UART, GPIO, PWM, ADC, I2C, SPI
Sensors Mov Accelerometer / Gyroscope / Magnetometer
Sensors Env Temperature / Humidity / Light / Atmospheric Pressure /
Length (mm) 158.3
Width (mm) 54.3
Height (mm) 42
