Transformer with Common Mode Choke for Battery Management System / 12pin and SMT.
Features:
- Single Channel
- Transformer + CMC
- Working voltage 48Vdc
- Isolation voltage 4300Vdc
BMS Transformer / CMC
TM41229ANL
TM41229ANL
BMS Transformer / CMC
Overview
Common Mode Choke (CMC) / BMS Transformer for Battery Management

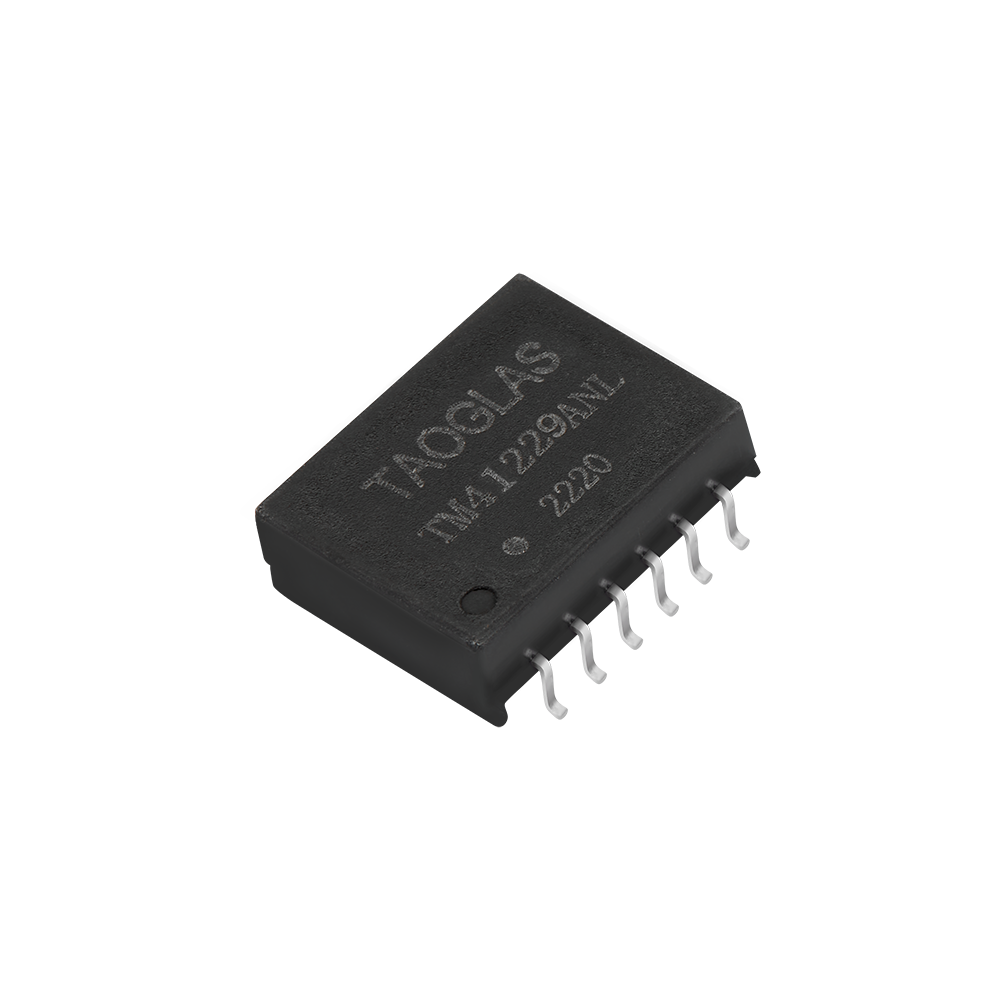

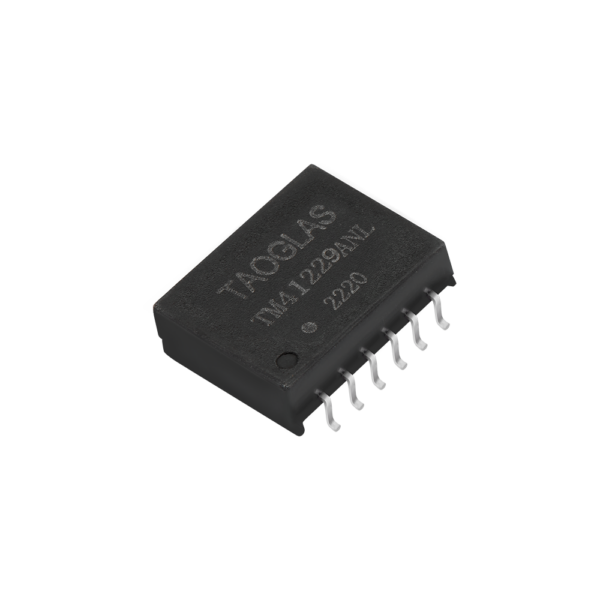

The Toaglas TM41229ANL is a BMS Transformer with Common Mode Choke (CMC) of 12pins, designed to work in automotive environmental conditions with operating temperatures of -40°C to +125°C.
Taoglas product line with over 15+ years of magnetics design and manufacturing experience from its team, is providing services to customers with a wide range of applications.
Typical Applications of CMC / BMS Transformer includes:
- Electric Vehicle
- Energy Storage Systems
- Data Center UPS
- Solar energy storage
- Renewable Energy
Taoglas offers a full line of BMS transformers, and common mode chokes for energy storage systems that require serial port safety isolation and EMI noise suppression. These transformers are designed for battery systems with large voltage differences that demand component-to-component isolation.
The Taoglas BMS Transformers portfolio is intended to perform in highly energy-efficiency modern vehicles such as EVs, HEVs, and PHEVs. All Taoglas parts meet AEC-Q200 requirements for automotive applications.
For more information on the range of products or for assistance with integration, contact your regional Taoglas customer support team.
All Taoglas magnetic products are UL Certified.
Video
Technical Specification
| Name | Value |
|---|---|
| Application | Battery Management System |
| Turns Ratio - Primary Secondary |
1CT:1CT |
| Inductance | 150 µH |
| Number of Channels | 2 |
| Working Voltage (VDC) | 1600 VDC |
| Isolation Voltage (VDC) | 4300 VDC |
| Temperature Range | -40°C to 125°C |
| Length (mm) | 14.8 |
| Width (mm) | 14.7 |
| Height (mm) | 4.8 |
| Mounting Style | SMD/SMT |
