RV CONNECTIVITY

Taoglas LoPro® RV Combination Antenna

The Taoglas LoPro® series of combination antennas are designed to enhanced the connectivity options available to you for your recreational vehicle. With up to 8-in-1 connections available, in combinations of GPS, 5G/4G MIMO, Wi-Fi® MIMO, AM/FM and TV, this next generation, super low profile RV roof mount antenna eliminates the need for multiple antenna installations. In order to upgrade your connectivity capabilities, the Taoglas LoPro® is a direct, drop-in, replacement for legacy router / antenna products.

The super low profile, fully IP67 rated waterproof enclosure is available in black and white. It is manufactured from a robust, UV protected ABS material, ideal for use in any environment or weather condition. The antenna comes with low-loss TGC-1.5DS coaxial pigtail cables as standard, terminating in FAKRA Code C for GNSS, FAKRA Code A for AM/FM/WB, FAKRA Code K for SiriusXM, and with FAKRA Code I for Wi-Fi® and custom cable configurations are possible depending on your requirements.

About the Antennas

Antenna Design

Drawing on years of experience designing high-performance antennas for the transportation industry, Taoglas developed the Taoglas LoPro® antenna series specifically for RVs. True to the Taoglas philosophy, the Taoglas LoPro® series integrates multi-radio technology into a compact, rugged form factor delivering exceptional performance without compromise. The Taoglas LoPro® antenna is designed for seamless integration into vehicles and features a true plug-and-play setup compatible with leading industry routers. At nearly 65% lower in height than standard RV antennas, the Taoglas LoPro® maintains top-tier performance for both cellular and TV reception.

Whether you're navigating urban streets or exploring remote countryside, the Taoglas LoPro™ antenna series offers the reliable connectivity you need on the move and wherever the road takes you.

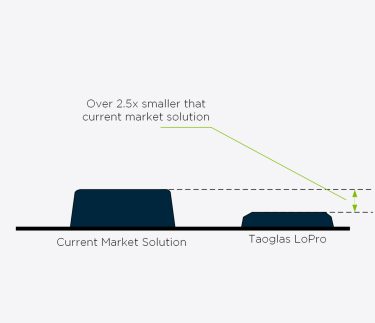

LoPro antenna size comaprison

Key Specifications

Antennas: TV and Radio
5G and 4G/LTE Cellular (600-6000 MHz)
Wi-Fi® (2.4/5.8/7.125 GHz)
GPS

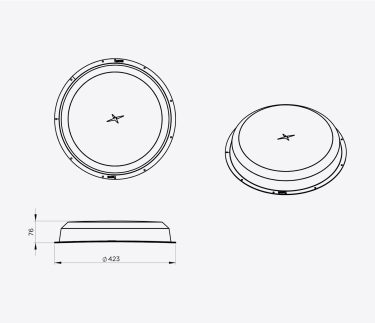

Dimensions: Height Diameter
76 mm 423 mm
3" 16.7"

Cables*: Low loss TGC-1.5DC

Connectors*: SMA(M)/RP-SMA(M), F-type (for TV)

*Cables and Connectors are fully customizable upon request
LoPro Antenna Key Specifications

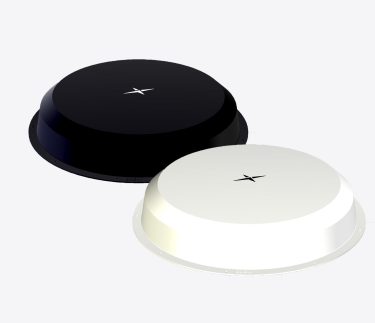

LoPro Series Variations

• MAR110.A/W.001 - Black/White LoPro® Broadcast
Low Profile RV Antenna for TV and Radio - Black Enclosure

• MAR120.A/W.001 - Black/White LoPro® Brodcast 2-in-1
Low Profile RV Antenna with Wi-Fi® and TV & Radio

• MAR140.A.001 - Black LoPro® Connect 4-in-1
Low Profile RV Antenna with 2x 5G MIMO, Wi-Fi®, and TV & Radio

• MAR140.W.001 - White LoPro® Connect 4-in-1
Low Profile RV Antenna with 2x 5G MIMO, Wi-Fi®, and TV & Radio

• MAR150.A/W.001 - Black/White LoPro® Connect 5-in-1
Low Profile RV Antenna with GPS, 2x 5G MIMO, Wi-Fi®, and TV & Radio

• MAR175.A.001 - Black LoPro® Connect 7-in-1
Low Profile RV Antenna with GPS, 2x 5G MIMO, 2x Wi-Fi® and TV & Radio

• MAR180.A/W.001 - Black/White LoPro® Connect 8-in-1
Low Profile RV Antenna with GPS, 4x 5G MIMO, 2x Wi-Fi® and TV & Radio

LoPro Series Antenna white and black version Image

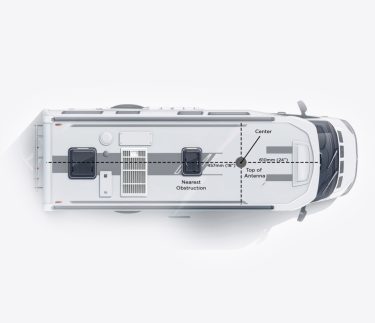

Mounting Location

Prior to mounting the Taoglas LoPro® antenna, determine the location of the antenna on the roof of the vehicle. Ensure that no obstructions are located within an 18 - 24” envelope around the antenna, see Fig. 1. Ensure that the location for the antenna that meets the following requirements:

• The vehicle roof surface is clean of grease and dirt and can support a secure installation.
• Keep a minimum clearance distance of 24 inches from center of antenna to front of the vehicle.
• Keep a minimum clearance distance of 18 inches from center of antenna to nearest obstruction and to the edge of the roof.

Notes:

• Obstructions can reduce the performance of the antenna.
• Do not overtighten the mounting screws as this could cause the flange to crack.
• Do not attempt to install this system in the rain or under any wet conditions.
• Do not paint this antenna as it will void the warranty
LoPro best roof location

Antenna Features and Benefits

global coverage decorative image icon global coverage decorative image icon
Global Coverage

With precision positioning from GPS through to cellular antennas that cover all worldwide bands, the Taoglas LoPro® Series is a true global solution for the RV market.

Connectivity icon Connectivity icon white
Omnidirectional: 360° signal reception

The antennas for TV, radio, cellular and Wi-Fi® are all omnidirectional and will work regardless of the RV’s orientation without affecting performance.

Quality Standards & Policies icon Quality Standards & Policies white icon
Durable UV and weather resistant

The low profile enclosure is manufactured from robust, UV protected ABS ensuring it is able for the most demanding of environments, wherever you decide to take your RV.

1 of 3

Antenna Installation

Antenna Installation

1. Mount cover using size #6 or M4 large headed screws. Note: Do not use flat head screws.

2. There are nine 5 mm diameter mounting holes in the cover flange.

3. Seal the underside of the mounting flange with a high-quality sealant.

4. Center the cover over the cable access hole. A 50.8 mm (2”) diameter hole in the roof is recommended for cable access.

5. The cover is marked with ‘FRONT’ and ‘BACK’ markings to aid antenna installation.

6. The cover mounting flange is crowned to fit RV roofs. Align cover flange with roof crown direction.

7. RV Roof
LoPro antenna installation

Cable Routing

• All cables from the Taoglas LoPro® antenna are clearly labelled to ensure easy and accurate integration.

• Route the TV antenna cable from the indoor TV splitter to the designated TV connection on the Taoglas LoPro™ antenna.

• Connect the cellular, Wi-Fi, and GPS cables from the Taoglas LoPro® antenna to their corresponding ports on the gateway or router.

• Provide power to the router by connecting the appropriate power supply.

• Plug in the TV and power on the gateway/router to complete the setup.
Cable Routing graphic

Ceiling Plate Installation

1. Recommended Mounting Screws
Use No. 6 x 0.63” long (16 mm) Phillips flat head wood screws (No. 2 drive).

2. Recommended hold sizes for RV antenna wiring and ceiling plate mounting

3. Main Hole Diameter: Ø1.5” (38mm)
Note: This hole should be centered directly beneath the RV roof antenna.

Drill Bit Sizes for Pilot Holes:

• Softwood: 1/16” (1.6mm)
• Hardwood: 5/64” (2mm)

4.Cable Management Feature
The ceiling cap includes an internal hook designed to secure cables with a zip-tie, minimizing movement and protecting connections during travel.
Ceiling Plate graphic

Know more about the Antennas Warranty & Return Policy

Know More

Router Installation

What’s in the box?

Your router comes with everything you need for a seamless installation and connection:

• 4G or 5G cellular router (attached to metal mounting bracket)
• Snap-on plastic mounting plate cover (1)
• Activated, pre-installed T-Mobile SIM card (1)
• Pre-attached Wi-Fi® antennas (2)
• Size 8 x .75” Phillips pan head screws (5)
• Barrel to 4-pin power adapter (1)
• QR code sticker for activation (1)
• QSG (Quick Start Guide)
What’s in the box?

Router Introduction

Your new 4G or 5G cellular router gives you the connectivity speed you need - up to 3.4 GBps - and backward compatibility with 3G/2G or 4G, which means you have more than one way to get a strong connection on the road.

Your cellular router operates over the cellular network and requires a strong signal to the network provider’s cellular towers to achieve optimal data throughput speeds. Connection to the cellular networks is variable, and highly dependent on the router’s ability to connect to the cellular towers. Topography, weather, and distance from the cellular towers all play an impact on the cellular router’s ability to transmit data. These are important factors that should be considered when establishing a connection.
4G-5G Router

5G Router

This dual-SIM multi-network router delivers 5G mobile connectivity for high-speed, data-intensive applications. Equipped with five Gigabit Ethernet ports and dual-band Wi-Fi, it ensures reliable performance with auto-failover for connection redundancy. Its backward compatibility and multiple interfaces provide flexibility for long-term expansion and upgrades.
5G Router layout

4G Router

This future-proof dual-modem router is designed to bridge the gap between legacy and next-generation networks. With integrated 4G Cat 4 modems, it maintains continuous operation through seamless fallback to 3G and 2G. Dual SIM and eSIM support ensure high-speed, uninterrupted connectivity, while load balancing, Wi-Fi, and five Gigabit Ethernet ports optimize performance. Industrial protocol support and versatile VPN options simplify complex IoT deployments, enabling rapid connectivity setup without the delays or risks of multi-device configurations.
4G Router layout

Activating Your Data Plan

Your router includes a pre-installed T-Mobile SIM card. Follow the steps below for easy activation so you can get connected to the internet:

• Look for the QR code on the sticker in your box. A duplicate sticker is also attached to the mounting plate containing your router.

• After locating the sticker, scan the QR code to activate your account and enroll in a data plan.

• While the account is activating, continue with the installation process, below
OptConnect webpage

Installing Your Router

For RVs with a pre-installed (rooftop) Taoglas LoPro® RV combination antenna:
The mounting bracket will secure the router to the ceiling of your RV just underneath the 3” round ceiling plate (which should be removed before router installation).

For RVs without a pre-installed rooftop antenna:
Contact an authorized RV dealer about antenna installation before proceeding. Refer to Taoglas LoPro® installation instructions in Section 1 for more details.

Installation Steps

1. Remove the screws securing the 3” ceiling plate. Remove ceiling plate, exposing access to antenna and router power cables. Carefully feed cables down through the access hole in the ceiling – these cables will attach to various points on your router.

2. Carefully separate power cable (typically, a white cable) from antenna cables. IMPORTANT: The pre-installed power cable will provide 12V DC to the cellular router. To avoid damaging the RV’s electrical system, disconnect the power source prior to installing your router. This can be done by turning off all breakers and disconnecting the RV from any outside power source. If necessary, contact an authorized RV dealer and/or certified electrician for professional installation.

3. According to manufacturer specifications, the power cable in the RV ceiling will either show wires at the end or will be looped (uncut). If the power cable is looped (with no visible plug or wires), consult your authorized RV manufacturer for installation guidance. If the power cable is already cut, continue to step 4.

4. Using the included 4-pin adapter, insert red (power) wire into socket pinout, as shown in the image. Insert black (ground) wire into adjacent pinout, followed by green (input) and white (output) wires.

Continue to Next Tab >>
RV Connector

Mounting Screw Marking

5. Before mounting the router to the ceiling, carefully feed excess cabling back into the hole in the ceiling.

6. The mounting bracket containing your cellular router should cover the ceiling cable hole in your RV. Specifically, position the small round opening in the bracket over the ceiling opening so the cabling can be pulled through the bracket upon installation.

7. While holding the bracket against the ceiling, use a pencil to mark the four keyhole locations as shown in the image. Carefully set aside the bracket and router while drilling test holes with a 5/64”bit. Insert screws, stopping approximately 1/4” away from the ceiling, below in Mounting Plat Screw Installation.

Continue to Next Tab >>
Diagram to show the antenna placement of an Antenna on an RV

Mounting Plat Screw Installation

8. Insert screws, stopping approximately 1/4” away from the ceiling, as seen in the Image

Continue to Next Tab >>
Diagram to show the antenna placement of an Antenna on an RV

Retention Screw Installation

9. Insert the mounting bracket over the four protruding screws. Fully tighten screws to firmly attach the bracket.

10. Pre-drill a 5/64” hole through the fifth hole in the metal mounting bracket (between two of the attached screws). Firmly install the final screw, which will prevent possible shifting of the bracket where screws have been installed in keyhole slots, see Image.

11. Ensure all cables (power/antenna) are pulled through the hole in the bracket. Attach 4-pin adapter to the power inlet on the front of the router.

12. Turn the power back on in your RV (via breakers in the pedestal or panel). Verify that power is reaching the cellular router by illuminated LED power and signal indicator lights.

Continue to Next Tab >>
Diagram to show the antenna placement of an Antenna on an RV

Cover Installation

13. Insert antenna cables into any of the 4 mobile antenna connectors on the back of your router.

14. Check signal strength via signal bars on the router.

15. Turn on the Wi-Fi®, enabled device you want to connect and scan for available wireless networks. It may take a few minutes for the “Taoglas - Powered by OptConnect” network to appear.

16. Using the label included in your box, look for the unique default SSID and password. Select this Wi-Fi® network from the list and enter the correct password to connect.

17. As needed, carefully adjust excess power/antenna cabling to fit neatly against the bracket. Snap the plastic cover in place over the router and metal mounting bracket, see the reference image.
Diagram to show the antenna placement of an Antenna on an RV
