Airvu BPF.24 2.4GHz Band Pass Filter

BPF.24.01

Frequency Range: 2400-2500MHz
Insertion Loss: <1.3 dB
Connectors: RP-SMA(M) Plug to RP-SMA(F) Jack
Dims: 35*10mm

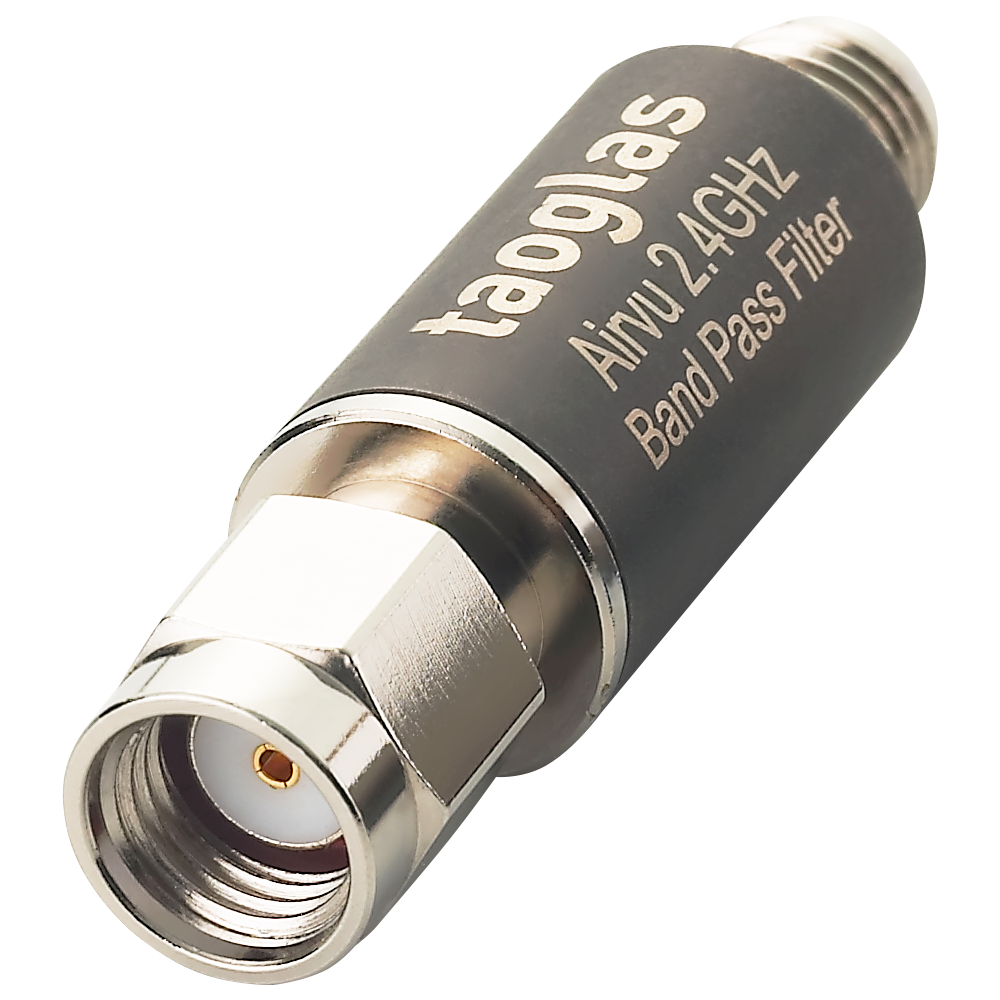

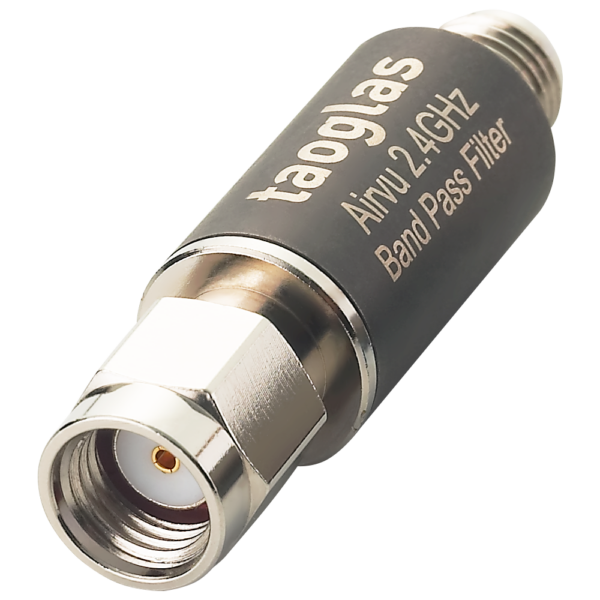

Image BPF.24.01

BPF.24.01

Airvu BPF.24 2.4GHz Band Pass Filter

Overview

The Airvu BPF.24 2.4GHz Band Pass Filter is placed on the end of the antenna port to help eliminate or reduce radio interference problems on UAVs and thus optimize radio system performance.

It does this in two ways
  1. It reduces out of band noise entering the receiver causing effects such as reduction of control range
  2. It reduces the antenna transmissions of out of band noise affecting other circuitry on your UAV (such as disrupting the GPS receiver leading to loss of fix, or a live video stream at 2.4 GHz)

The ceramic filter technology inside the BPF.24 has superior insertion loss and stopband performance than competing LTCC or lumped element filters, while also having good rejection at band edges. It uses a standard RP SMA(M) Plug to RP SMA(F) Jack interface, as most antennas at 2.4GHz have a RP SMA(M) connector. This filter is designed to be easily screwed onto this standard antenna SMA connector.

Technical Specification
Name Value
Series Airvu
Frequency 2400-2500MHz
Bandwidth 100MHz
Filter Type Band Pass
Impedance 50
Insertion Loss <1.3
Mounting Type Connector
Length (mm) 35
Width (mm) 10
Height (mm) 10
Weight (g) n/a
