A.60.3A21 – Direct Mount Miniature External GPS L1 Timing Antenna

A.60.3A21

High Gain – 30dB Gain
High Rejection
– 60dB between 1 – 1000MHz
– 40dB between 2000 – 6000MHz
Wide Input Voltage Range (1.8V to 12V)
Low Profile Permanent Mount Solution
Vandal Resistant PC/ABS, UV Stabilized Enclosure
IP67 Rated (When installed)
Connector: MCX Female
Dimensions: Ø: 44.3mm and Height: 13mm
RoHS and Reach Compliant

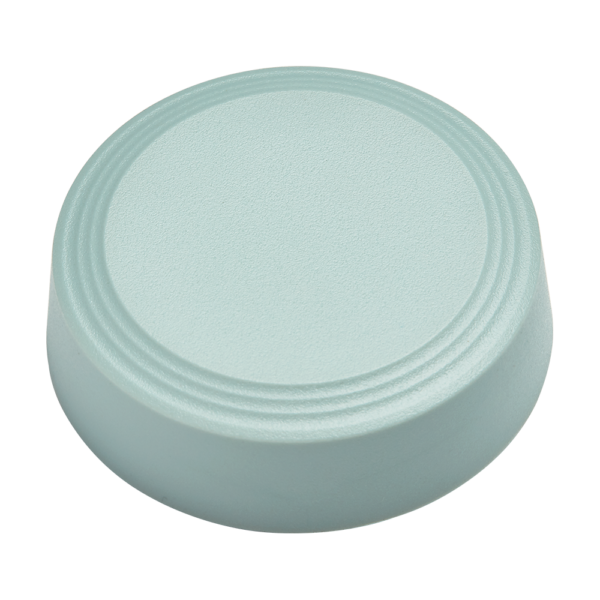

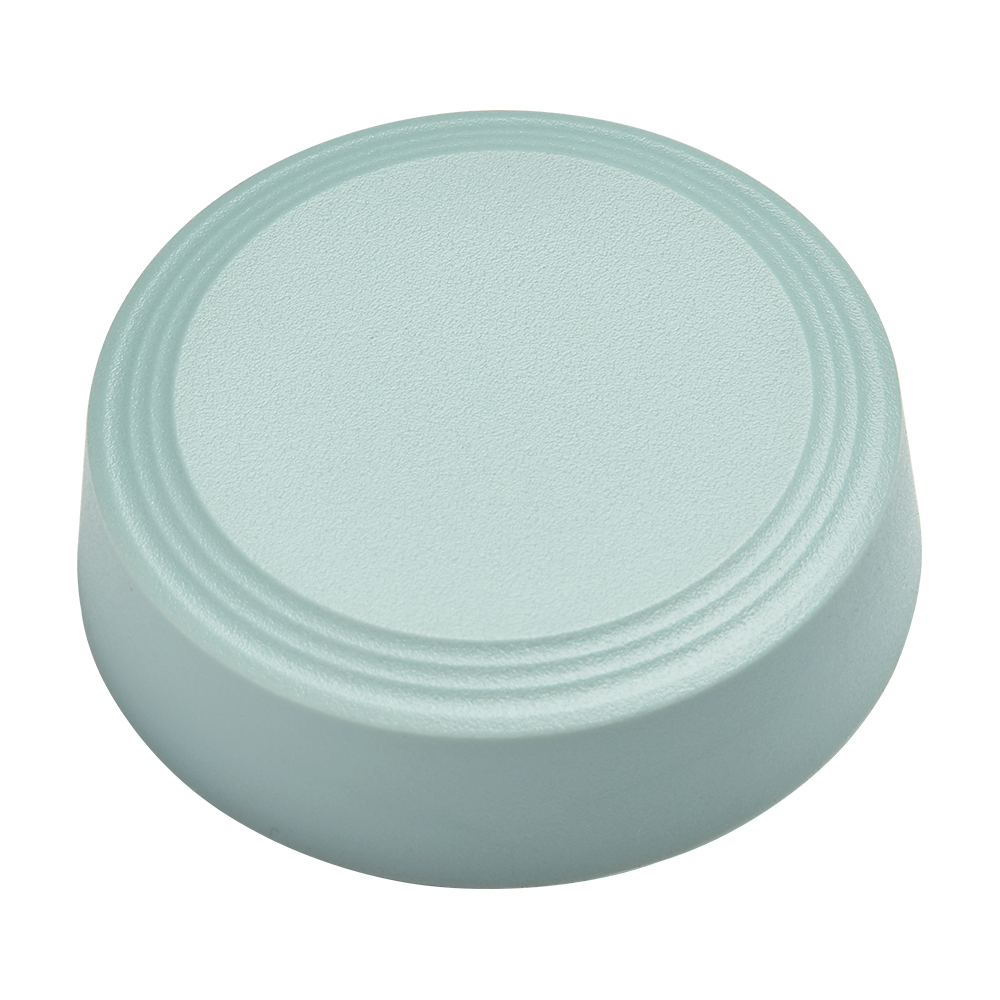

Image A.60.3A21

A.60.3A21

A.60.3A21 – Direct Mount Miniature External GPS L1 Timing Antenna

Overview
Direct Mount Miniature External GPS L1 Timing Antenna

The Taoglas A.60 is a high-performance, high-rejection active GPS (L1 – 1575.42MHz), external permanent mount antenna. It has a high gain of 30dB all enclosed in a rugged PC/ABS enclosure with a diameter of just 44.3mm and an extremely low height of 13mm. The small size and direct mounting making it a perfect solution for small-cell timing applications used in close proximity to Wi-Fi and other cellular transmitters.

The integrated filters feature very good rejection across all non-GPS frequencies to prevent overdriving or damaging your GPS receiver from nearby transmitters. At the commonly used LTE frequencies between 700MHz-850MHz, the A.60 features greater than 60 dB of rejection. Between 1700MHz-1910MHz, approximately 50 dB of rejection. Even with the very good out of band rejection, the A.60 maintains a very low noise figure of 2.0 dB at 1575.42 MHz. This low noise figure minimizes the overall signal degradation typically caused by losses in transmission lines.

The enclosure is IP67 rated and when mounted, making it ideal for use in harsh, humid, and wet environments. The enclosure is made from durable UV resistant PC, weighing 28g (1oz), making it extremely light and economical for shipping. The A.60 antenna has high efficiency of 63% and a system gain of 31.18dB.

Typical applications include:
  • Base Stations
  • Connected Enterprise
  • Navigation

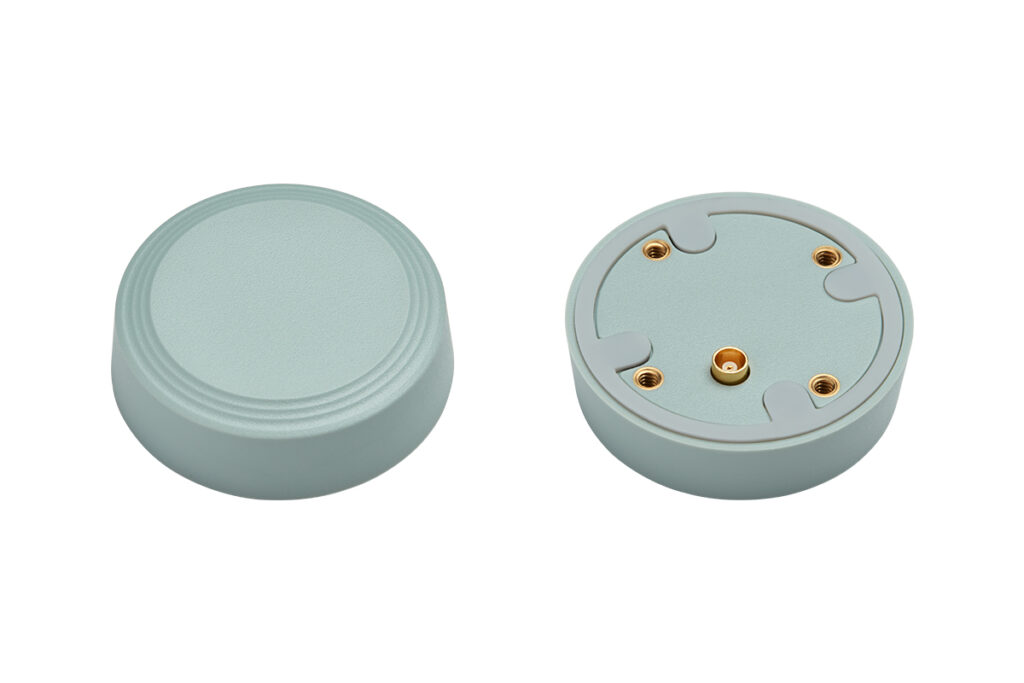

The A.60 comes with a direct mount MCX female connector and 4 x 4-40 UNC screw holes for ease of installation. For more information contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type MCX
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42-1610MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 31.18
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 44.3
Width (mm) 44.3
Height (mm) 13
Weight (g) 26
