Active Multiband L1, L5, L-Band GNSS High Precision Patch Antenna

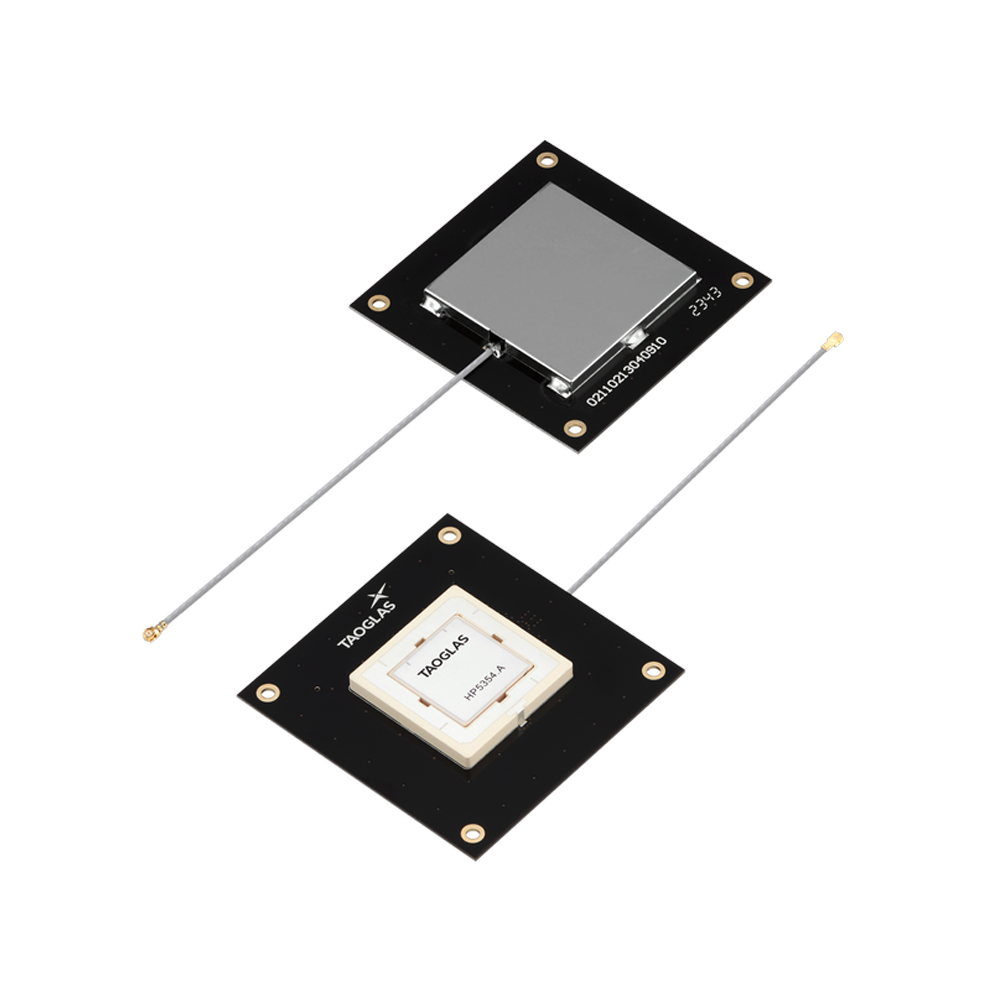

The Taoglas Inception Series AHP5354A, is a multi-band GNSS, high-performance directional antenna for high precision GPS and BeiDou accuracy and fast positioning. It is the active version of the successful HP5354 Inception ‘Patch within a Patch’. It utilizes the compact 35 x 35 x 10mm advanced wide-band ceramic patch antenna with optimized gain for GNSS bands. Bands covered include BeiDou (B1/B2a), GPS/QZSS (L1/L5), GLONASS (G1) and Galileo (E1/E5a).
Typical Applications Include:
- Wearables
- Transportation
- Precision Agriculture
- Navigation
- Robotics
- Autonomous Vehicles
The AHP5354A has been tuned and tested on a 70 x 70mm ground plane and exhibits excellent radiation patterns and tight axial ratio. The AHP5354A has been optimized to cover the bands required for the next generation of L1/L5 GNSS receivers that are currently on the market.
The AHP5354A has been designed to be a premium solution for high precision GNSS systems, by including the L5 Band for High Precision GNSS positioning. The active patch can be easily integrated into devices via the mounting holes on the corner of the PCB.
The AHP5354A comes with 100mm of 1.37 micro coax cable and an I-PEX® MHF-1 connector as standard but these are fully customizable to suit your specific application. For further information on how to integrate and test this antenna in your device please contact your regional Taoglas customer support team.
