Barracuda – 6dBi Gain 410MHz Omnidirectional Antenna


410-425MHz Coverage
Omni-Directional Radiation Pattern with 6dBi Peak Gain
Robust Fiberglass Housing Enclosure
IP67 Waterproof Rating
Wind resistant to 200kmph
Length: 1500mm
N-type Female Connector as Standard
Wall / Pole Mounting Bracket Included
RoHS & Reach Compliant

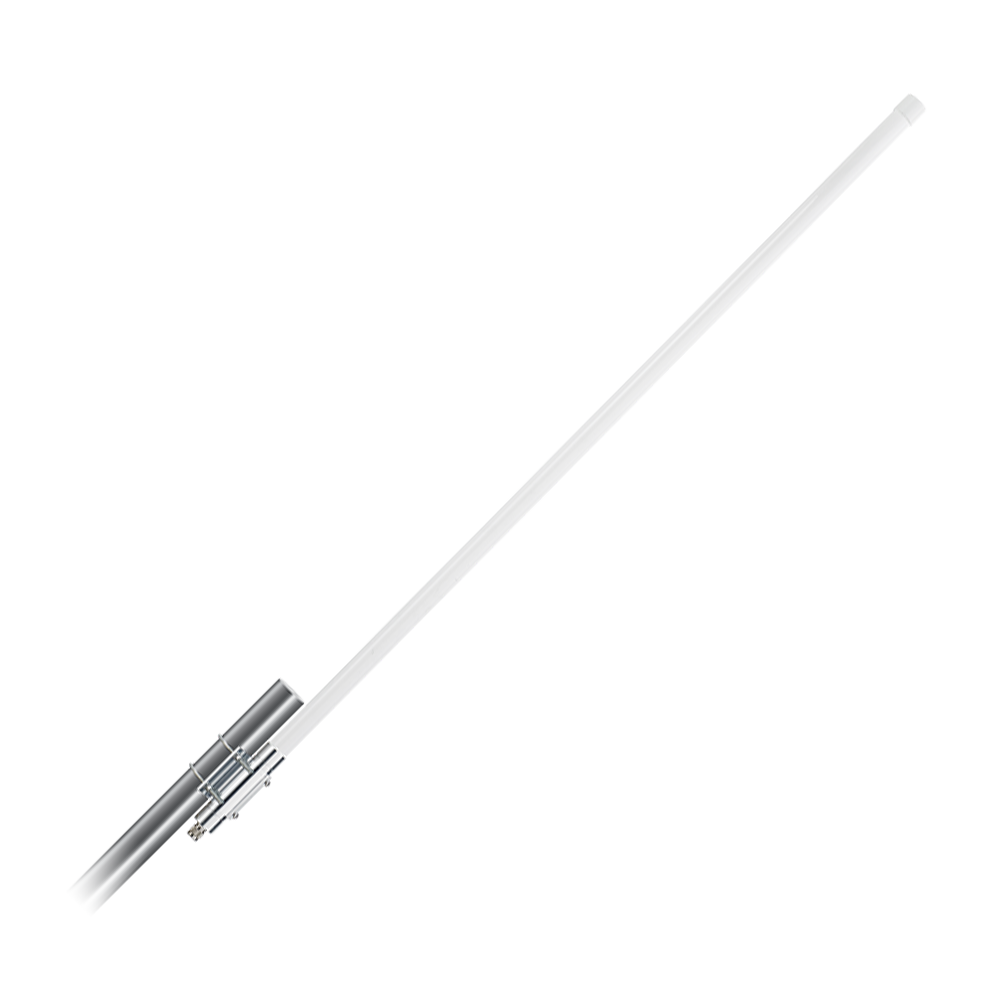

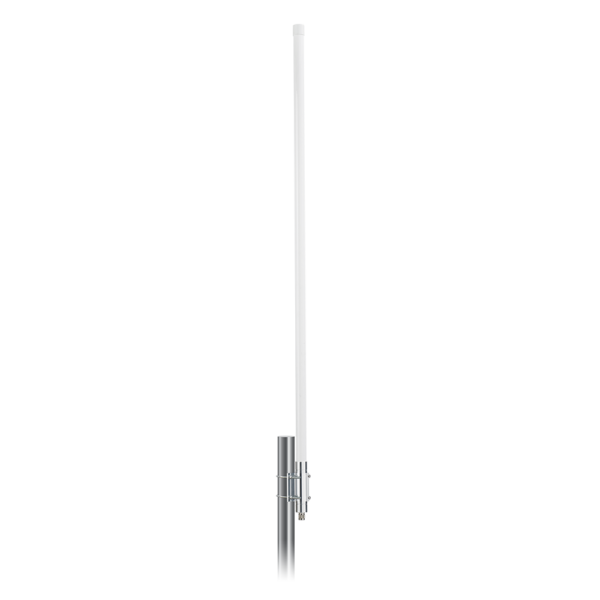

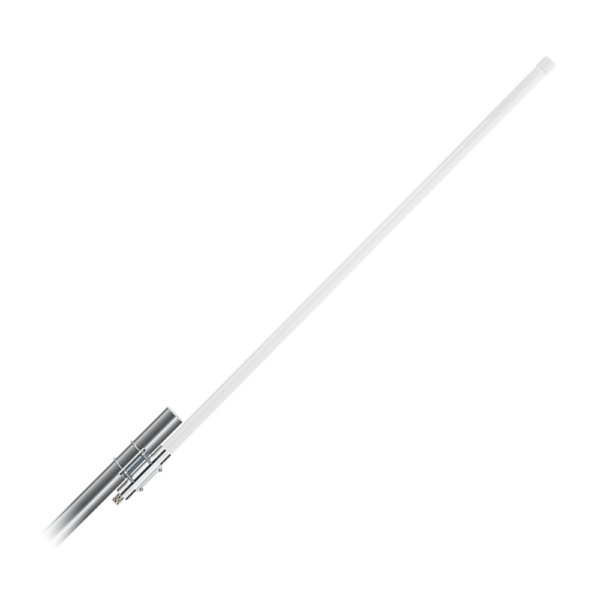

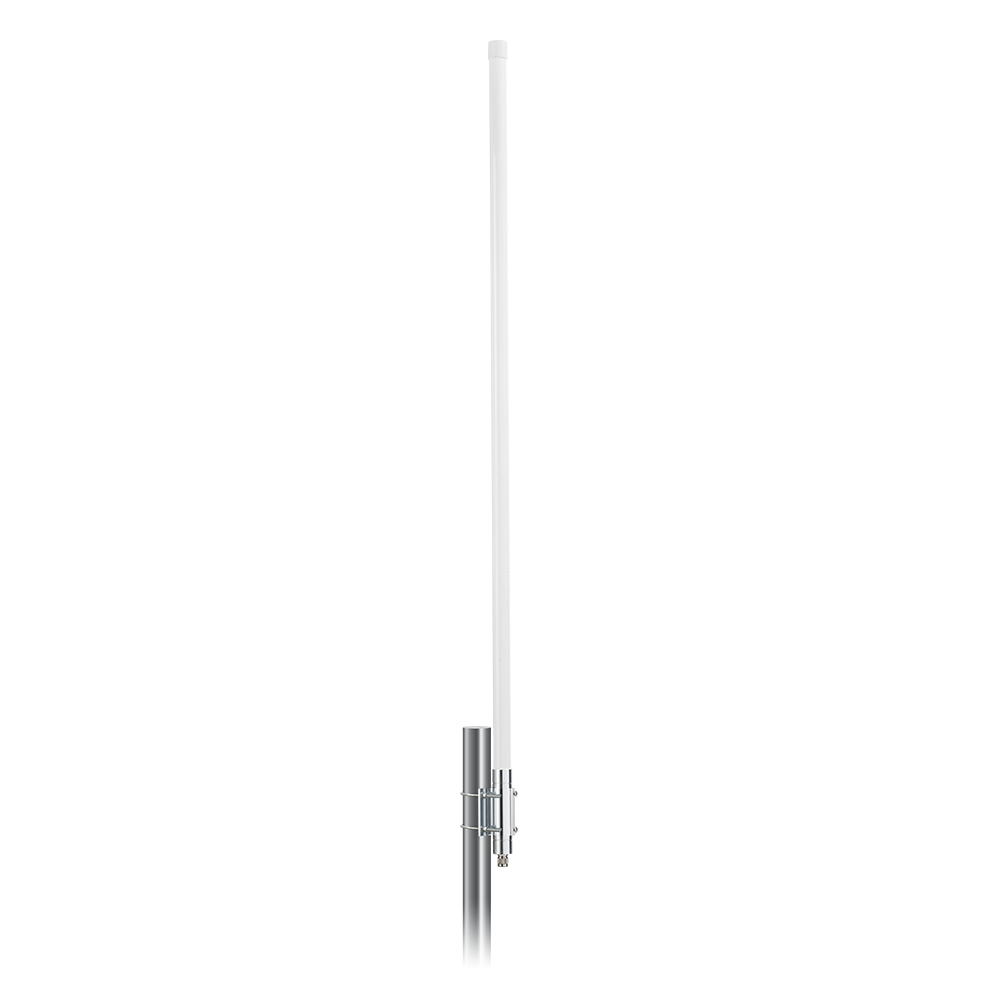

Image OMB.410.B06F21


Barracuda – 6dBi Gain 410MHz Omnidirectional Antenna


6dBi Gain 410MHz Omnidirectional Antenna

The OMB.410.B06F21 is a 6dBi gain, fiberglass omnidirectional outdoor antenna, which is designed to cover frequency bands from 410-425MHz. The antenna is designed for applications such as smart grid, smart metering, industrial/environmental monitoring, remote asset monitoring, and mesh network applications.

The OMB.410 operates in the newly awarded Smart Grid frequency band between 410-425MHz with a >6dBi peak gain across the band with an omnidirectional antenna radiation pattern in the azimuth providing excellent coverage over long distances. Coupled with a very low VSWR, this characteristic provides the best performance because the antenna gives maximum coverage range in the horizontal plane over 360 degrees, thus minimizing the number of nodes needed for a mesh network.

The UV resistant fiberglass housing enables the OMB antenna to be utilized in all kinds of harsh environments, making it more robust and safer than traditional whip antennas. It can be connected directly to the access point or telemetry unit or can be mounted on a wall or device surface via the N-type connector.

An industry standard N-type Female connector is used as standard but can be customized upon request and is subject to MOQ. Contact your regional Taoglas customer support team for details.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Vertical
Frequency Range 410MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tube, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 3
Length (mm) 70
Width (mm) 50
Height (mm) 523
Weight (g) 1300
