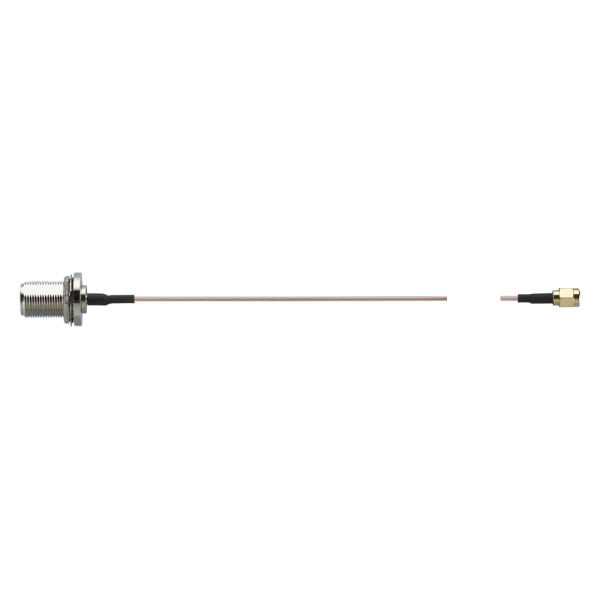

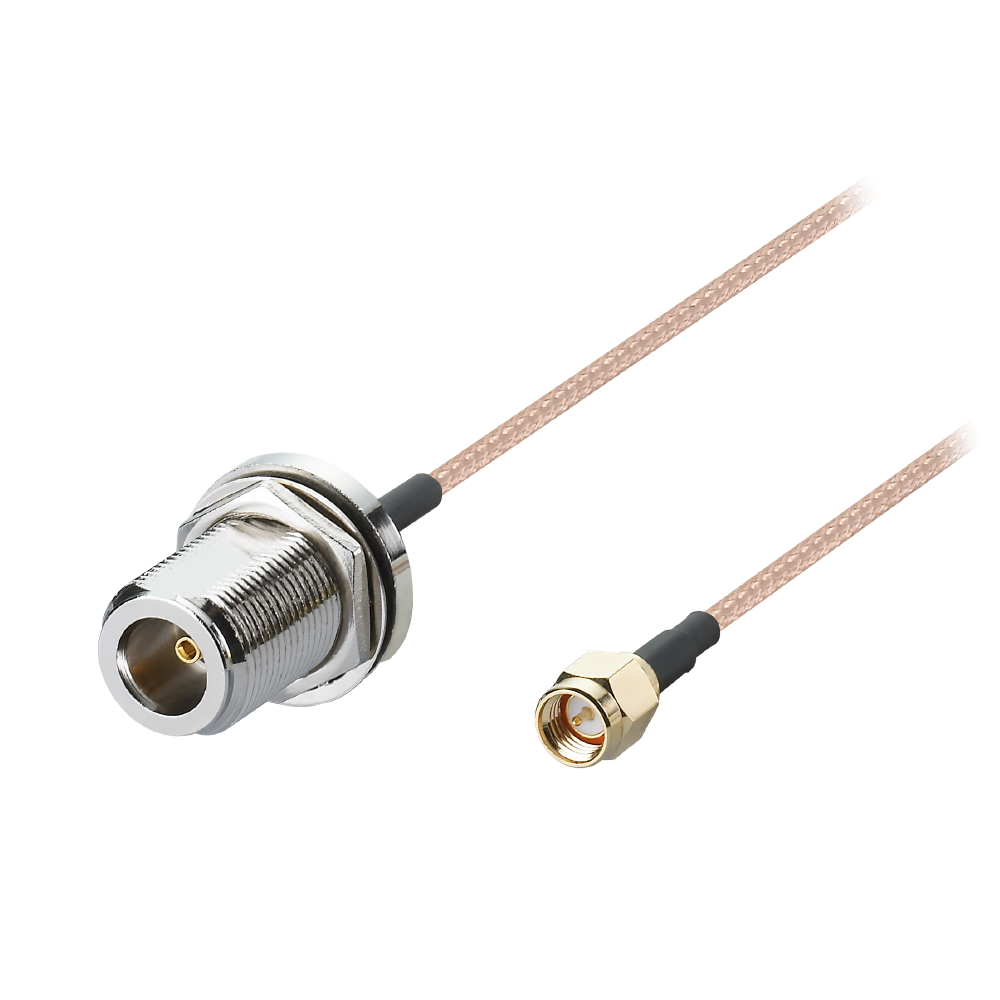

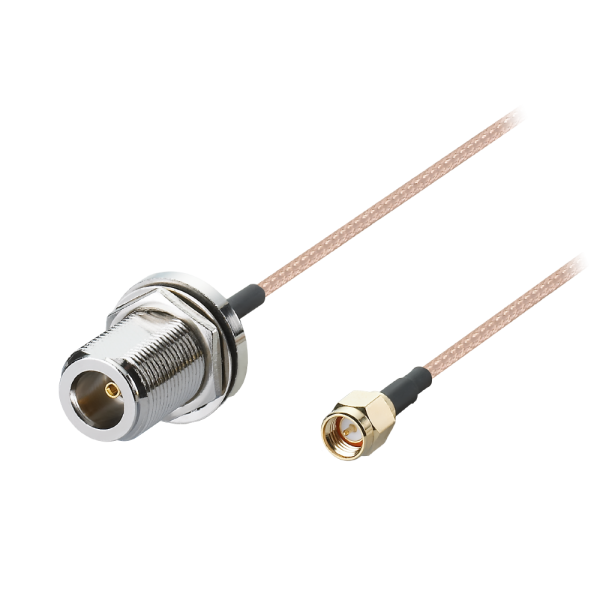

N type Jack with O-Ring to
SMA(M)ST Plug
RG-316 Cable – 3.28ft(1000mm)
Orientation: Straight-Straight
CAB.951 N Type Jack with O-Ring to 1000mm(3.28ft) RG-316 to SMA(M)
CAB.951
CAB.951
CAB.951 N Type Jack with O-Ring to 1000mm(3.28ft) RG-316 to SMA(M)
Technical Specification
| Name | Value |
|---|---|
| Cable | RG-316 |
| Length (mm) | 1000 |
| Connector 1 | N Type |
| Connector 1 Orientation | Straight |
| Connector 1 Polarity | Normal |
| Connector 1 Gender | F |
| Connector 1 Material | Nickel |
| Connector 2 | SMA |
| Connector 2 Gender | M |
| Connector 2 Orientation | Straight |
| Connector 2 Polarity | Normal |
| Connector 2 Material | Gold |
