TD.95.6H31G – Gray Blade 868/915MHz Omnidirectional Dipole Terminal Mount Antenna


Covers Sigfox/LoRA/ISM Frequencies: 868 and 915 MHz
Mechanically Robust for Indoor/Outdoor Applications
Omnidirectional Dipole (Ground Plane Independent) Antenna
Gray PC/ABS Enclosure
Connector: N-Type Male Connector
Dimensions: 228*Ø22.8mm
RoHS & Reach Compliant

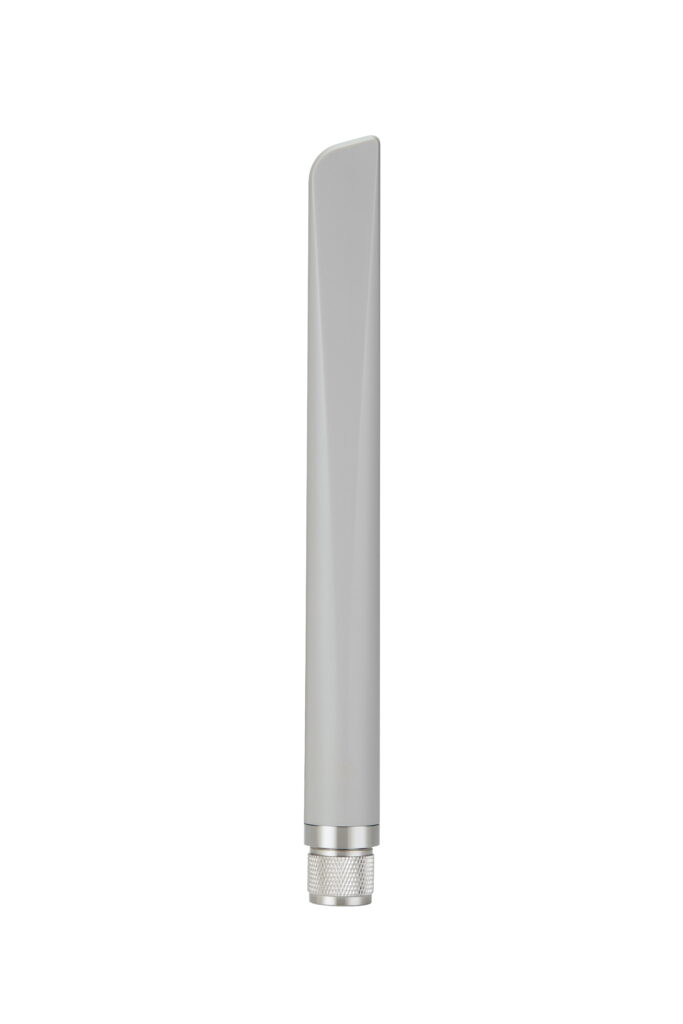

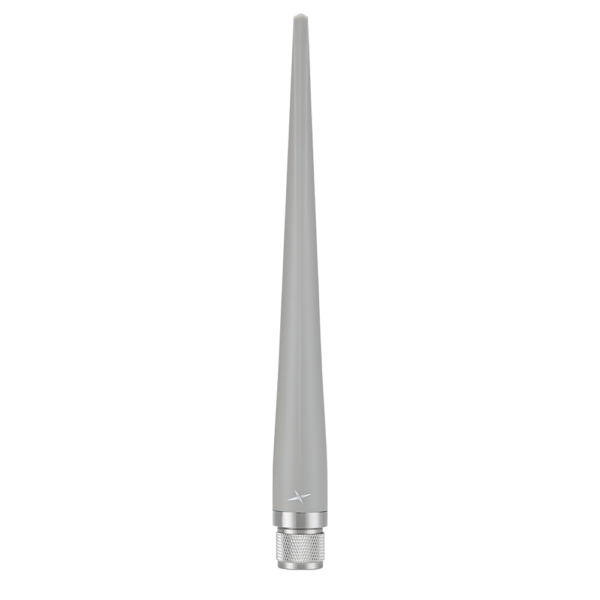

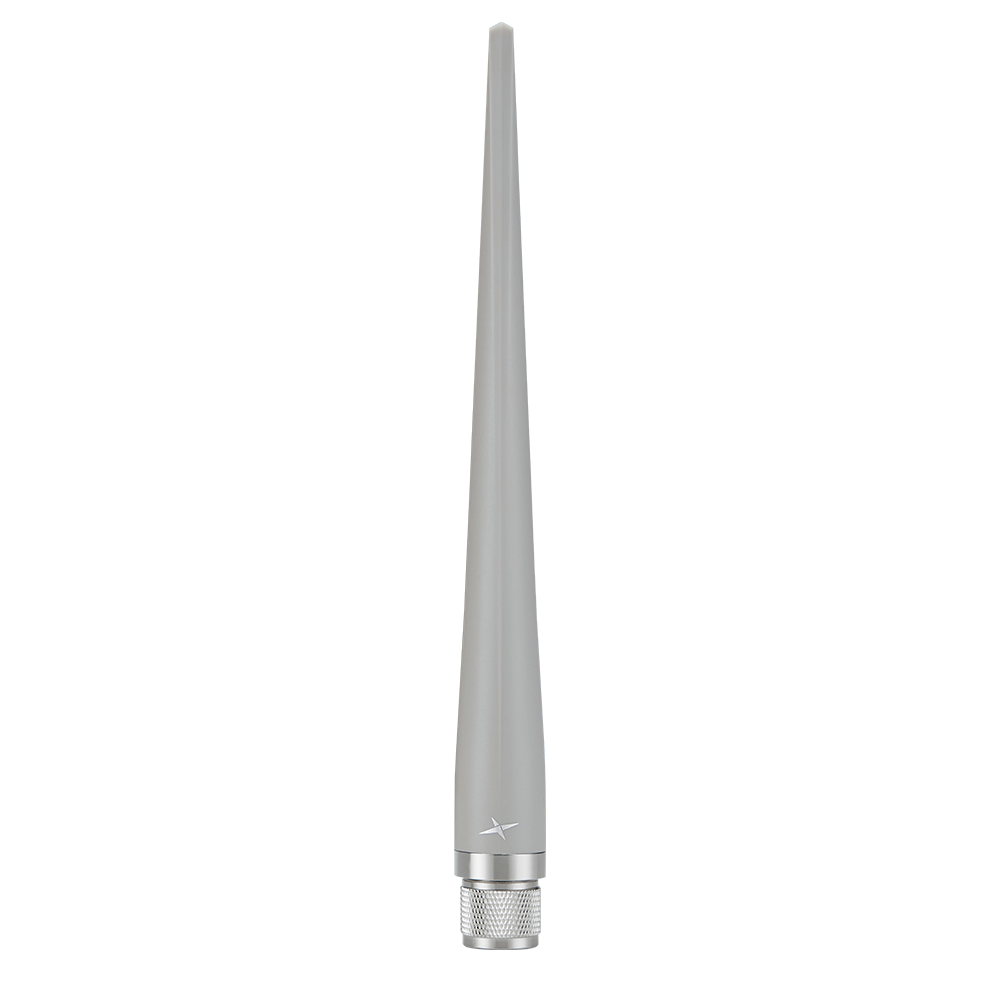

Image TD.95.6H31G


TD.95.6H31G – Gray Blade 868/915MHz Omnidirectional Dipole Terminal Mount Antenna


Blade 868/915MHz Omnidirectional Dipole Terminal Mount Antenna

The Taoglas Blade TD.95.6H31G is a high performance, terminal mount omnidirectional dipole antenna, designed for use with a multiple of SigFox / LoRA / ISM network applications. It covers both widely used frequencies of 868 and 915MHz. The TD.95 uses a robust IP67 rated PC/ABS enclosure, making it ideal for harsh outdoor applications. The TD.95 is a dipole antenna which means that this antenna performs well without a ground plane. It reaches efficiencies of at least 57% with 1dBi Gain whilst maintaining an Omni-directional pattern for constant reception/transmission.

Typical Applications Include:
– Remote Asset and Metering Monitoring
– Mesh Networks
– Digital Signage

Measuring just 228mm in height and with a diameter of just 22.8mm, the TD.95 is also available in black, TD.95.6H31, for more inconspicuous installation. The TD.95 antenna is supplied with a direct mount N-Type connector, however, this can be customized subject to MOQ and NRE. For further information regarding customization or installation of this antenna, please contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Linear
Frequency Range 860-928MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 2
Length (mm) 22.8
Width (mm) 22.8
Height (mm) 228
Weight (g) 70
