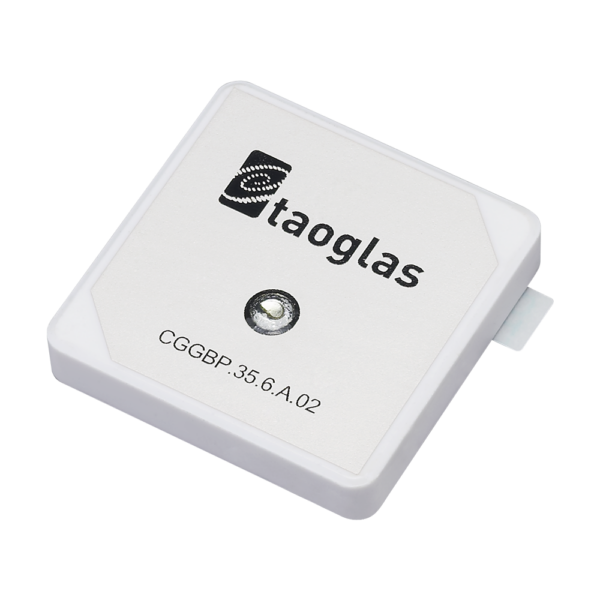

CGGBP.35.6.A.02 35*35*6.5mm GPS/GLONASS/Galileo/BeiDou Patch Antenna

CGGBP.35.6.A.02

Passive GPS/GLONASS/GALILEO/BeiDou Patch Antenna
BeiDou 1561MHz / GPS-GALILEO 1575MHz / GLONASS 1602MHz
Gain BeiDou 4.5dBi / GPS-GALILEO 3.0dBi / GLONASS 4.5dBi
Mounted with pin and adhesive tape
Automotive TS16949 Production and Quality Approved
Dims: 35*35*6.5mm

Image CGGBP.35.6.A.02

CGGBP.35.6.A.02

CGGBP.35.6.A.02 35*35*6.5mm GPS/GLONASS/Galileo/BeiDou Patch Antenna

Overview

This 35mm square ceramic GPS/GLONASS/GALILEO/BeiDou patch antenna’s wide band of operation leads to excellent gain and radiation pattern stability on all three GNSS system bands. Compared to using a smaller antenna, this will translate into the GNSS system having much higher location accuracy, improved reliability of lock in urban areas, better signal reception, with more satellites acquired and a quicker time to first fix. The patch is mounted via pin and double-sided adhesive.

Technical Specification
Name Value
RoHS Yes
Antenna Type GNSS
Mechanical Style Patch
Gain 2
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Connector
Antenna Connector Type None
Cable Type None
Connector Body Style Straight
Polarity RHCP
Frequency Range 1561MHz To 1602MHz
Connector Polarity Normal
Packaging Tray, Box, Carton
VSWR 2:1
GNSS Bands Single Band
Length (mm) 35
Width (mm) 35
Height (mm) 6.5
Weight (g) 29
Image CGGBP.35.6.A.02

CGGBP.35.6.A.02
