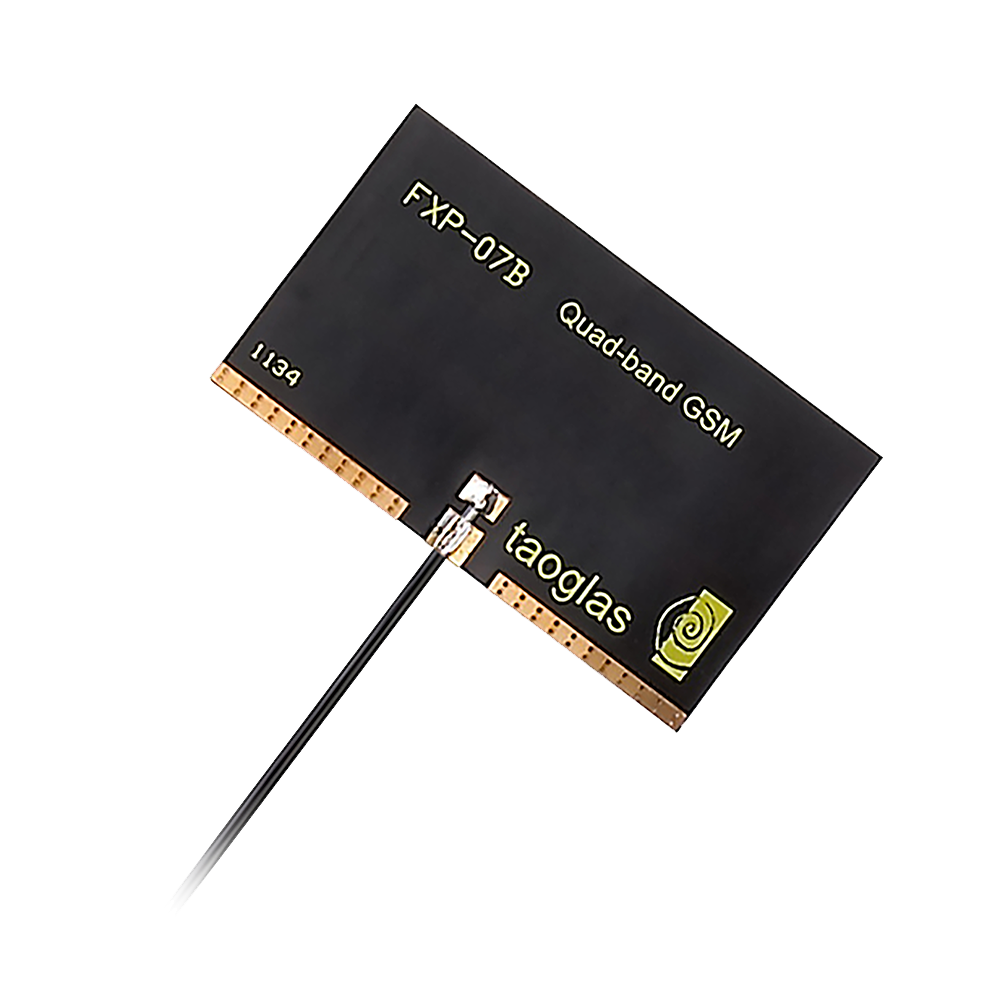

FXP07B 3G/2G Cellular Flexible PCB with solder pads, 100mm Ø1.13, I-PEX MHF® I
FXP07.B.07.0100APenta-Band Cellular Flexible PCB
850/900/1800/1900/2100MHz
I-PEX MHF® I Connector – 100mm Ø1.13 cable
For Adhesive or Solder Mount
Dims: 41*24*0.1mm
FXP07.B.07.0100A
FXP07B 3G/2G Cellular Flexible PCB with solder pads, 100mm Ø1.13, I-PEX MHF® I
Technical Specification
| Name | Value |
|---|---|
| RoHS | Yes |
| Antenna Type | Embedded Antennas, Cellular |
| Mechanical Style | Flex PCB |
| Gain (Max) | 1 |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | I-PEX MHFI |
| Cable Type | 1.13 Coax |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 100 |
| Packaging | Carton |
| VSWR | 0 |
| Length (mm) | 41 |
| Width (mm) | 24 |
| Height (mm) | 0.1 |
| Weight (g) | 13 |
