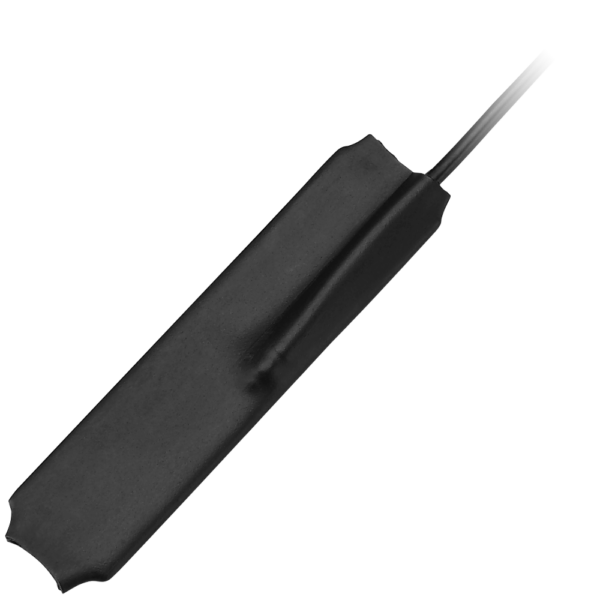

The GSA.8830 Penta-band I-Bar antenna is flexible and robust. Its slim-line design encased in waterproof heat-shrink material allows for covert and convenient installation in automotive vehicles. Omni-directional gain across all bands ensures constant reception and transmission. With its unique dipole design, the GSA.8830 has exceptional industry performance characteristics considering its very low profile at 4.6mm and has a compact size 90mm*20.8mm. It’s suitable for customers that appreciate the highest performance at a lower price. This antenna is designed and tuned to be mounted on glass or plastic (not on metal). Cable lengths and connectors are fully customizable.
GSA.8830 3G/2G Cellular Adhesive Antenna, 2m RG174
GSA.8830.A.201111Penta-band Cellular Heat-Shrink Wrapped I-Bar Adhesive Antenna
GSM/CDMA/PCS/DCS/UMTS/WCDMA
850/900/1800/1900/2100MHz
2M RG-174 SMA(M)
Dimensions: 90*21*5mm
Low Profile Solution (Internal PCB IP67)
GSA.8830.A.201111
GSA.8830 3G/2G Cellular Adhesive Antenna, 2m RG174
Overview
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | External Antennas, Cellular |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 700-3000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 2000 |
| Packaging | PE Bag, Carton |
| VSWR | 0 |
| IP Rating | IP67 |
| RoHS | Yes |
| Gain (Max) | 2.43 |
| Length (mm) | 90 |
| Width (mm) | 20.8 |
| Height (mm) | 4.6 |
| Weight (g) | 41 |
